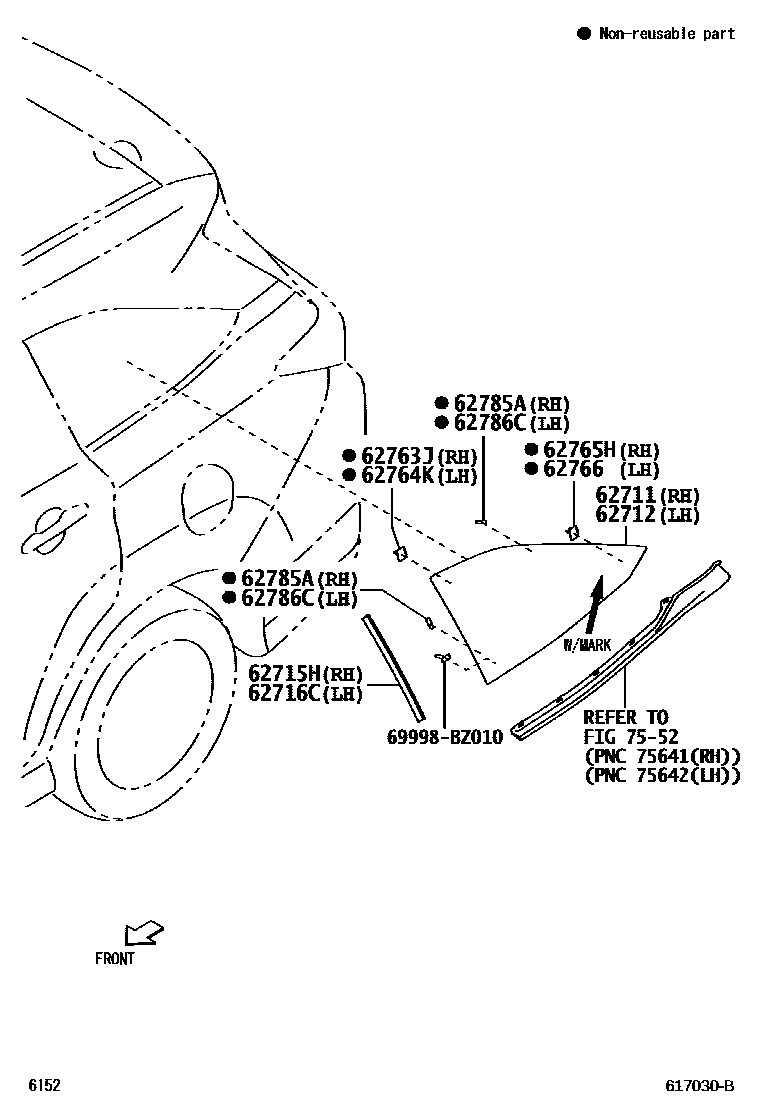

SIDE WINDOW

62711GLASS, QUARTER WINDOW, RH

main62711-BZ350iW100,101..GCC,GEN,IDN,MXC,PHL,THAI202111

ASAHIMAS

main62711-BZ430iW100,101..GCC,GEN,IDN,MXC,PHL,THAI202111

MULIA GLASS

main62711-BZ520iW101..VN202212

62712GLASS, QUARTER WINDOW, LH

main62712-BZ350iW100,101..GCC,GEN,IDN,MXC,PHL,THAI202111

ASAHIMAS

main62712-BZ430iW100,101..GCC,GEN,IDN,MXC,PHL,THAI202111

MULIA GLASS

main62712-BZ520iW101..VN202212

62715HDAM, QUARTER WINDOW GLASS ADHESIVE, RH

main62715-BZ040iW100,101202111

62716CDAM, QUARTER WINDOW GLASS ADHESIVE, LH

main62715-BZ040iW100,101202111

62763JRETAINER, QUARTER WINDOW GLASS, UPPER

main62763-BZ060iW100,101202111

62764KRETAINER, QUARTER WINDOW GLASS, UPPER

main62764-BZ060iW100,101202111

62765HRETAINER, QUARTER WINDOW GLASS, LOWER

main62765-BZ040iW100,101202111

62766RETAINER, QUARTER WINDOW GLASS, LOWER LH

main62766-BZ040iW100,101202111

62785ASPACER, QUARTER WINDOW GLASS

main64818-BZ010×2iW100,101202111

sub64818-87704

62786CSPACER, QUARTER WINDOW GLASS, LH

main64818-BZ010×2iW100,101202111

sub64818-87704

7552

69998BZ010PIN, QUARTER WINDOW GUIDE PIECE, NO.1

main69998-BZ010

12 parts on this diagram · 1 diagram in section
