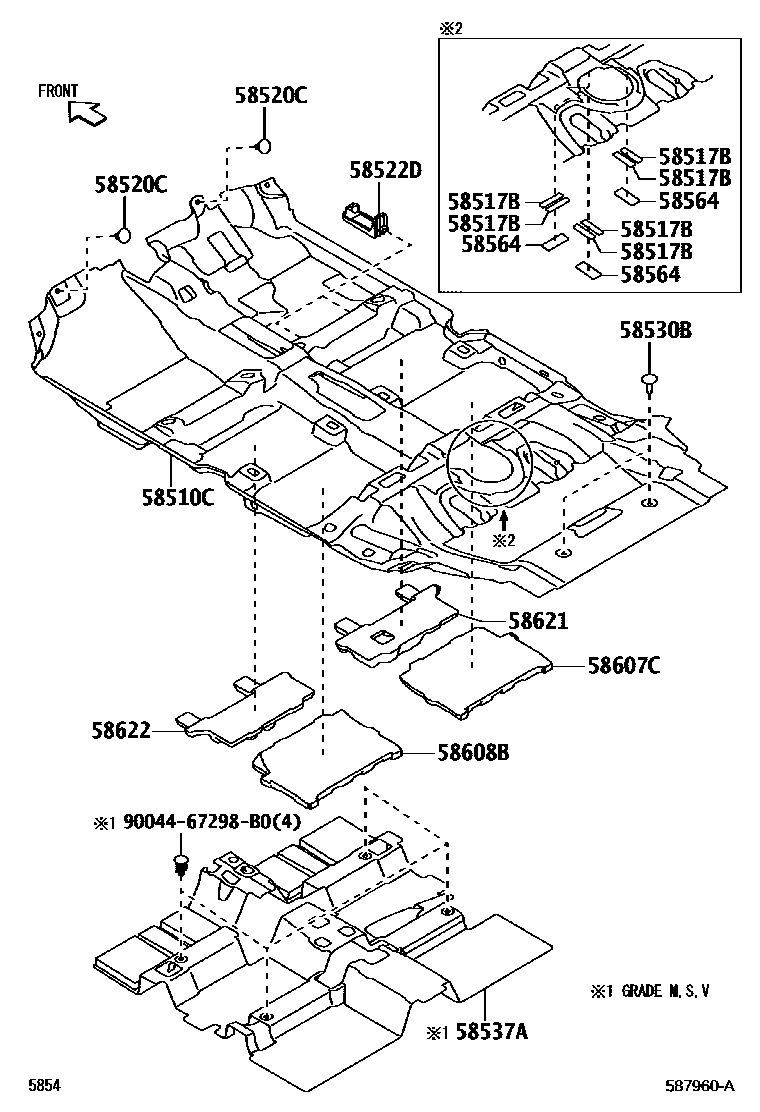

FLOOR MAT & SILENCER PAD

0001 1FLOOR CARPET 0002 1FLOOR CARPET 0003 1FLOOR CARPET 0004 1FLOOR MAT

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58051-BZ270-B0iW100..5F..IDN202111

DK.GRAY,TRIM2#

main58051-BZ290-B0iW101..5F..M..IDN202111

BRUNEI,DK.GRAY,TRIM2#

main58051-BZ300-B0iW101..CVT..(M,V)..IDN202111

RHD GENERAL EXP,DK.GRAY,TRIM2#

main58510-BY530-B0iW101..RHD..(GEN,THAI)202201

DK.GRAY,TRIM2#

main58510-BY770-B0iW101..GCC202212

DK.GRAY,TRIM2#

main58510-BY850-B0iW101..VN202309

DK.GRAY,TRIM2#,W/PART NUMBER LABEL

main58510-BZV70-B0iW100,101..LHD..(GEN,MXC,PHL)202201

DK.GRAY,TRIM2#,W/PART NUMBER LABEL

main58510-BY520-B0supersedes 58051-BZ280-B0iW100..CVT..IDN202111-202211

RHD GENERAL EXP,DK.GRAY,TRIM2#

main58510-BY521-B0supersedes 58051-BZ280-B0iW100..CVT..IDN202212

RHD GENERAL EXP,DK.GRAY,TRIM2#

58517BCARPET, REAR FLOOR

main58503-BZ030×6iW100,101202111

58520CCLIP(FOR FRONT FLOOR CARPET)

main9004A-46131-C1×2iW100,101202111

BLACK,TRIM2#

58522DHOOK, FLOOR CARPET, NO.2

main58522-52030×2iW100,101202111

58530BCLIP(FOR FRONT FLOOR CARPET)

main90044-68046-C2×2iW100,101202111

BLACK,TRIM2#

58537ASILENCER, FRONT FLOOR, NO.1

main58563-BZ030iW101..GCC202212

main58563-BZ100iW10#..LHD202201-202209

W/LABEL

main58563-BZ101iW100..LHD;W101..GEN,IDN,MXC,PHL,THAI202210

main58563-BZ140iW101..VN202309

W/O LABEL

58564CARPET, REAR FLOOR

main58503-BZ040×3iW100,101202111

58607CPAD SUB-ASSY, FRONT FLOOR SILENCER, REAR RH

main58065-BZ050iW101;W100..LHD202111

main58065-BZ060iW100..IDN202111

58608BPAD SUB-ASSY, FRONT FLOOR SILENCER, REAR LH

main58066-BZ050iW101;W100..LHD202111

main58066-BZ060iW100..IDN202111

58621PAD, FLOOR SILENCER, FRONT RH

main58607-BZ010iW100..IDN202111

main58607-BZ020iW101..5F..PHL202111-202309

58622PAD, FLOOR SILENCER, FRONT LH

main58608-BZ010iW100..IDN202111

main58608-BZ020iW100..LHD;W101..CVT..PHL;W101..GCC,GEN,IDN,MXC,THAI,VN202111

9004467298B0

main90044-67298B0

12 parts on this diagram · 4 diagrams in section
