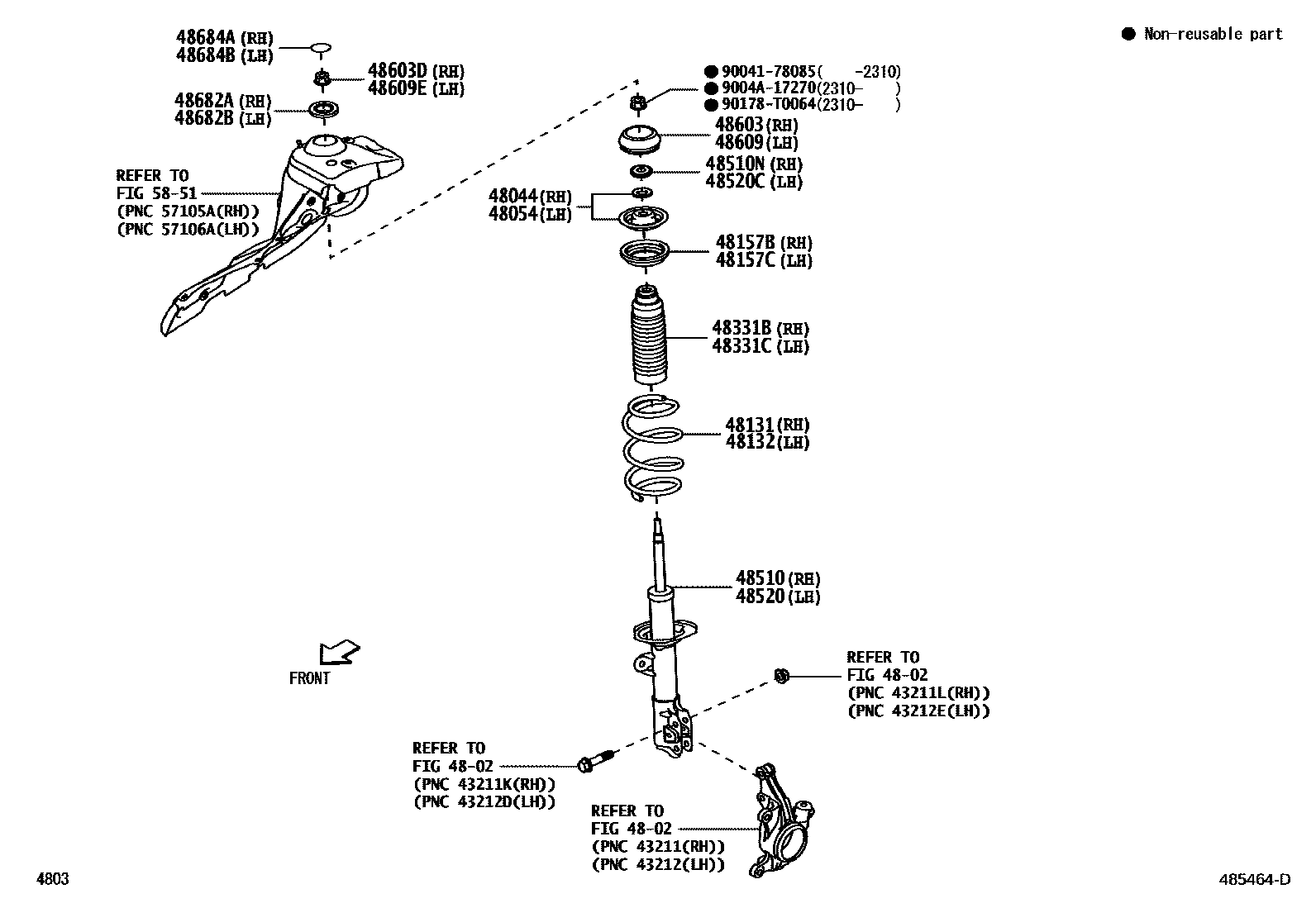

FRONT SPRING & SHOCK ABSORBER
4802
48044SEAT SUB-ASSY, FRONT SPRING, NO.1
48054SEAT SUB-ASSY, FRONT SPRING, NO.2
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48331BBUMPER, FRONT SPRING, RH
48331CBUMPER, FRONT SPRING, LH
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-BZE50
MARK 48510-BZE60
48510NBUSH(FOR FRONT SHOCK ABSORBER RH)
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48520-BZA80
MARK 48520-BZA90
48520CBUSH(FOR FRONT SHOCK ABSORBER LH)
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
##
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
##
48682ASUPPORT, FRONT SUSPENSION, NO.2 RH
48682BSUPPORT, FRONT SUSPENSION, NO.2 LH
48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH
48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH
5851
9004178085
main90041-78085
9004A17270
main9004A-17270
90178T0064
main90178-T0064
25 parts on this diagram · 2 diagrams in section
