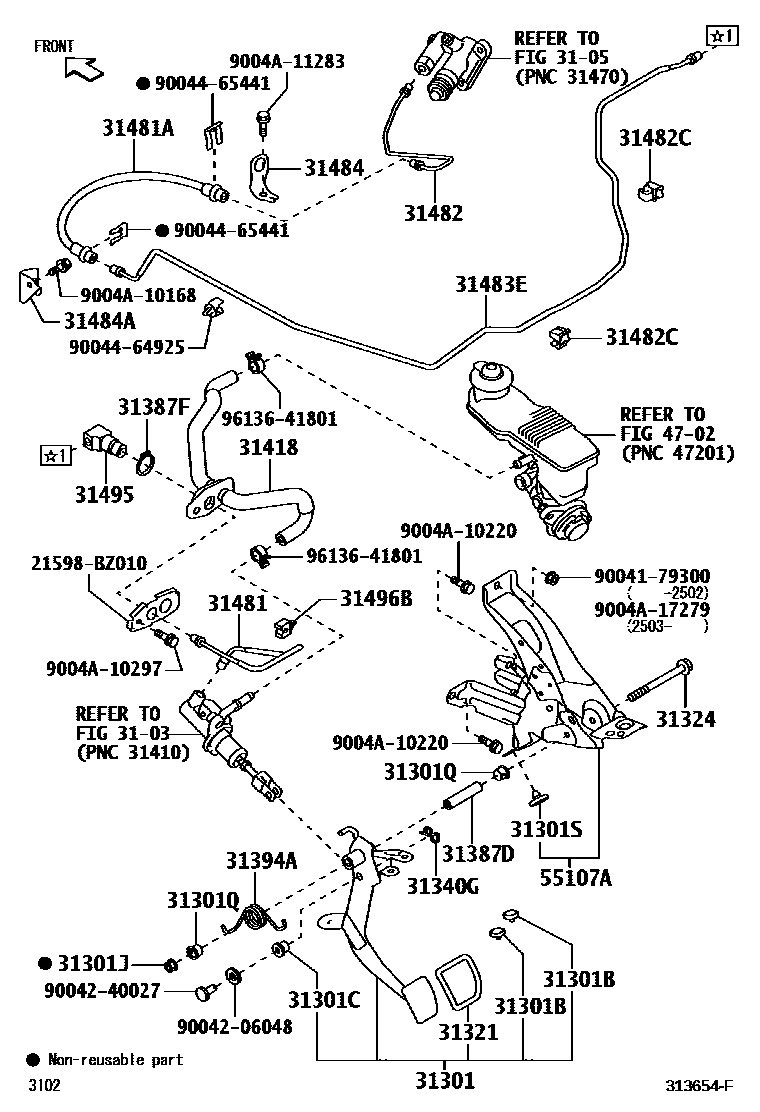

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1RHD 0002 1LHD

3103

3105

31301PEDAL SUB-ASSY, CLUTCH

main31310-BZ340iW100,101..5F..IDN202111

main31310-BZ500iW101..5F..PHL202201-202309

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main9004A-54003iW101..5F..PHL202111-202309

31301CBUSH(FOR CLUTCH PEDAL)

main90043-86123iW100..5F;W101..5F..(GEN,IDN,MXC,VN)202111-202309

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main9004A-17260iW100,101..5F202111

31301QBUSH(FOR CLUTCH PEDAL SPRING)

main9004A-38094iW100,101..5F202111

31301SCUSHION, NO.2(FOR CLUTCH PEDAL)

main90045-40158iW101..5F..PHL202111-202309

31321PAD, CLUTCH PEDAL

main47121-BZ080iW100,101..5F202111-202412

sub47121-BZ081

main47121-BZ081iW100,101..5F202501

31324SHAFT, CLUTCH PEDAL

main9004A-10281iW100,101..5F202111

31340GCLIP(FOR CLUTCH RELEASE CABLE)

main90044-68076iW100,101..5F202111

31387DSPACER(FOR CLUTCH RELEASE SECTOR)

main9004A-56112iW100,101..5F202111

31387FRING, SNAP

main96150-01800iW101..5F..PHL202111-202309

31394ASPRING, PEDAL W/HOOK

main31394-BZ170iW101..5F..PHL202111-202309

31418HOSE, CLUTCH

main47240-BZ030iW100,101..5F..IDN202111

main47240-BZ040iW101..5F..PHL202201-202309

31481TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE

main31482-BZ220iW100,101..5F..IDN202111

main31482-BZ290iW101..5F..PHL202201-202309

31481AHOSE, CLUTCH, NO.1

main90049-22313iW10#..5F202111-202302

main9004A-94160iW100,101..5F202303

31482TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE

main31482-BZ280iW101..5F..PHL202111-202309

31482CCLAMP(FOR CLUTCH TUBE)

main47372-B2040iW100,101..5F..IDN202111-202309

31483ETUBE, BLEEDER CLUTCH RELEASE

main31482-BZ300iW100,101..5F..IDN202111

main31482-BZ310iW101..5F..PHL202201-202309

31484BRACKET, FLEXIBLE HOSE(FOR CLUTCH)

main31484-BZ050iW101..5F..PHL202111-202309

31484ABRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)

main31484-BZ060iW101..5F..PHL202111-202309

31495WAY, CLUTCH TUBE

main31495-BZ050iW101..5F..PHL202111-202309

31496BCLAMP, CLUTCH TUBE

main90044-64804iW100,101..5F..IDN202111

4702

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-BZ460iW100,101..5F..IDN202111

main55107-BZ480iW101..5F..PHL202201-202309

21598BZ010RETAINER(FOR INJECTION PUMP BALL BEARING)

main21598-BZ010

9004179300

main90041-79300

9004206048

main90042-06048

9004240027

main90042-40027

9004464925

main90044-64925

9004465441

main90044-65441

9004A10168

main9004A-10168

9004A10220

main9004A-10220

9004A10297

main9004A-10297

9004A11283

main9004A-11283

9004A17279

main9004A-17279

9613641801

main96136-41801

38 parts on this diagram · 2 diagrams in section
