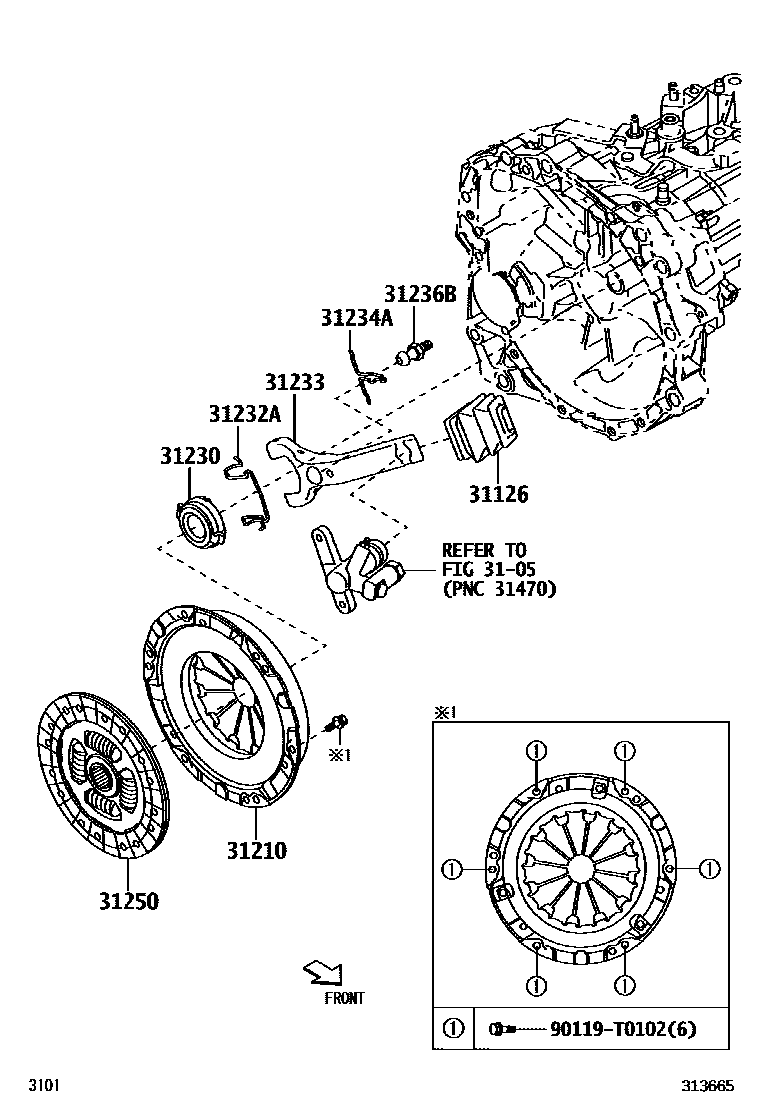

CLUTCH & RELEASE FORK

3105

31126BOOT, CLUTCH RELEASE FORK

main31126-BZ030iW101..5F..PHL202111-202309

31210COVER ASSY, CLUTCH

main31210-BZ270iW101..5F..PHL202111-202309

main31210-BZ320iW100..5F202111

31230BEARING ASSY, CLUTCH RELEASE

main31230-BZ070iW101..5F..PHL202111-202309

31232ACLIP, RELEASE BEARING HUB

main31232-BZ060iW101..5F..PHL202111-202309

31233FORK, CLUTCH RELEASE

main31233-BZ080iW101..5F..PHL202111-202309

31234ASPRING, RELEASE FORK SUPPORT

main31234-BZ040iW101..5F..PHL202111-202309

31236BSUPPORT, RELEASE FORK

main31236-BZ010iW101..5F..PHL¥580202111-202309

31250DISC ASSY, CLUTCH

main31250-BZ320iW101..5F..PHL202111-202309

main31250-BZ330iW100..5F202111

90119T0102

main90119-T0102¥80

10 parts on this diagram · 1 diagram in section
