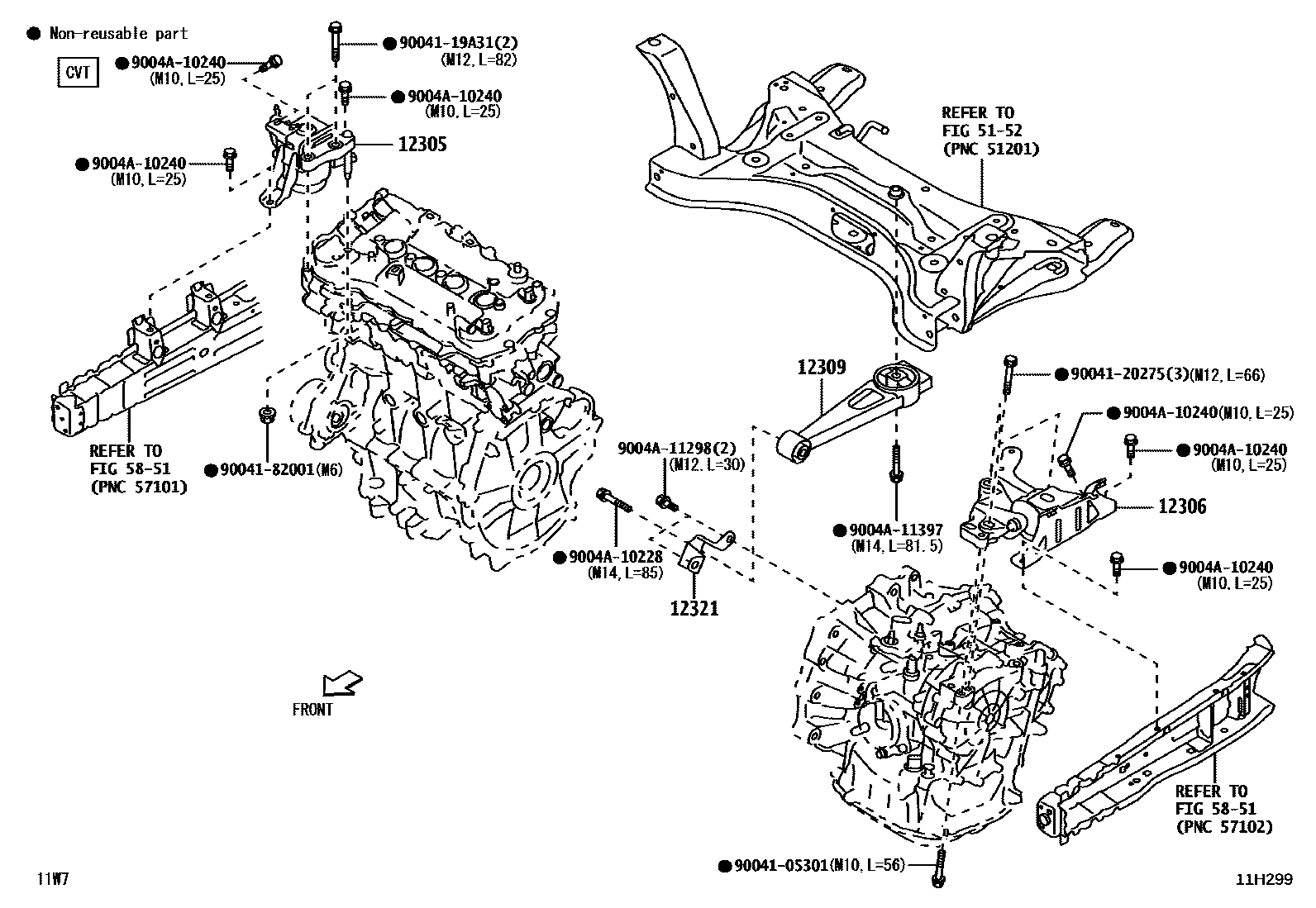

MOUNTING

0001 1 0002 1

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-BZ310i1NRVE,2NRVE..W100,101..CVT202111

main12305-BZ360i1NRVE,2NRVE..W100,101..5F202111

12306INSULATOR SUB-ASSY, ENGINE MOUNTING, LH

main12306-BZ390i1NRVE,2NRVE..W100,101..CVT202111

main12306-BZ400i1NRVE,2NRVE..W100,101..5F202111

12309ROD SUB-ASSY, ENGINE MOVING CONTROL

main12309-BZ290i1NRVE,2NRVE..W100,101..CVT202111

main12309-BZ300i1NRVE,2NRVE..W100,101..5F202111

12321BRACKET, ENGINE MOUNTING, REAR, NO.1

main12321-BZ360i2NRVE..W101..VN202111-202302

main12321-BZ380i2NRVE..W101..VN202302

5152

5851

9004105301

main90041-05301

9004119A31

main90041-19A31

9004120275

main90041-20275

9004182001

main90041-82001

9004A10228

main9004A-10228

9004A10240

main9004A-10240

9004A11298

main9004A-11298

9004A11397

main9004A-11397

14 parts on this diagram · 2 diagrams in section
