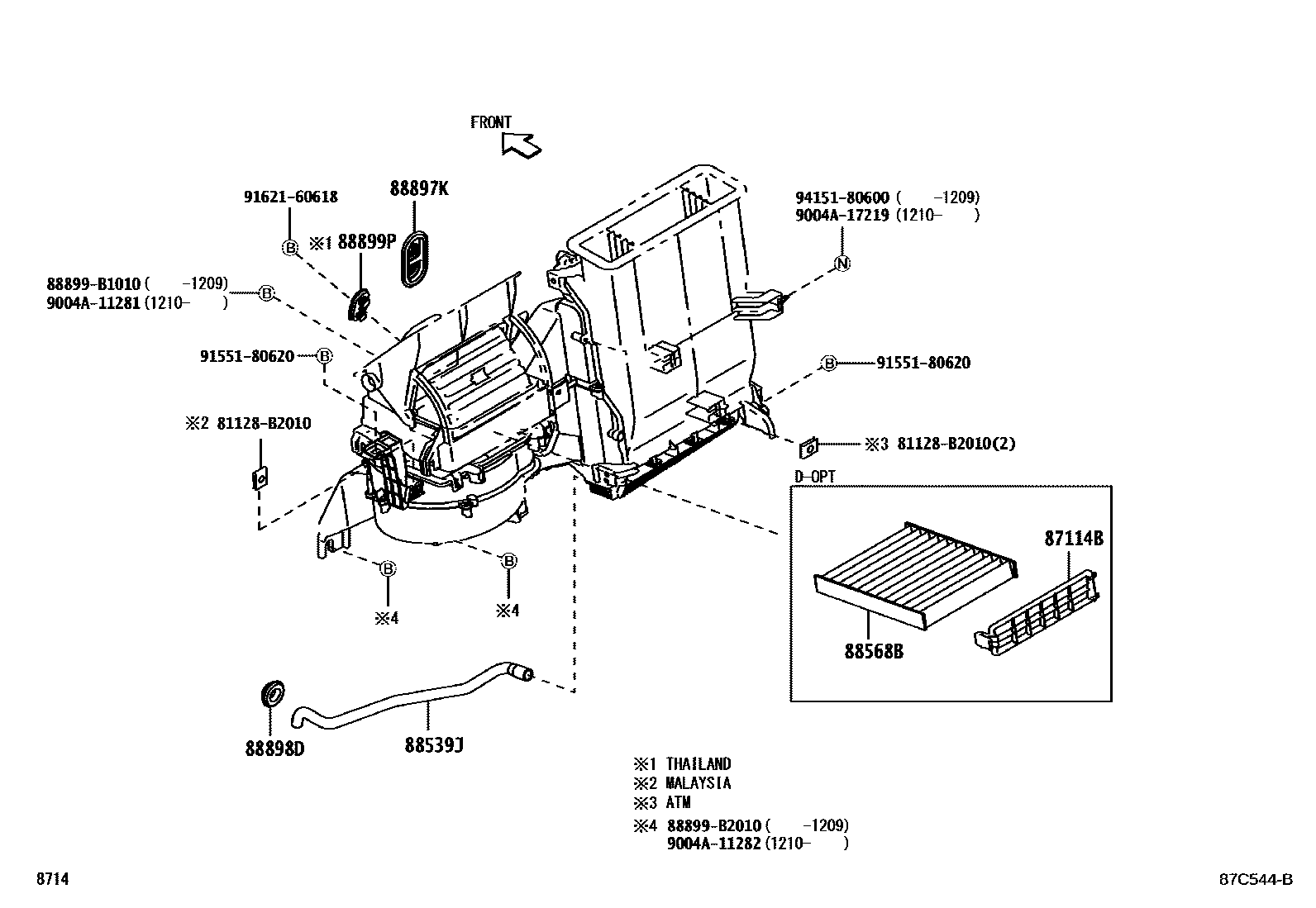

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0014 1 0015 1 0016 1 0017 1 0021 1 0022 1 0024 1 0025 1 0026 1W/HEATER 0027 1W/O HEATER 0028 1

87114BCOVER, HEATER

main87114-BZ020iF65#..(MID,SPO)..IDN201507-202110

main87114-BZ020iF65#..IDN201306-201507

RHD GENERAL COUNTRIES

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-BZ220iF65#..(MID,SPO)..IDN201111-202110

88539JHOSE, DRAIN COOLER

main88539-BZ190iF65#..IDN201111-201508

main88539-BZ210iF651,652..LHD201112-201508

main88539-BZ320iF653,654..RHD201507-202110

main88539-BZ330iF65#..LHD201508-201904

88568BFILTER, AIR

main88568-BZ050iF65#..(MID,SPO)..IDN201507-202110

main88568-BZ060iF651..MID..IDN;F652..SPO..IDN201306-201507

RHD GENERAL COUNTRIES

88897KGROMMET, (FOR COOLER PIPE)

main88897-BZ160iF65#..(MID,SPO)..IDN201111-202110

main88897-BZ190iF65#..GCC,GEN,MXC,SA201111-201904

88898DGROMMET

main88897-87Z13iF65#..IDN201111-202110

88899PPLATE, COVER

main88899-BZ050iF652..TH;F651..(LO,VB)..SA201111-202201

81128B2010NUT, HEADLAMP

main81128-B2010

88899B1010COVER, EVAPORATOR

main88899-B1010

88899B2010COVER, EVAPORATOR

main88899-B2010

9004A11281

main9004A-11281

9004A11282

main9004A-11282

9004A17219

main9004A-17219

9155180620

main91551-80620

9162160618

main91621-60618

9415180600

main94151-80600

16 parts on this diagram · 22 diagrams in section
