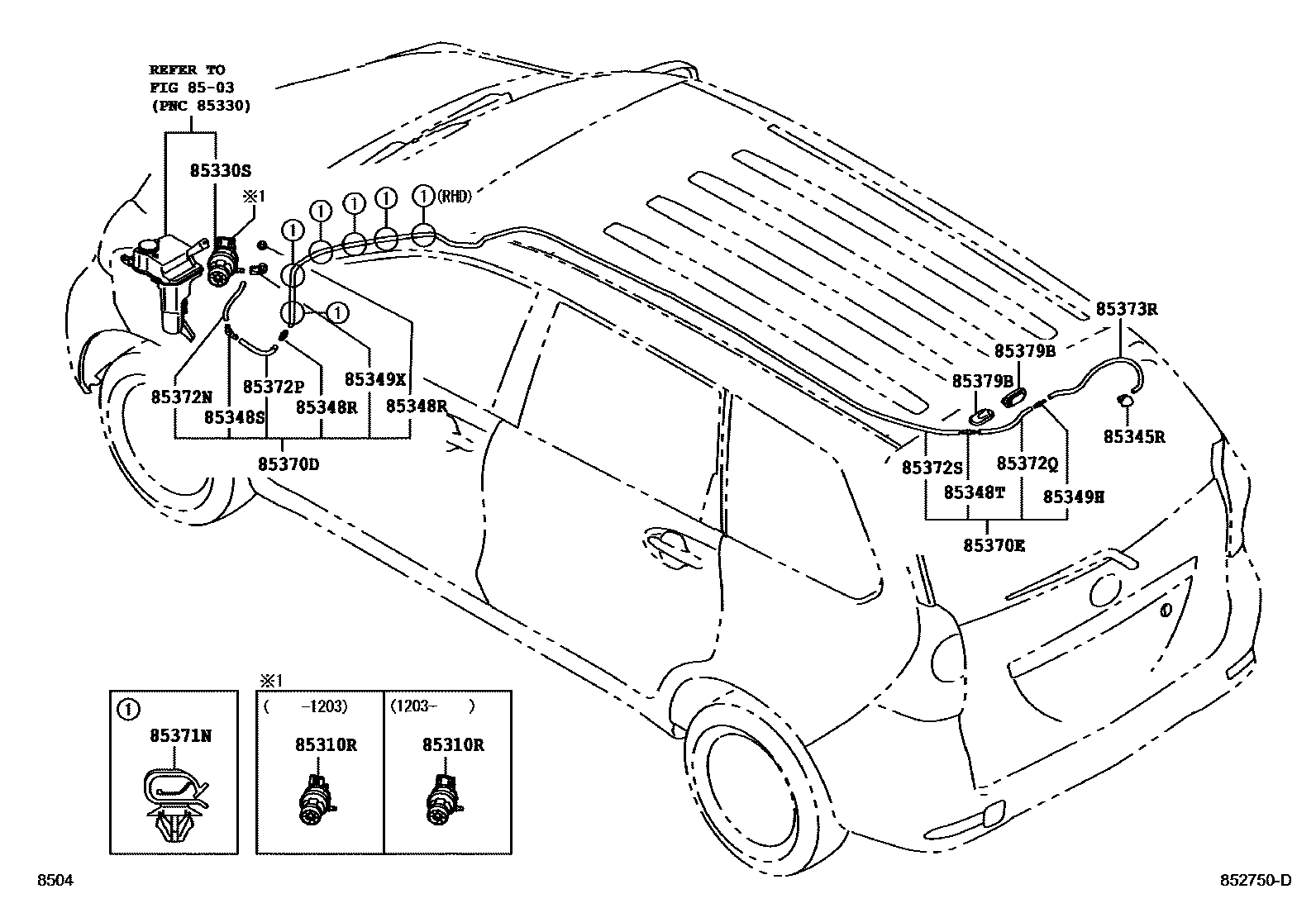

REAR WASHER

0001 1 0002 1

8503

85310RMOTOR ASSY, REAR WASHER

main85330-BZ010iF65#..IDN201203-201507

main85330-BZ030iF651..STD..PHL;F651..GEN,IDN,MA,SA;F652..GEN,IDN,MA,PHL,SA,TH201111-201203

85330SBUSH, REAR WASHER JAR

main85373-97202iF65#..IDN201111-201507

85345RNOZZLE, REAR WASHER

main85391-BZ070iF653..STD..PHL;F654..4AT..STD..TH;F65#..MID..(GCC,GEN,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,SA);F654..(SPO,STD)..(GEN,MA,PHL,SA)201901

85348RJOINT, REAR WASHER HOSE, NO.1

main85317-BZ080×2iF65#..(MID,SPO)..IDN201901-202110

main85349-87201×2iF65#..IDN201111-201507

85348SJOINT, REAR WASHER ELBOW, NO.1

main85349-87602iF65#..IDN201111-201507

85348TJOINT, REAR WASHER HOSE, NO.2

main85317-BZ080×2iF653..GEN,SA;F653..STD..PHL;F654..4AT..STD..TH;F654..MID..(GCC,GEN,PHL,SA,TH);F654..(SPO,STD)..(GEN,MA,PHL,SA)201507-201904

main85349-87201iF65#..IDN201111-201507

85349HJOINT, REAR WASHER HOSE, NO.3

main85349-87201iF65#..IDN201111-201507

85349XJOINT, REAR WASHER ELBOW, NO.6

main85355-87503iF65#..IDN201111-201507

85370DHOSE ASSY, REAR WASHER, NO.1

main85370-BZ530iF65#..IDN201111-201507

main85370-BZA10iF65#..(MID,SPO)..IDN201901-202110

85370EHOSE ASSY, REAR WASHER, NO.2

main85370-BZ540iF651..GEN,SA;F652..STD..SA201111-201508

main85370-BZ580iF65#..IDN201111-201507

main85370-BZA20iF653..GEN,SA;F654..STD..(GEN,SA)201904

main85370-BZA30iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-201901

85371NCLAMP, REAR WASHER HOSE

main82711-BZ100×5iF651..GEN;F651..STD..PHL;F652..MID..(GCC,GEN,PHL)201112-201508

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main85374-BZ480iF651..STD..PHL;F652..MID..GCC;F651..GEN,MA,SA;F652..GEN,MA,PHL,SA,TH201111-201508

*H,L=140

main85374-BZA40iF653..GEN,SA;F654..STD..(GEN,SA)201508-201904

*H,L=2350

main85374-BZA50iF65#..(MID,SPO)..IDN201901-202110

*H,L=2450

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main85374-BZ410iF65#..IDN201111-201507

*H,L=850

main85374-BZA30iF653..GEN,SA;F653..STD..PHL;F654..4AT..STD..TH;F654..MID..(GCC,GEN,PHL,SA,TH);F654..(SPO,STD)..(GEN,MA,PHL,SA)201507-201904

*H,L=280

85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3

main9004B-91002iF65#..IDN201111-201507

*H,L=280

85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4

main85374-BZ420iF651..GEN,SA;F652..STD..SA201111-201508

*H,L=2350

main85374-BZ430iF65#..IDN201111-201507

*H,L=2430

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main85374-BZ440iF653..STD..PHL;F654..4AT..STD..TH;F65#..MID..(GCC,GEN,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,SA);F654..(SPO,STD)..(GEN,MA,PHL,SA)201901

*H,L=180

85379BGROMMET, WASHER, A

main85373-BZ010×2iF65#..IDN201111-201507

18 parts on this diagram · 2 diagrams in section
