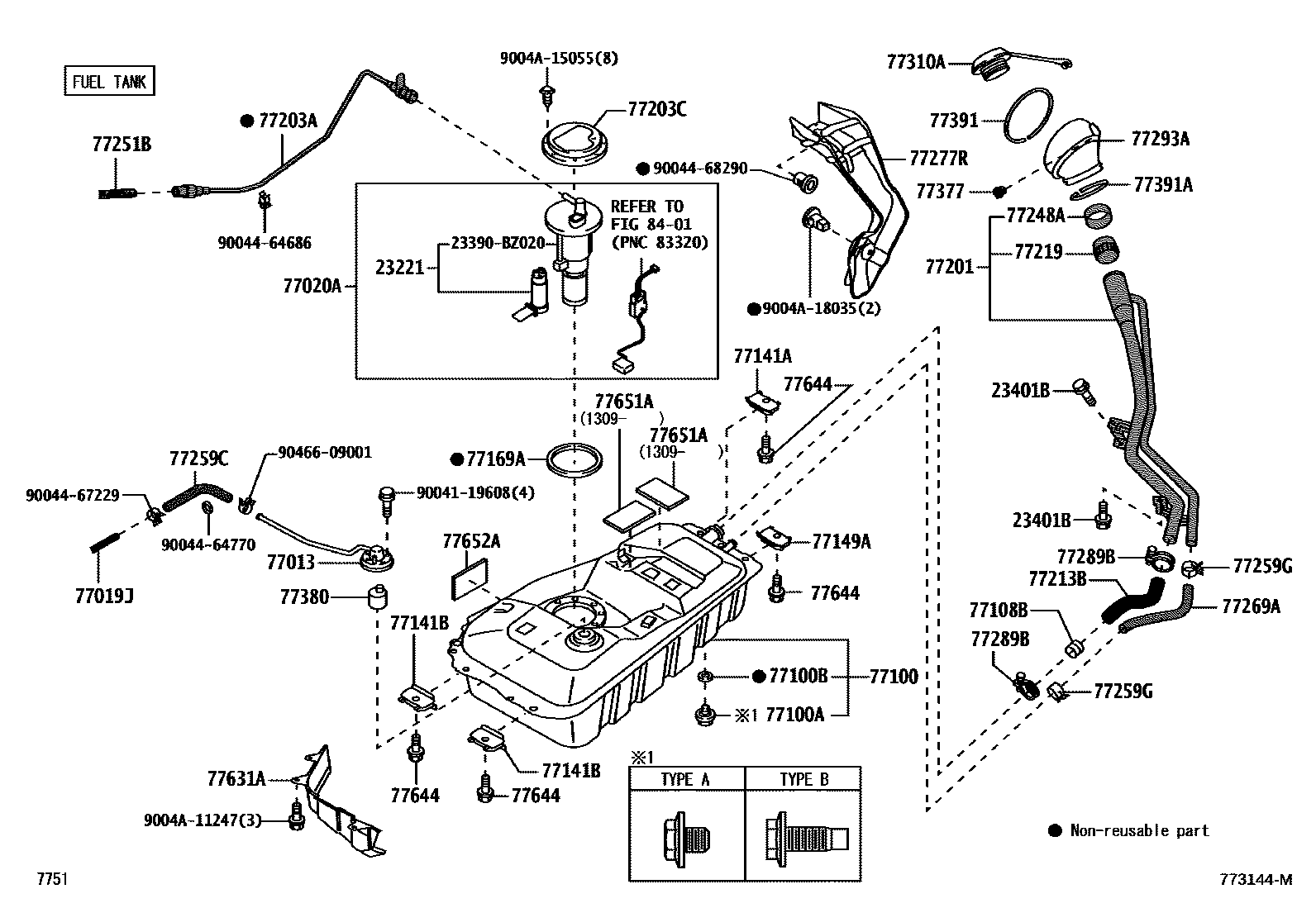

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TNAK 0004 1FUEL TUBE 0006 1FUEL TUBE 0007 1FUEL TUBE 0009 1FUEL TUBE 0010 1FUEL LID CABLE

23221PUMP, FUEL

main23100-BZ220i1NRVE,2NRVE..F653,654201507-201904

main23101-BZ070iK3VE,3SZVE..F65#201111-201312

sub23101-BZ071

23401BBOLT

main9004A-11252i2NRVE..F654..4AT..STD..TH;1NRVE..F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA);1NRVE,2NRVE..F65#..MID..(GCC,GEN,MXC,PHL,SA,TH)201210-202110

main91653-40616iK3VE,3SZVE..F65#201111-201209

77013TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2

main77013-BZ010iF65#201111-201311

main77013-BZ100iF653,654201312-202110

77019JTUBE SUB-ASSY, FUEL TANK TO CANISTER

main77019-BZ090iF651,652..GCC,GEN,MA,PHL,SA,TH201111-201508

main77019-BZ120iF652..MXC201112-201508

main77019-BZ150iF65#..LHD201508-201904

main77019-BZ160iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-202110

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main23210-BZ130iF65#..(MID,SPO)..IDN201507-202110

sub23210-BZ131

main23210-BZ150iF65#201111-201312

main23210-BZ300iF65#..IDN201312-201508

77100TANK ASSY, FUEL

main77001-BZ160iF65#..GEN,IDN,MA,MXC,PHL,SA201111-201312

sub77001-BZ260

main77001-BZ210iF652..TH201111-201312

sub77001-BZ270

main77001-BZ260iF651,652..GCC,GEN,MA,MXC,PHL,SA201312-202004

sub77001-BZ620

main77001-BZ270iF652..TH201312-201904

sub77001-BZ620

main77001-BZ270iF654..TH201904-202004

S.AFRICA FOR GENERAL EXP

sub77001-BZ620

main77001-BZ620iF65#..(MID,SPO)..IDN202005-202110

77100APLUG(FOR FUEL TANK)

main90041-05177iF65#201111-201302

TYPE B

main90041-05481iF653,654201507-201511

main90041-05481iF65#..IDN201302-201508

TYPE A

main9004A-10186iF65#201512-202110

77100BGASKET(FOR FUEL TANK)

main90044-30291iF65#..IDN201111-202110

77108BVALVE SUB-ASSY, FUEL TANK FILLER CHECK

main77108-B2010iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-202110

77141AREINFORCEMENT, FUEL TANK FLANGE

main77141-BZ120iF65#..IDN201111-202110

77141BREINFORCEMENT, FUEL TANK FLANGE, NO.1

main77141-BZ090iF65#..IDN201111-202110

77149AREINFORCEMENT, FUEL TANK SIDE

main77141-BZ130iF65#..IDN201111-202110

77169AGASKET, FUEL SUCTION TUBE SET

main23232-BZ010iF65#..IDN201111-202110

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-BZ020iF65#..IDN201111-201508

main77201-BZ170iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-202110

77203ATUBE SUB-ASSY, FUEL SUCTION

main77203-BZ080iF65#201111-201205

sub77203-BZ081

main77203-BZ081iF65#201206-201311

main77203-BZ100iF65#..IDN201312-202110

77203CBRACKET, FUEL PUMP

main23265-BZ010iF65#..IDN201111-202110

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-B0010iF652..MXC,TH201111-201508

main77213-BZ010iF65#..IDN201111-201508

sub77213-B0010

sub77213-BZ190

main77213-BZ160iF653,654..IDN201507-201904

main77213-BZ170iF65#..(LO,MID,STD)..PHL201508-202110

main77213-BZ170iF654..GCC201801-201904

COSTA RICA

77219COVER, FUEL TANK FILLER PIPE

main77219-0K010iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201501-202110

main77219-20070iF65#201111-201412

77248AHOLDER, FUEL TANK FILLER PIPE COVER

main77248-20030iF65#201111-201501

77251BTUBE, FUEL MAIN

main77251-BZ160iF65#..IDN201111-201508

main77251-BZ210iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-202110

77259CHOSE, FUEL

main77259-BZ010iF65#..IDN201111-202110

77259GCLIP, FUEL HOSE

main90044-67244iF65#..IDN201111-202110

77269AHOSE, FUEL TANK BREATHER

main77269-B0010iF65#..PHL201111-201601

main77269-BZ010iF654..GCC201111-201904

main77269-BZ170iF654..MID..GEN201801-201904

COSTA RICA

main77269-BZ170iF65#..MXC,PHL,TH201601-202110

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-BZ012iF65#..IDN201111-202110

77289BCLAMP, FUEL TUBE, NO.3

main96111-30440iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201111-202110

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-BZ010iF65#201111-201205

sub77293-BZ011

main77293-BZ011iF65#201206-201407

sub77293-BZ012

main77293-BZ012iF65#..IDN201408-202110

77310ACAP ASSY, FUEL TANK

main77300-52030iF65#..IDN201111-202110

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-12050iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201111-202110

77380VALVE ASSY, FUEL CUT OFF

main77380-0K010iF65#..IDN201111-202110

77391RING, FUEL INLET BOX

main77391-BZ010iF65#..IDN201111-202110

77391ARING, FUEL INLET BOX

main77391-BZ040iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201111-202110

77631APROTECTOR, FUEL TANK, LOWER CENTER

main77631-BZ060iF65#201111-201412

sub77631-BZ061

main77631-BZ061iF65#..IDN201501-202110

77644BOLT, FUEL TANK

main90041-20084iF653,654201111-202110

77651ACUSHION, FUEL TANK, NO.1

main77651-BZ030iF65#201611-202110

main77652-B2010iF65#..GEN,IDN,MA,MXC,PHL,SA201309-201610

77652ACUSHION, FUEL TANK, NO.2

main77652-B2010iF652..GCC201206-201610

main77652-BZ040iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201611-202110

8401

23390BZ020ELEMENT ASSY, FUEL FILTER

main23390-BZ020

9004119608

main90041-19608

9004464686

main90044-64686

9004464770

main90044-64770

9004467229

main90044-67229

9004468290

main90044-68290

9004A11247

main9004A-11247

9004A15055

main9004A-15055

9004A18035

main9004A-18035

9046609001

main90466-09001

46 parts on this diagram · 8 diagrams in section
