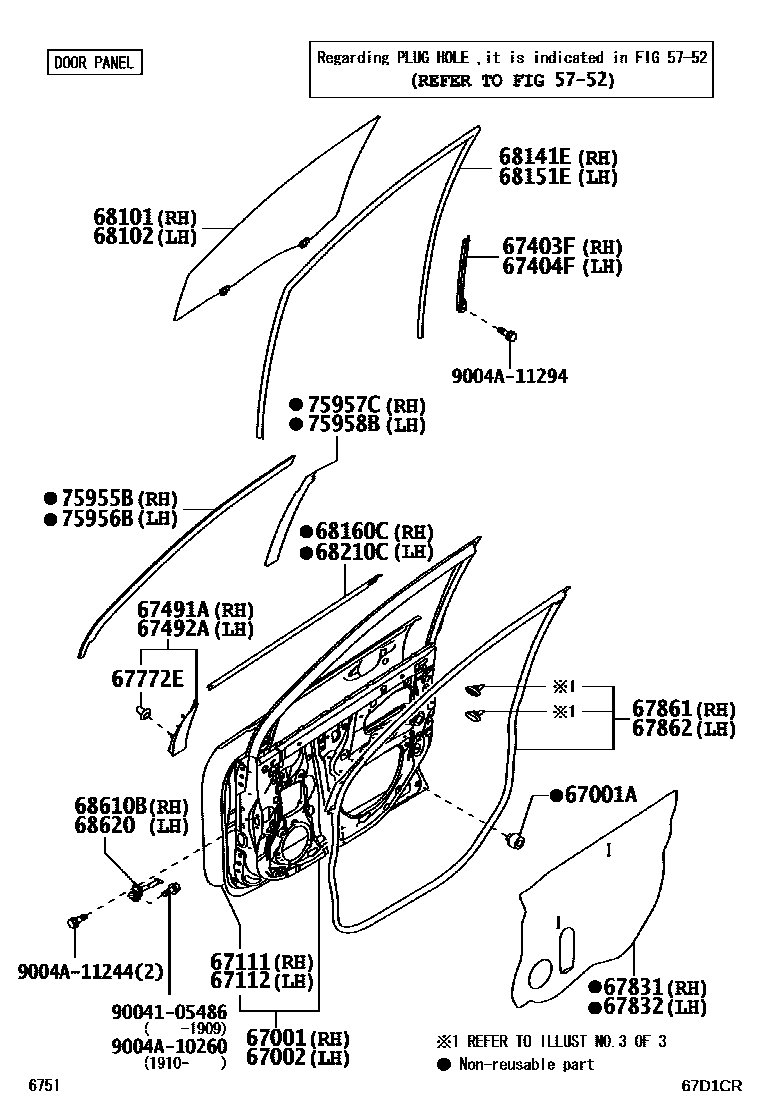

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM 0003 1WETHERSTRIP RETAINER & CLIP

5752

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-BZ300iF65#..IDN201111-201508

sub67001-BZ520

main67001-BZ520iF653,654201404-201904

main67001-BZ580iF654..MID..(GCC,MXC);F654..(SPO,STD)..(GCC,MA)201901-202201

main67001-BZ600iF654..MXC201908-202110

67001ACUSHION, FRONT DOOR PANEL

main90541-09069iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)¥170201111-202110

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-BZ310iF651,652..GEN,MA,MXC,PHL,SA,TH201111-201508

sub67002-BZ510

main67002-BZ510iF653,654..GEN,IDN,MA,MXC,PHL,SA,TH201404-201904

main67002-BZ580iF654..MID..(GCC,MXC);F654..(SPO,STD)..(GCC,MA)201901-202201

main67002-BZ630iF653;F654..MID..MA;F654..GEN,IDN,PHL,SA,TH201602-201904

main67002-BZ660iF65#..(MID,SPO)..IDN201908-202110

67111PANEL, FRONT DOOR, OUTER RH

main67111-BZ210iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201111-202110

67112PANEL, FRONT DOOR, OUTER LH

main67112-BZ220iF65#..IDN201111-202110

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-BZ090iF65#..IDN201111-202110

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-BZ090iF65#..IDN201111-202110

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-BZ070iF65#..IDN201111-202110

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-BZ070iF65#..IDN201111-202110

67772ECAP, FRONT DOOR TRIM RETAINER

main67772-87Z02iF65#..(MID,SPO)..IDN¥80201111-202110

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-BZ240iF651..STD..IDN201111-201507

main67831-BZ250iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-202110

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67831-BZ240iF651..STD..IDN201111-201507

main67831-BZ250iF65#..(MID,SPO)..IDN201111-202110

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-BZ130iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201111-202110

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-BZ110iF65#..IDN201111-202110

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-BZ220iF65#201111-201202

T=3.1,GREEN

sub68101-BZ221

main68101-BZ221iF65#..IDN201203-201508

T=3.1,GREEN

main68101-BZ221iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-202110

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-BZ210iF65#201111-201202

T=3.1,GREEN

sub68102-BZ211

main68102-BZ211iF65#..IDN201203-201508

T=3.1,GREEN

main68102-BZ211iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-202110

68141ERUN, FRONT DOOR GLASS, RH

main68141-BZ090iF65#..IDN201111-202110

68151ERUN, FRONT DOOR GLASS, LH

main68151-BZ090iF65#..IDN201111-202110

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68160-BZ040iF65#..IDN201111-202110

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68210-BZ030iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201111-202110

68610BCHECK ASSY, FRONT DOOR, RH

main68610-BZ130iF65#..IDN201111-202110

68620CHECK ASSY, FRONT DOOR, LH

main68610-BZ130iF65#..IDN201111-202110

75955BTAPE, BLACK OUT FRONT DOOR, OUTER UPPER RH

main75955-BZ040-C0iF652..SPO..IDN201111-201508

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1H2 ,W09

main75955-BZ040-C0iF652..SPO..IDN201111-201508

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1H2 ,B72 ,R56 ,S37 ,T23 ,W09

main75955-BZ040-C0iF652..SPO..(MA,TH)201111-201508

TUYAKESI BLACK DUMMYCOLOR,1E7 ,B72 ,S37 ,T23 ,W09

main75955-BZ040-C0iF652..GEN,PHL;F651..STD..PHL201112-201508

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1H2 ,B72 ,S37 ,T23 ,W09

main75955-BZ040-C0iF653,654..(MID,STD)..(IDN,MA)201507-201904

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,3Q3 ,4U3 ,8X2 ,T23 ,W09

main75955-BZ040-C0iF653,654..(MID,STD)..(IDN,MA)201507-202201

TUYAKESI BLACK DUMMYCOLOR,1E7 ,3Q3 ,W09

main75955-BZ040-C0iF654..MID..(GCC,GEN);F65#..(MID,STD)..(PHL,SA)201508-201904

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,8X2 ,T23 ,W09

main75955-BZ040-C0iF65#..SPO..IDN201901-202110

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,3Q3 ,4T3 ,B79 ,W09

main75955-BZ040-C0iF653..STD..IDN201901-202111

TUYAKESI BLACK DUMMYCOLOR,1E7 ,W09

main75955-BZ040-C0iF65#..(MID,STD)..PHL201904-202201

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,B79 ,T23 ,W09

main75955-BZ040-C0iF65#..(MID,STD)..SA;F654..MID..(GCC,GEN)201904

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,4T3 ,B79 ,T23 ,W09

75956BTAPE, BLACK OUT FRONT DOOR, OUTER UPPER LH

main75956-BZ040-C0iF652..SPO..IDN201111-201508

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1H2 ,W09

main75956-BZ040-C0iF652..SPO..IDN201111-201508

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1H2 ,B72 ,R56 ,S37 ,T23 ,W09

main75956-BZ040-C0iF652..SPO..(MA,TH)201111-201508

TUYAKESI BLACK DUMMYCOLOR,1E7 ,B72 ,S37 ,T23 ,W09

main75956-BZ040-C0iF652..GEN,PHL;F651..STD..PHL201112-201508

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1H2 ,B72 ,S37 ,T23 ,W09

main75956-BZ040-C0iF653,654..(MID,STD)..(IDN,MA)201507-201904

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,3Q3 ,4U3 ,8X2 ,T23 ,W09

main75956-BZ040-C0iF653,654..(MID,STD)..(IDN,MA)201507-202201

TUYAKESI BLACK DUMMYCOLOR,1E7 ,3Q3 ,W09

main75956-BZ040-C0iF654..MID..(GCC,GEN);F65#..(MID,STD)..(PHL,SA)201508-201904

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,8X2 ,T23 ,W09

main75956-BZ040-C0iF65#..SPO..IDN201901-202110

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,3Q3 ,4T3 ,B79 ,W09

main75956-BZ040-C0iF653..STD..IDN201901-202111

TUYAKESI BLACK DUMMYCOLOR,1E7 ,W09

main75956-BZ040-C0iF65#..(MID,STD)..PHL201904-202201

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,B79 ,T23 ,W09

main75956-BZ040-C0iF65#..(MID,STD)..SA;F654..MID..(GCC,GEN)201904

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,4T3 ,B79 ,T23 ,W09

75957CTAPE, BLACK OUT FRONT DOOR, OUTER REAR RH

main75957-BZ040-C0iF652..SPO..IDN201111-201508

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1H2 ,W09

main75957-BZ040-C0iF652..SPO..IDN201111-201508

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1H2 ,B72 ,R56 ,S37 ,T23 ,W09

main75957-BZ040-C0iF652..SPO..(MA,TH)201111-201508

TUYAKESI BLACK DUMMYCOLOR,1E7 ,B72 ,S37 ,T23 ,W09

main75957-BZ040-C0iF652..GEN,PHL;F651..STD..PHL201112-201508

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1H2 ,B72 ,S37 ,T23 ,W09

main75957-BZ040-C0iF653,654..(MID,STD)..(IDN,MA)201507-201904

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,3Q3 ,4U3 ,8X2 ,T23 ,W09

main75957-BZ040-C0iF653,654..(MID,STD)..(IDN,MA)201507-202201

TUYAKESI BLACK DUMMYCOLOR,1E7 ,3Q3 ,W09

main75957-BZ040-C0iF654..MID..(GCC,GEN);F65#..(MID,STD)..(PHL,SA)201508-201904

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,8X2 ,T23 ,W09

main75957-BZ040-C0iF65#..SPO..IDN201901-202110

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,3Q3 ,4T3 ,B79 ,W09

main75957-BZ040-C0iF653..STD..IDN201901-202111

TUYAKESI BLACK DUMMYCOLOR,1E7 ,W09

main75957-BZ040-C0iF65#..(MID,STD)..PHL201904-202201

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,B79 ,T23 ,W09

main75957-BZ040-C0iF65#..(MID,STD)..SA;F654..MID..(GCC,GEN)201904

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,4T3 ,B79 ,T23 ,W09

75958BTAPE, BLACK OUT FRONT DOOR, OUTER REAR LH

main75958-BZ040-C0iF652..SPO..IDN201111-201508

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1H2 ,W09

main75958-BZ040-C0iF652..SPO..IDN201111-201508

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1H2 ,B72 ,R56 ,S37 ,T23 ,W09

main75958-BZ040-C0iF652..SPO..(MA,TH)201111-201508

TUYAKESI BLACK DUMMYCOLOR,1E7 ,B72 ,S37 ,T23 ,W09

main75958-BZ040-C0iF652..GEN,PHL;F651..STD..PHL201112-201508

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1H2 ,B72 ,S37 ,T23 ,W09

main75958-BZ040-C0iF653,654..(MID,STD)..(IDN,MA)201507-201904

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,3Q3 ,4U3 ,8X2 ,T23 ,W09

main75958-BZ040-C0iF653,654..(MID,STD)..(IDN,MA)201507-202201

TUYAKESI BLACK DUMMYCOLOR,1E7 ,3Q3 ,W09

main75958-BZ040-C0iF654..MID..(GCC,GEN);F65#..(MID,STD)..(PHL,SA)201508-201904

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,8X2 ,T23 ,W09

main75958-BZ040-C0iF65#..SPO..IDN201901-202110

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,3Q3 ,4T3 ,B79 ,W09

main75958-BZ040-C0iF653..STD..IDN201901-202111

TUYAKESI BLACK DUMMYCOLOR,1E7 ,W09

main75958-BZ040-C0iF65#..(MID,STD)..PHL201904-202201

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,B79 ,T23 ,W09

main75958-BZ040-C0iF65#..(MID,STD)..SA;F654..MID..(GCC,GEN)201904

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,4T3 ,B79 ,T23 ,W09

9004105486

main90041-05486¥170

9004A10260

main9004A-10260

9004A11244

main9004A-11244¥110

9004A11294

main9004A-11294¥110

31 parts on this diagram · 3 diagrams in section
