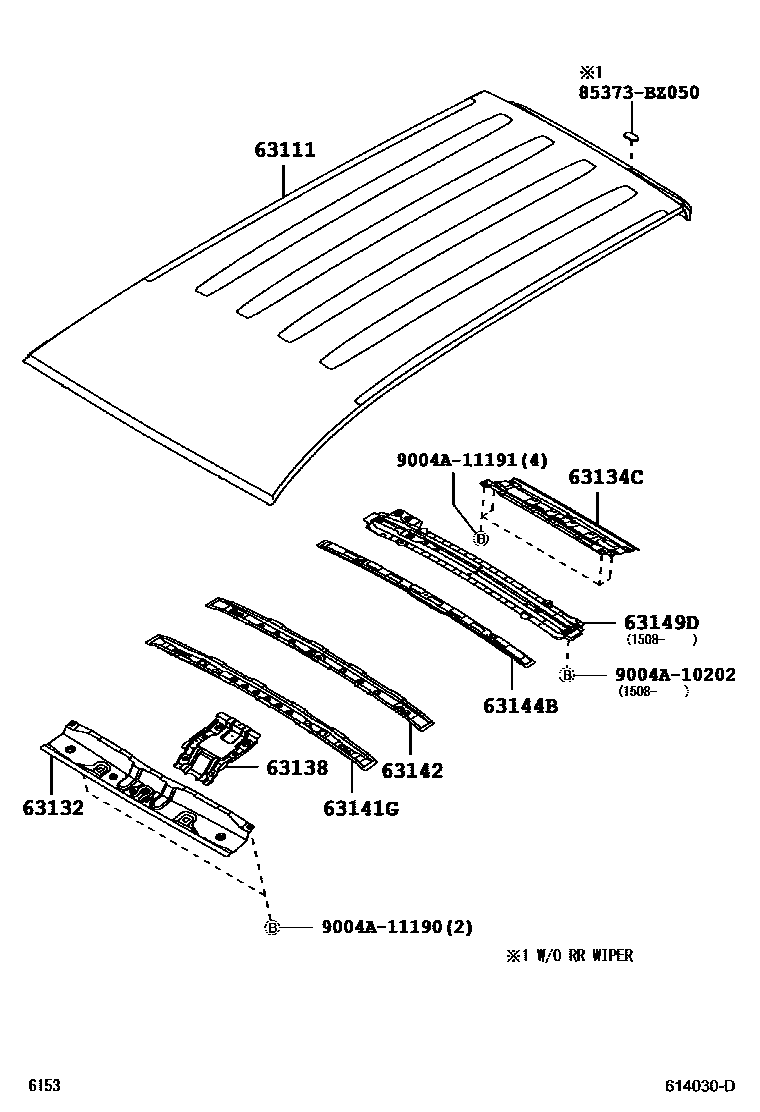

ROOF PANEL & BACK PANEL

63111PANEL, ROOF

main63111-BZ210iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201111-201904

main63111-BZ300iF65#..(MID,SPO)..IDN201901-202110

63132PANEL, WINDSHIELD HEADER, INNER

main63132-BZ160iF65#..(MID,SPO)..IDN201111-202110

63134CFRAME, BACK DOOR OPENING, INNER

main63134-BZ130iF65#..IDN201111-201904

main63134-BZ210iF65#..(MID,SPO)..IDN201901-202110

main63134-BZ250iF654..GCC201609-201904

63138BRACKET, DOME LAMP, NO.2

main63138-BZ010iF65#..(MID,SPO)..IDN201111-202110

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-BZ100iF65#..IDN201111-202110

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-BZ100iF65#..IDN201111-202110

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-BZ070iF65#..IDN201111-202110

63149DREINFORCEMENT, ROOF PANEL, NO.8

main63208-BZ011iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-202110

85373BZ050HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main85373-BZ050

9004A10202

main9004A-10202

9004A11190

main9004A-11190

9004A11191

main9004A-11191

12 parts on this diagram · 1 diagram in section
