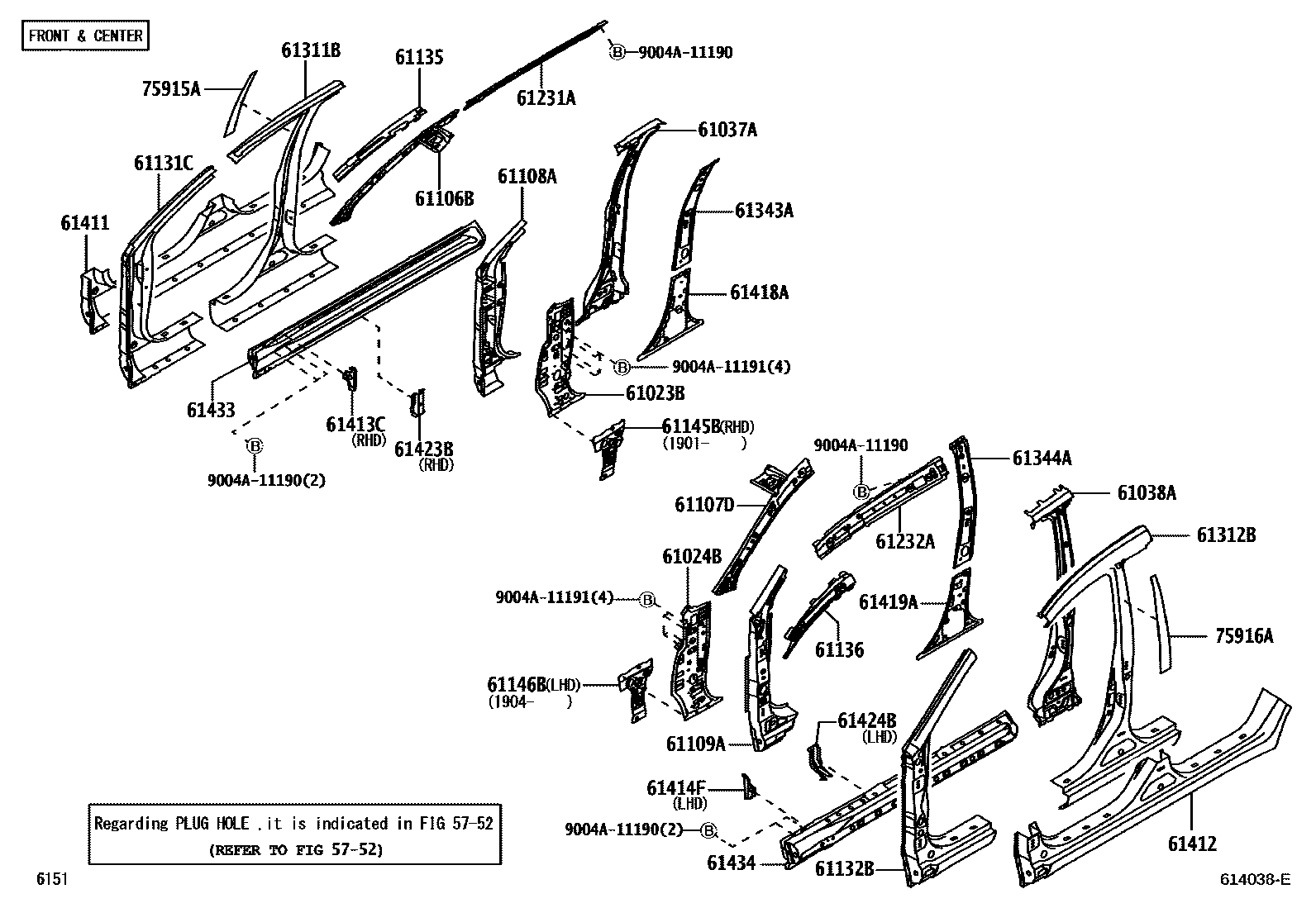

SIDE MEMBER

0001 1FRONT & CENTER 0002 1QUARTER & REAR 0003 1

5752

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-BZ070iF651,652..MA,SA,TH201111-201508

main61023-BZ300iF654..MID..(SA,TH);F654..4AT..STD..TH;F654..(SPO,STD)..(MA,SA);F653..(LO,STD,VB)..(IDN,SA)201901-202110

main61023-BZ330iF653..SA;F654..MID..(SA,TH);F654..4AT..STD..TH;F654..(SPO,STD)..(MA,SA)201507-201904

main61163-BZ220iF651,652..LHD201112-201508

main61163-BZ300iF65#..LHD201508-201904

main61163-BZ320iF65#..LHD201904

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-BZ200iF651,652..LHD201112-201904

main61024-BZ330iF65#..LHD201904

main61164-BZ200iF65#..IDN201111-201904

main61164-BZ340iF654..MID..(SA,TH);F654..4AT..STD..TH;F654..(SPO,STD)..(MA,SA);F653..(LO,STD,VB)..(IDN,SA)201901-202110

61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

main61037-BZ190iF65#..IDN201111-202110

61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH

main61038-BZ220iF65#..IDN201111-202110

61106BPILLAR SUB-ASSY, FRONT, RH

main61106-BZ040iF65#..IDN201111-201508

main61106-BZ050iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-202110

61107DPILLAR SUB-ASSY, FRONT, LH

main61107-BZ040iF65#..IDN201111-201508

sub61107-BZ060

main61107-BZ050iF651,652..LHD201112-201508

sub61107-BZ080

main61107-BZ060iF653..SA;F654..MID..(SA,TH);F654..4AT..STD..TH;F654..(SPO,STD)..(MA,SA)201507-202110

main61107-BZ080iF65#..LHD201508-201904

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-BZ110iF653,654201111-202110

61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

main61109-BZ100iF65#..IDN201111-202110

61131CPILLAR, FRONT BODY, OUTER RH

main61131-BZ110iF654..MID..PHL;F654..(SPO,STD)..(MA,PHL)201901-202201

main61131-BZ240iF651,652..(MID,STD)..MA201111-201904

main61131-BZ260iF652..SPO..MA201111-201904

main61131-BZ270iF65#..(LO,MID,STD,VB)..(SA,TH)201111-201904

main61131-BZ280iF654..SPO..TH201111-201901

main61131-BZ290iF65#..PHL201112-202110

main61131-BZ300iF65#..GCC,GEN,MXC,SA201112-201904

main61131-BZ380iF654..TH201904-202201

61132BPILLAR, FRONT BODY, OUTER LH

main61132-BZ240iF653..(LO,STD)..(IDN,PHL)201111-202110

main61132-BZ260iF653,654..SPO..IDN201111-202201

main61132-BZ270iF65#..SA;F654..4AT..(MID,STD)..TH201111-201904

main61132-BZ280iF654..TH201111-202201

main61132-BZ290iF65#..PHL201112-201904

main61132-BZ300iF65#..GCC,GEN,MXC201112-201904

61135REINFORCEMENT, FRONT BODY PILLAR, UPPER RH

main61135-BZ030iF65#..(MID,SPO)..IDN201111-202110

61136REINFORCEMENT, FRONT BODY PILLAR, UPPER LH

main61136-BZ020iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201111-202110

61145BGUSSET, FRONT BODY PILLAR, LOWER RH

main61145-BZ020iF65#..(MID,SPO)..IDN201901-202110

61146BGUSSET, FRONT BODY PILLAR, LOWER LH

main61146-BZ020iF65#..GCC,PHL;F654..STD..GEN;F654..4AT..MXC;F653..(MID,STD)..GEN201904-202201

61231ARAIL, ROOF SIDE, INNER RH

main61231-BZ210iF65#..IDN201111-202110

61232ARAIL, ROOF SIDE, INNER LH

main61232-BZ210iF65#..IDN201111-202110

61311BPILLAR, CENTER BODY, OUTER RH

main61311-BZ150iF65#..MID..IDN201111-202110

main61311-BZ151iF654..SPO..PHL;F653,654..(LO,MID,STD)..(IDN,MA,PHL)201507-201903

sub61311-BZ150

main61311-BZ160iF654..MA,PHL201111-202201

main61311-BZ161iF652..SPO..MA201507-201904

sub61311-BZ160

main61311-BZ170iF65#..GCC,GEN,MXC,SA201111-201904

main61311-BZ171iF65#..(LO,MID,STD,VB)..(GCC,GEN,MXC,SA,TH)201508-201902

sub61311-BZ170

main61311-BZ180iF652..SPO..TH201111-202201

main61311-BZ181iF654..SPO..TH201508-201901

sub61311-BZ180

61312BPILLAR, CENTER BODY, OUTER LH

main61312-BZ180iF653,654..PHL;F654..STD..MA201111-202110

main61312-BZ190iF652..SPO..IDN201111-202201

main61312-BZ200iF65#..GEN,MXC,SA201111-201904

main61312-BZ210iF654..TH201111-202201

main61312-BZ280iF654..GCC201508-202201

61343APILLAR, CENTER BODY, INNER RH

main61343-BZ100iF654..4AT..STD..TH;F65#..MID..(GCC,GEN,MXC,PHL,SA,TH);F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201111-202110

61344APILLAR, CENTER BODY, INNER LH

main61344-BZ100iF65#..IDN201111-202110

61411PANEL, ROCKER, OUTER RH

main61411-BZ140iF65#..MID..IDN201111-202110

main61411-BZ141iF65#..(MID,STD)..IDN201507-201903

sub61411-BZ140

main61411-BZ150iF65#..SPO..IDN201111-202201

main61411-BZ151iF65#..SPO..IDN201507-201904

sub61411-BZ150

main61411-BZ160iF65#..GCC,GEN,MXC,SA;F654..4AT..(MID,STD)..TH201111-201904

main61411-BZ161iF65#..(LO,MID,STD,VB)..(GCC,GEN,MXC,SA,TH)201508-201902

sub61411-BZ160

main61411-BZ170iF652..SPO..TH201111-202201

main61411-BZ171iF654..SPO..TH201508-201901

sub61411-BZ170

61412PANEL, ROCKER, OUTER LH

main61412-BZ160iF65#..(MID,STD)..IDN201111-202110

main61412-BZ170iF654..MID..PHL;F654..(SPO,STD)..(MA,PHL)201111-202201

main61412-BZ180iF65#..GEN,MXC,SA201111-201904

main61412-BZ190iF652..SPO..TH201111-202201

main61412-BZ290iF654..GCC201508-202201

61413CREINFORCEMENT, ROCKER PANEL, NO.2 RH

main61413-BZ010iF65#..IDN201111-202110

61414FREINFORCEMENT, ROCKER PANEL, NO.2 LH

main61414-BZ010iF651,652..LHD201112-202201

61418AREINFORCEMENT, ROCKER PANEL, RH

main61418-BZ080iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-202110

61419AREINFORCEMENT, ROCKER PANEL, LH

main61419-BZ070iF65#..IDN201111-202110

61423BREINFORCEMENT, ROCKER PANEL, NO.3 RH

main61423-BZ010iF65#..IDN201111-202110

61424BREINFORCEMENT, ROCKER PANEL, NO.3 LH

main61423-BZ010iF651,652..LHD201112-202201

61433PANEL, ROCKER, INNER RH

main61433-BZ120iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-202110

61434PANEL, ROCKER, INNER LH

main61434-BZ110iF65#..IDN201111-202110

75915ATAPE, BLACK OUT CENTER PILLAR, RH

main75915-BZ040-C0iF653..STD..IDN201111-202111

TUYAKESI BLACK DUMMYCOLOR,1E7 ,W09

main75915-BZ040-C0iF652..SPO..IDN201111-201508

TUYAKESI BLACK DUMMYCOLOR,1E7 ,B72 ,R56 ,S37 ,T23 ,W09

main75915-BZ040-C0iF652..SPO..(MA,TH)201111-201508

TUYAKESI BLACK DUMMYCOLOR,1E7 ,B72 ,S37 ,T23 ,W09

main75915-BZ040-C0iF653,654..(MID,STD)..(IDN,MA)201507-201904

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,3Q3 ,4U3 ,8X2 ,T23 ,W09

main75915-BZ040-C0iF653,654..(MID,STD)..(IDN,MA)201507-202201

TUYAKESI BLACK DUMMYCOLOR,1E7 ,3Q3 ,W09

main75915-BZ040-C0iF654..MID..(GCC,GEN);F65#..(MID,STD)..(PHL,SA)201508-201904

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,8X2 ,T23 ,W09

main75915-BZ040-C0iF65#..SPO..IDN201901-202110

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,3Q3 ,4T3 ,B79 ,W09

main75915-BZ040-C0iF65#..(MID,STD)..PHL201904-202201

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,B79 ,T23 ,W09

main75915-BZ040-C0iF65#..(MID,STD)..SA;F654..MID..(GCC,GEN)201904

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,4T3 ,B79 ,T23 ,W09

75916ATAPE, BLACK OUT CENTER PILLAR, LH

main75916-BZ040-C0iF652..SPO..IDN201111-202111

TUYAKESI BLACK DUMMYCOLOR,1E7 ,W09

main75916-BZ040-C0iF652..SPO..IDN201111-201508

TUYAKESI BLACK DUMMYCOLOR,1E7 ,B72 ,R56 ,S37 ,T23 ,W09

main75916-BZ040-C0iF652..SPO..(MA,TH)201111-201508

TUYAKESI BLACK DUMMYCOLOR,1E7 ,B72 ,S37 ,T23 ,W09

main75916-BZ040-C0iF653,654..(MID,STD)..(IDN,MA)201507-201904

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,3Q3 ,4U3 ,8X2 ,T23 ,W09

main75916-BZ040-C0iF653,654..(MID,STD)..(IDN,MA)201507-202201

TUYAKESI BLACK DUMMYCOLOR,1E7 ,3Q3 ,W09

main75916-BZ040-C0iF654..MID..(GCC,GEN);F65#..(MID,STD)..(PHL,SA)201508-201904

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,8X2 ,T23 ,W09

main75916-BZ040-C0iF65#..SPO..IDN201901-202110

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,3Q3 ,4T3 ,B79 ,W09

main75916-BZ040-C0iF65#..(MID,STD)..PHL201904-202201

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,B79 ,T23 ,W09

main75916-BZ040-C0iF65#..(MID,STD)..SA;F654..MID..(GCC,GEN)201904

TUYAKESI BLACK DUMMYCOLOR,1E7 ,1G3 ,4T3 ,B79 ,T23 ,W09

9004A11190

main9004A-11190

9004A11191

main9004A-11191

35 parts on this diagram · 3 diagrams in section
