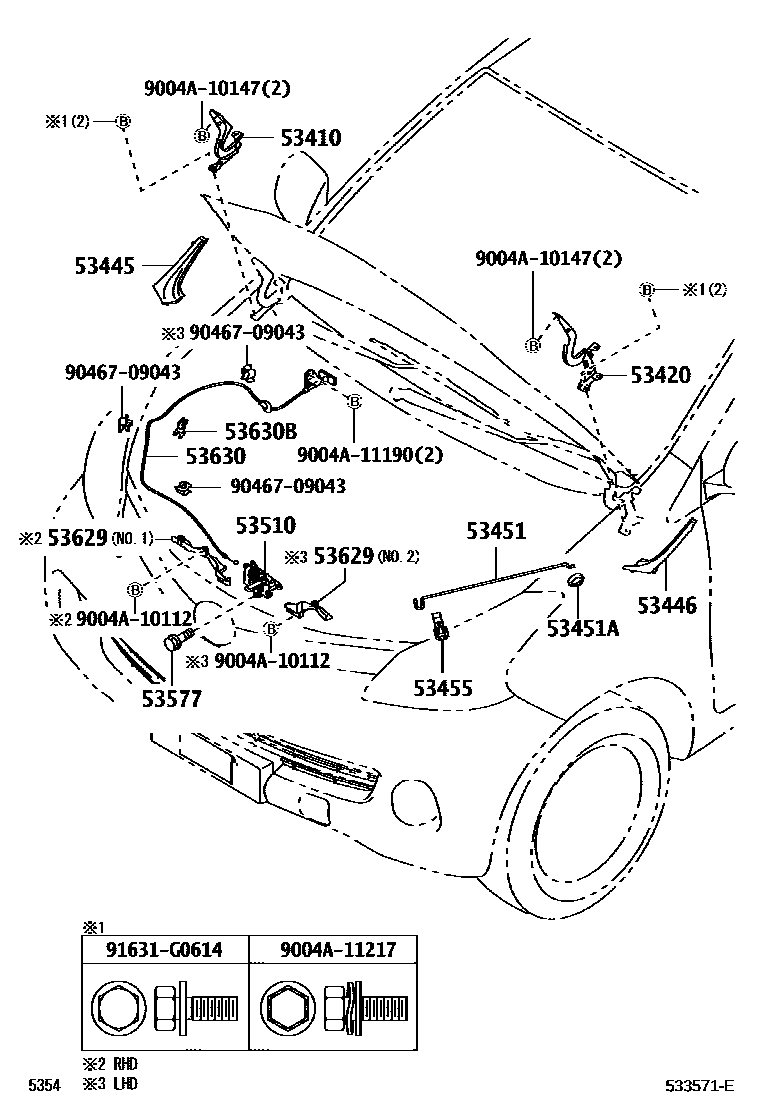

HOOD LOCK & HINGE

0001 1 0002 1

53410HINGE ASSY, HOOD, RH

main53410-BZ040iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

main53410-BZ060iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-202110

53420HINGE ASSY, HOOD, LH

main53420-BZ040iF65#..IDN201111-201508

main53420-BZ060iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-202110

53445COVER, HOOD HINGE, RH

main53445-BZ020iF65#201111-201206

sub53445-BZ021

main53445-BZ021iF65#..IDN201207-201508

main53445-BZ060iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-202110

53446COVER, HOOD HINGE, LH

main53446-BZ020iF65#201111-201206

sub53446-BZ021

main53446-BZ021iF65#..IDN201207-201508

main53446-BZ060iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-202110

53451ROD, HOOD SUPPORT

main53451-BZ120iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-202110

main53451-BZ160iF65#..IDN201111-201508

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90044-80667iF65#..(MID,SPO)..IDN201507-202110

main9004A-48054iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

53455CLAMP, HOOD SUPPORT ROD

main53455-BZ080iF65#..IDN201111-201508

sub53455-97401

sub53455-BZ290

main53455-BZ130iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-202110

53510LOCK ASSY, HOOD

main53510-BZ170iF65#..IDN201111-201508

main53510-BZ180iF651,652..LHD201112-201508

main53510-BZ250iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201507-202110

main53510-BZ260iF65#..LHD201508-201904

53577BOLT, HOOD LOCK

main90041-05207iF651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201510

M6,L=12

main90041-05589iF65#..(MID,SPO)..IDN202102-202110

M6,L=12

main90041-19677iF65#201111-201209

M6,L=14

main9004A-10091iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201511-202101

M6,L=12

main9004A-11235iF653..GEN,PHL,SA;F654..4AT..STD..TH;F654..MID..(GCC,GEN,MXC,PHL,SA,TH);F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-202110

M6,L=16

main9004A-11253iF65#..IDN201210-201508

M6,L=14

53629COVER, HOOD LOCK CONTROL CABLE

main53629-BZ020iF651,652..MA,SA,TH201111-201508

NO.1

main53639-BZ020iF651,652..LHD201112-201508

NO.2

main53639-BZ040iF654..GCC201508-202201

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-BZ160iF65#..IDN201111-201508

main53630-BZ170iF651,652..LHD201112-201508

main53630-BZ230iF654..MID..(SA,TH);F654..4AT..STD..TH;F654..(SPO,STD)..(MA,SA);F653..(LO,STD,VB)..(IDN,SA)201507-202110

main53630-BZ240iF65#..LHD201508-201904

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90044-64634iF65#..RHD201111-201505

main90044-64659iF651,652..LHD201112-201508

main90044-64879iF653,654201507-201705

main9004A-46314iF651,652..MA,SA,TH201506-201508

main9004A-46333iF653..IDN,MA;F654..MID..MA;F654..5F..(IDN,TH);F654..4AT..SPO..(IDN,TH)201706-202110

9004A10112

main9004A-10112

9004A10147

main9004A-10147

9004A11190

main9004A-11190

9004A11217

main9004A-11217

9046709043

main90467-09043

91631G0614

main91631-G0614

18 parts on this diagram · 2 diagrams in section
