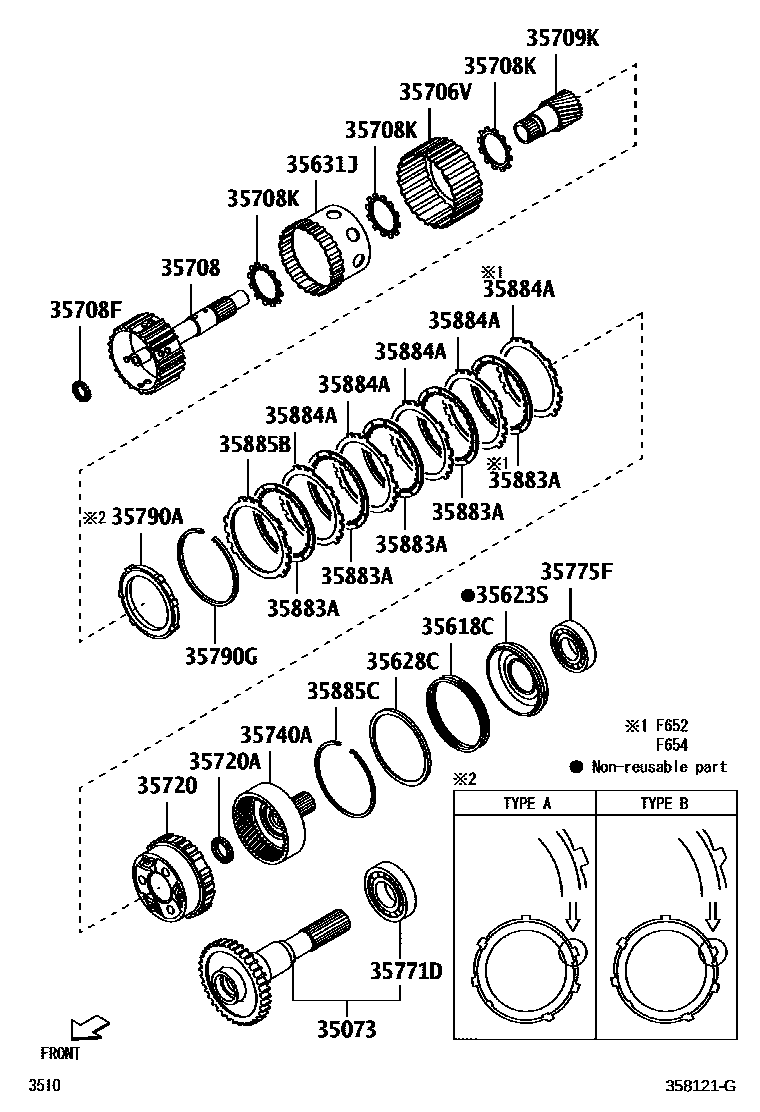

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

35073SHAFT SUB-ASSY, OUTPUT

main35073-B9010iF651,652..4AT..(GCC,GEN,MA,MXC,PHL,SA,TH)201111-202110

35618CRETURN SPRING SUB-ASSY, 1ST & REVERSE

main35618-B1010iF65#..4AT..IDN201111-202110

35623SPISTON,1ST & REVERSE BRAKE

main35623-B1010iF652..4AT..IDN201111-202110

main35623-B1020iF653..4AT201111-202110

35628CSEAT, 1ST & REVERSE BRAKE PISTON RETURN SPRING

main35628-97202iF65#..4AT..IDN201111-202110

35631JHUB, FORWARD CLUTCH, NO.1

main35631-97203iF65#..4AT201111-201312

sub35631-B1010

main35631-B1010iF65#..4AT..IDN201401-202110

35706VGEAR SUB ASSY, PLANETARY SUN

main35706-97203iF65#..4AT..IDN201111-202110

35708SHAFT SUB-ASSY, INTERMEDIATE

main35708-97203iF65#..4AT..IDN201111-202110

35708FBEARING, THRUST NEEDLE ROLLER (FOR INTERMEDIATE SHAFT)

main90043-74051iF65#..4AT..(MID,SPO)..IDN201111-202110

35708KBEARING, NEEDLE ROLLER(FOR INTERMEDIATE SHAFT)

main90043-74047iF65#..4AT..IDN201111-202110

35709KGEAR SUB-ASSY, REAR PLANETARY

main35709-97204iF65#..4AT..IDN201111-202110

35720GEAR ASSY, FRONT PLANETARY

main35720-97211iF65#..4AT..IDN201111-202110

35720ABEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR)

main90043-74043iF65#..4AT..IDN201111-202110

35740AGEAR ASSY,FRONT PLANETARY RING

main35740-97201iF65#..4AT..IDN201111-202110

35771DBALL BEARING, OUTPUT SHAFT

main90043-63277iF65#..4AT..IDN201111-202110

35775FBEARING, RADIAL BOLL

main90043-63273iF65#..4AT..IDN201111-202110

35790ACLUTCH ASSY, 1 WAY

main35790-97201iF65#..4AT201111-201401

sub35790-B1030

main35790-B1030iF65#..4AT201402-201408

TYPE A

sub35790-B1050

main35790-B1050iF65#..4AT..IDN201408-202110

TYPE B

35790GHOLE SNAP RING (FOR 1WAY CLUTCH)

main90045-21174iF65#..4AT..IDN201111-202110

35883ADISC, BRAKE

main35883-97204iF651..4AT201111-201209

sub35883-B1010

main35883-B1010iF652..4AT..IDN201210-201508

sub35883-B1030

main35883-B1020iF653..4AT201507-201706

sub35883-B5010

main35883-B5010iF653..4AT201707-202110

35884APLATE,BRAKE

main35884-97204iF651..4AT..IDN201111-201508

main35884-B1010iF653..4AT..(MID,SPO)..IDN201507-202110

35885BFLANGE, BRAKE

main35885-97213iF651,652..4AT..(GCC,GEN,MA,MXC,PHL,SA,TH)201111-201508

T=4.0

main35885-97214iF65#..4AT..IDN201111-201508

T=4.2

main35885-97215iF65#..4AT..IDN201111-201508

T=4.4

main35885-97216iF65#..4AT..IDN201111-201508

T=4.6

main35885-97217iF65#..4AT..IDN201111-201508

T=4.8

main35885-97218iF65#..4AT..IDN201111-201508

T=5.0

main35885-B1010iF65#..4AT..(MID,SPO)..IDN201507-202110

T=4.0

main35885-B1020iF653,654..4AT201507-202110

T=4.2

main35885-B1030iF653,654..4AT201507-202110

T=4.4

main35885-B1040iF653..4AT..STD;F653..MID..GEN;F654..4AT..MID..GCC;F654..4AT..(SPO,STD)..(GCC,MA,PHL,SA);F654..4AT..(MID,STD)..(GEN,MXC,PHL,TH)201507-202110

T=4.6

main35885-B1050iF653..4AT..STD;F653..MID..GEN;F654..4AT..MID..GCC;F654..4AT..(SPO,STD)..(GCC,MA,PHL,SA);F654..4AT..(MID,STD)..(GEN,MXC,PHL,TH)201507-202110

T=4.8

main35885-B1060iF653..4AT..STD;F653..MID..GEN;F654..4AT..MID..GCC;F654..4AT..(SPO,STD)..(GCC,MA,PHL,SA);F654..4AT..(MID,STD)..(GEN,MXC,PHL,TH)201507-202110

T=5.0

35885CRING,HOLE SNAP (FOR CLUTCH PLATE)

main90045-21175iF65#..4AT201111-201304

sub90045-21194

main90045-21194iF653..4AT..STD;F653..MID..GEN;F654..4AT..MID..GCC;F654..4AT..(SPO,STD)..(GCC,MA,PHL,SA);F654..4AT..(MID,STD)..(GEN,MXC,PHL,TH)201305-202110

21 parts on this diagram · 1 diagram in section
