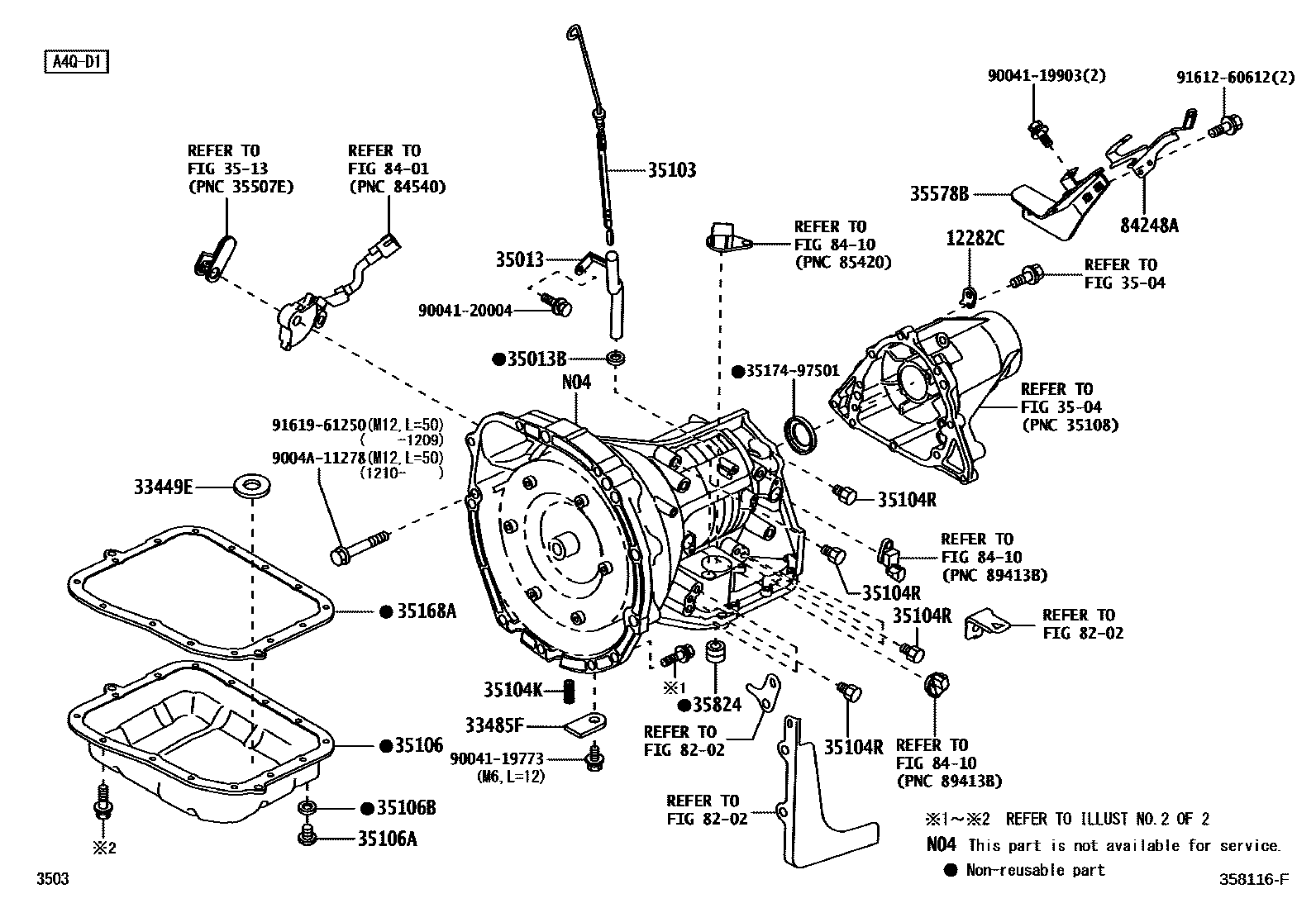

TRANSMISSION CASE & OIL PAN (ATM)

0001 1A4Q-D1 0002 1 0003 1 0004 1 0006 1A4Q-D1 0007 1

12282CHANGER, ENGINE, NO.2

main12282-B1020i1NRVE,2NRVE..F65#..4AT..(MID,SPO)..IDN201901-202110

main12282-B5030iK3VE,3SZVE..F65#..4AT..IDN201111-201507

33449EMAGNET, TRANSAXLE

main33449-B2010iF65#..4AT..(MID,SPO)..IDN201901-202110

33485FPLATE, SPEEDMETER LOCK

main33485-87201iF65#..4AT..IDN201111-201507

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-87402iF65#..4AT..IDN201111-201507

main35013-B1050iF653,654..4AT201507-201904

35013BRING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90043-01193iF65#..4AT..IDN201111-201507

3504

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-B0010iF65#..4AT..IDN201111-201507

main35103-BZ040iF654..MID..MA;F653..4AT..IDN;F654..4AT..SPO..(IDN,TH)201507-201901

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35141-B0011iF65#..4AT..(GCC,GEN,IDN,MXC,PHL,SA,TH)201111-201505

main35141-B0012iF65#..4AT..(GCC,GEN,IDN,MXC,PHL,SA,TH)201506-201507

main35141-B1070iF653,654..4AT..(GCC,GEN,IDN,MXC,PHL,SA,TH)201507-201904

35104KCOMPRESSION SPRING, TRANSAXLE CASE

main90045-01801iF65#..4AT..IDN201111-201507

main90045-01951iF653,654..4AT201507-201904

35104RPLUG, NO.2 (FOR TRANSAXLE CASE)

main90043-45040×8iF65#..4AT..IDN201111-201507

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-B1020iF65#..4AT..IDN201111-201507

main35160-B1050iF653,654..4AT201507-201904

35106APLUG SUB-ASSY, DRAIN (ATM)

main90043-41041iF65#..4AT..IDN201111-201507

35106BGASKET, DRAIN PLUG (ATM)

main90044-30281iF65#..4AT..IDN201111-201507

3513

35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN

main35168-B1020iF65#..4AT..IDN201111-201507

main35168-B1060iF653,654..4AT201507-201904

35578BBRACKET, TRANSMISSION CONTROL CABLE

main33524-B0010iF65#..4AT..IDN201111-201507

main33524-B1040iF653,654..4AT201507-201904

35824SEAL, BRAKE CYLINDER

main35824-97501iF65#..4AT..IDN201111-201507

8202

8401

8410

84248ACLAMP, SWITCH HARNESS

main84248-BZ020iF65#..4AT..IDN201111-201507

3517497501SEPARATOR, TRANSAXLE HOUSING OIL

main35174-97501

9004119773

main90041-19773

9004119903

main90041-19903

9004120004

main90041-20004

9004A11278

main9004A-11278

9161260612

main91612-60612

9161961250

main91619-61250

28 parts on this diagram · 6 diagrams in section
