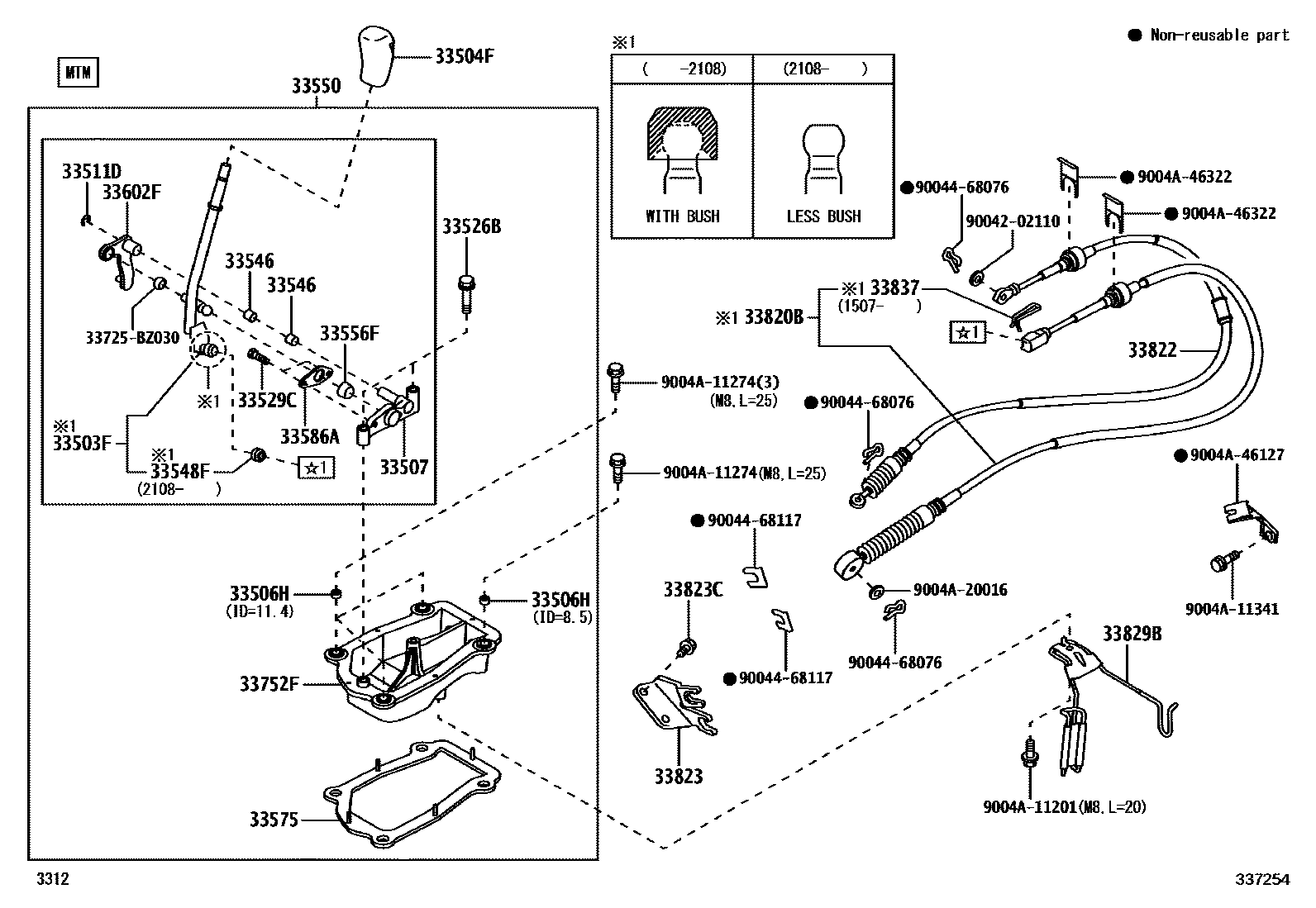

SHIFT LEVER & RETAINER

0001 1MTM 0002 1ATM 0003 1ATM

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33055-BZ040iF65#..5F201111-201904

main33055-BZ050iF65#..5F..(GCC,GEN,IDN,MXC,PHL,SA)201901-202108

main33055-BZ051iF65#..5F..(MID,SPO)..IDN202108-202110

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-BZ110-C0iF651..MID..GEN;F652..4AT..(GCC,GEN,PHL)201111-201712

BLACK,TRIM4#

main33504-BZ110-C0iF651..MID..GEN;F652..4AT..(GCC,GEN,PHL)201111-201712

BLACK,TRIM1#

main33504-BZ110-C1iF653..4AT..SPO;F653..4AT..PHL;F654..4AT..(MA,MXC,SA);F654..4AT..(MID,STD)..TH201712-202110

BLACK,TRIM4#

main33504-BZ110-C1iF65#..4AT..(GCC,GEN)201901

BLACK,TRIM1#,4#

main33504-BZ110-C1iF654..4AT..MXC;F65#..4AT..STD..(PHL,TH);F654..4AT..(SPO,STD)..(MA,SA)201712-202201

BLACK,TRIM1#

main33504-BZ120-C0iF653..5F..SPO201305-201712

BLACK,TRIM1#,W/COVER(SILVER)

main33504-BZ120-C0iF653..5F..SPO201305-201712

BLACK,TRIM4#,W/COVER(SILVER)

main33504-BZ120-C1iF65#..5F..MID..IDN201712-202201

BLACK,TRIM4#,W/COVER(SILVER)

main33504-BZ120-C1iF653..5F..SPO201712-202110

BLACK,TRIM1#,W/COVER(SILVER)

main33504-BZ140-C0iF654..4AT..SPO..(IDN,PHL,TH)201507-201712

BLACK,TRIM1#

main33504-BZ140-C1iF654..MID..TH;F654..SPO..PHL201712-202201

BLACK,TRIM1#

main33504-BZ180-C0iF652..5F..SPO201111-201712

BLACK,TRIM1#,L/COVER

main33504-BZ180-C0iF65#..5F..MID..IDN201111-201712

BLACK,TRIM4#,L/COVER

main33504-BZ180-C1iF653..5F..(GEN,MA,PHL,SA);F654..5F..(GEN,MXC,SA,TH)201712-201904

BLACK,TRIM1#,L/COVER

main33504-BZ180-C1iF654..5F..PHL;F653..5F..STD..IDN201712-201904

BLACK,TRIM4#,L/COVER

main33504-BZ180-C1iF654..5F..PHL;F653..5F..STD..IDN201901

BLACK,TRIM1#,4#,L/COVER

main33504-BZ230-C0iF654..5F..SPO201507-202110

BLACK,TRIM1#

33506HBUSH (FOR SHIFT LEVER RETAINER)

main33546-BZ010iF653,654..5F..(GCC,GEN,MXC,PHL,SA)201111-202110

ID=8.5

main33546-BZ020iF65#..5F..IDN201111-202110

ID=11.4

33507BRACKET SUB-ASSY, SHIFT LEVER HOUSING

main33507-BZ010iF65#..5F201111-202110

33511DRING, E (FOR FLOOR SHIFT CONTROL SHAFT)

main96160-00800iF653,654..5F201111-202110

33526BBOLT, SHIFT LEVER HOUSING SET

main81134-B4010iF653,654..5F201111-202110

33529CBOLT, SHIFT LEVER

main90041-05071iF654..5F..(GCC,GEN,MXC,PHL,SA);F653..5F..(LO,STD,VB)..(GEN,IDN,PHL,SA)201111-202110

33546BUSH(FOR CONTROL SHIFT LEVER RETAINER)

main33548-BZ110iF65#..5F..(MID,SPO)..IDN201111-202110

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-BZ080iF65#..5F..(GCC,GEN,IDN,MXC,PHL,SA)201111-202108

33550FLOOR SHIFT ASSY, TRANSMISSION

main33550-BZ011iF651,652..5F..(GCC,GEN,MA,MXC,PHL,SA,TH)201111-202108

main33550-BZ012iF65#..5F202108

main33550-BZ130iF653,654..4AT..SPO;F653,654..4AT..MID..(GCC,GEN,MA,MXC,PHL)201111-201604

sub33550-BZ131

main33550-BZ131iF65#..LHD..4AT..MID201605-201904

main33550-BZ180-C0iF652..4AT..GCC201111-201604

BLACK,TRIM4#

sub33550-BZ181

main33550-BZ180-C0iF654..MID..TH;F65#..4AT..STD..(MA,PHL,SA,TH)201111-201604

BLACK,TRIM1#

sub33550-BZ181

main33550-BZ181-C0iF654..4AT..STD..GCC201605-201901

BLACK,TRIM4#

main33550-BZ181-C0iF654..4AT..STD..GCC201605-201904

BLACK,TRIM1#

main33550-BZ390-C0iF654..4AT..STD..GCC201609-201904

BLACK,TRIM1#

main33550-BZ390-C0iF654..4AT..STD..GCC201609-201904

BLACK,TRIM4#

main33550-BZ400iF65#..LHD..4AT..(MID,SPO)201609-201904

main33550-BZ410-B0iF65#..4AT..SPO..IDN201901-202110

SILVER,TRIM1#

main33550-BZ430-B0iF654..4AT..IDN201901-202110

RHD GENERAL COUNTRIES,SILVER,TRIM1#

main33550-BZ430-B0iF654..4AT..IDN201901-202110

SRI LANKA,SILVER,TRIM1#

main33550-BZ430-B0iF654..(MID,SPO)..(MA,TH)201904-202201

SILVER,TRIM1#

main33550-BZ470-C0iF653..4AT..MID..IDN201901-202110

BLACK,TRIM4#

main33550-BZ470-C0iF653..4AT..STD..IDN201901

BLACK,TRIM1#,4#

main33550-BZ470-C0iF654..RHD..4AT..STD201904-202201

BLACK,TRIM1#

main33550-BZ500-C1iF654..4AT..STD..GCC201904-202201

BLACK,TRIM1#

main33550-BZ500-C1iF653..4AT..PHL201904-202201

BLACK,TRIM4#

main33550-BZ510-B0iF654..4AT..MXC;F654..SPO..PHL201904-202201

SILVER,TRIM1#,4#

main33550-BZ510-B0iF654..4AT..MID..PHL201904-202201

SILVER,TRIM1#

main33550-BZ510-B0iF65#..4AT..MID..(GCC,GEN)201904

SILVER,TRIM4#

33556FSEAT, TRANSMISSION SHIFT LEVER BALL

main33556-BZ010iF65#..5F201111-202110

33575RETAINER, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33575-BZ010iF65#..5F..IDN201111-202110

33586ASTOPPER, CONTROL LEVER (FOR FLOOR SHIFT)

main33586-BZ020iF653,654..5F201111-202110

33602FLEVER SUB-ASSY, SELECT (FOR FLOOR SHIFT)

main33602-BZ030iF65#..5F201111-202110

33752FSUPPORT, CONTROL LINK (FOR FLOOR SHIFT)

main33752-BZ010iF65#..5F..IDN201111-202110

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-BZ020iF65#..4AT..IDN201111-201508

main33820-BZ021iF653..4AT..STD;F653..MID..GEN;F654..4AT..MID..GCC;F654..4AT..(SPO,STD)..(GCC,MA,PHL,SA);F654..4AT..(MID,STD)..(GEN,MXC,PHL,TH)201507-202110

main33820-BZ190iF651,652..5F..(GCC,GEN,MA,MXC,PHL,SA,TH)201111-201508

main33820-BZ191iF653,654..5F..(GCC,GEN,MXC,PHL,SA)201507-202108

main33820-BZ192iF65#..5F..(MID,SPO)..IDN202108-202110

33822CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)

main33830-BZ010iF651,652..5F..(GCC,GEN,MA,MXC,PHL,SA,TH)201111-201508

main33830-BZ011iF653,654..5F..(IDN,MA,TH)201507-202110

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-BZ010iF65#..5F..IDN201111-201508

main33823-BZ011iF653,654..5F..(IDN,MA,TH)201507-202110

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main90041-05340iF651,652..5F..(GCC,GEN,MA,MXC,PHL,SA,TH)201111-201512

main9004A-10213iF65#..5F..(GCC,GEN,MXC,PHL,SA)201512-202112

sub90041-05340

33829BCLAMP, TRANSMISSION CONTROL CABLE

main33829-BZ040iF65#..5F..(MID,SPO)..IDN201111-202110

main33829-BZ080iF654..4AT..MID..GCC;F654..4AT..(SPO,STD)..(GCC,MA,PHL,SA);F653,654..4AT..(MID,STD)..(GEN,MXC,PHL,TH)201111-202110

33837CLIP, TRANSMISSION CONTROL CABLE ADJUST

main33837-B6010iF653,654..5F201507-202108

main33837-B6020iF653..5F..(LO,STD,VB);F654..5F..(GCC,GEN,MXC,PHL,SA)202108-202110

33725BZ030

main33725-BZ030

9004202110

main90042-02110

9004468076

main90044-68076

9004468117

main90044-68117

9004A11201

main9004A-11201

9004A11274

main9004A-11274

9004A11341

main9004A-11341

9004A20016

main9004A-20016

9004A46127

main9004A-46127

9004A46322

main9004A-46322

31 parts on this diagram · 3 diagrams in section
