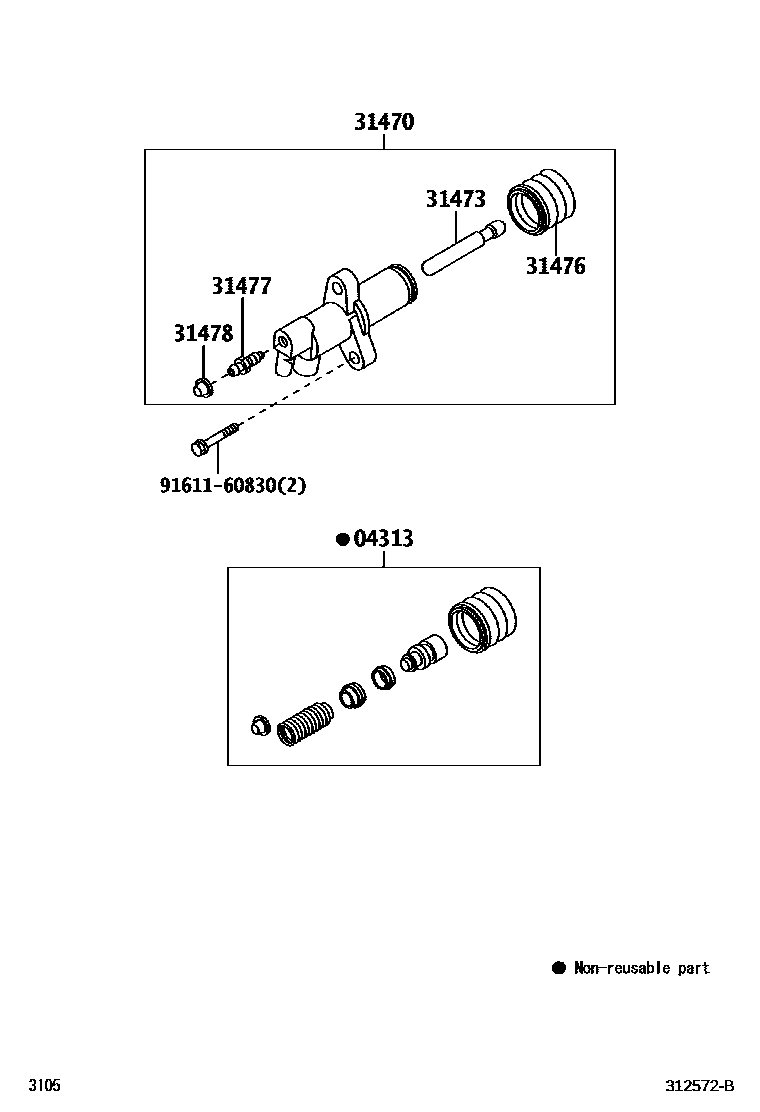

CLUTCH RELEASE CYLINDER

0001 1 0002 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-14030iF652..5F..IDN201111-202110

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-B0010iF652..5F201111-201208

main31470-BZ050iF652..5F..IDN201209-202110

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-60170iF652..5F201111-201209

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iF652..5F201111-201209

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iF652..5F201111-201209

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iF652..5F201111-201209

9161160830

main91611-60830

7 parts on this diagram · 2 diagrams in section
