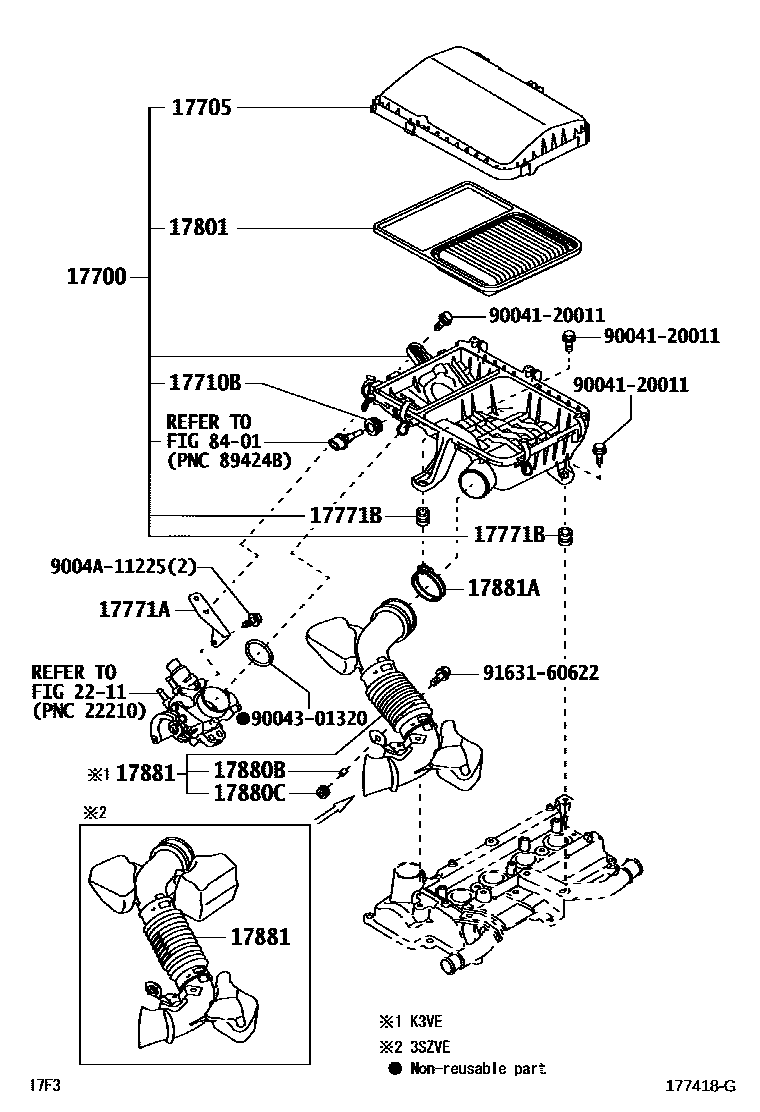

AIR CLEANER

0001 1 0002 1

17700CLEANER ASSY, AIR

main17700-BZ071iK3VE,3SZVE..F65#201111-201408

sub17700-BZ190

main17700-BZ170i1NRVE..F653..GEN,PHL,SA;2NRVE..F654..4AT..STD..TH;2NRVE..F654..MID..(GCC,GEN,MXC,PHL,SA,TH);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201507-202110

main17700-BZ190iK3VE,3SZVE..F651,652..GCC,GEN,MA,MXC,PHL,SA,TH201409-201508

sub17700-BZ191

17705CAP SUB-ASSY, AIR CLEANER

main17705-BZ071iK3VE,3SZVE..F65#..IDN201111-201508

17710BGROMMET

main90044-80530iK3VE,3SZVE..F65#..IDN201111-201508

17771BRACKET, AIR CLEANER INLET DUCT

main17771-BZ080i1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)201507-202110

17771ABRACKET, AIR CLEANER

main17771-BZ090iK3VE,3SZVE..F65#..IDN201111-201508

17771BGROMMET(FOR AIR CLEANER BRACKET)

main90044-80392iK3VE,3SZVE..F65#201111-202110

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-BZ050iK3VE,3SZVE..F65#..IDN201111-201508

sub17801-BZ051

main17801-BZ120i1NRVE,2NRVE..F653,654201507-201511

sub17801-BZ150

main17801-BZ150i1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)201511-201901

W/ PART NUMBER,W/PART NUMBER

main17801-BZ150i1NRVE..F653..GEN,PHL,SA;2NRVE..F654..4AT..STD..TH;2NRVE..F654..MID..(GCC,GEN,MXC,PHL,SA,TH);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201511-201904

W/PART NUMBER,W/ PART NUMBER

main17801-BZ150i1NRVE,2NRVE..F65#..(MID,SPO)..IDN201901-202110

17880BCOLLAR(FOR AIR CLEANER HOSE)

main9004B-38004iK3VE..F651201111-201507

17880CGROMMET(FOR AIR CLEANER HOSE)

main9004B-48001iK3VE..F651201111-201507

17881HOSE, AIR CLEANER, NO.1

main17881-BZ070iK3VE..F651..GEN,MA,PHL,SA201111-201508

main17881-BZ150i3SZVE..F652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

main17881-BZ170i1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)201507-202110

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main9004A-46128iK3VE,3SZVE..F65#..IDN201111-202110

2211

8401

9004120011

main90041-20011

9004301320

main90043-01320

9004A11225

main9004A-11225

9163160622

main91631-60622

17 parts on this diagram · 2 diagrams in section
