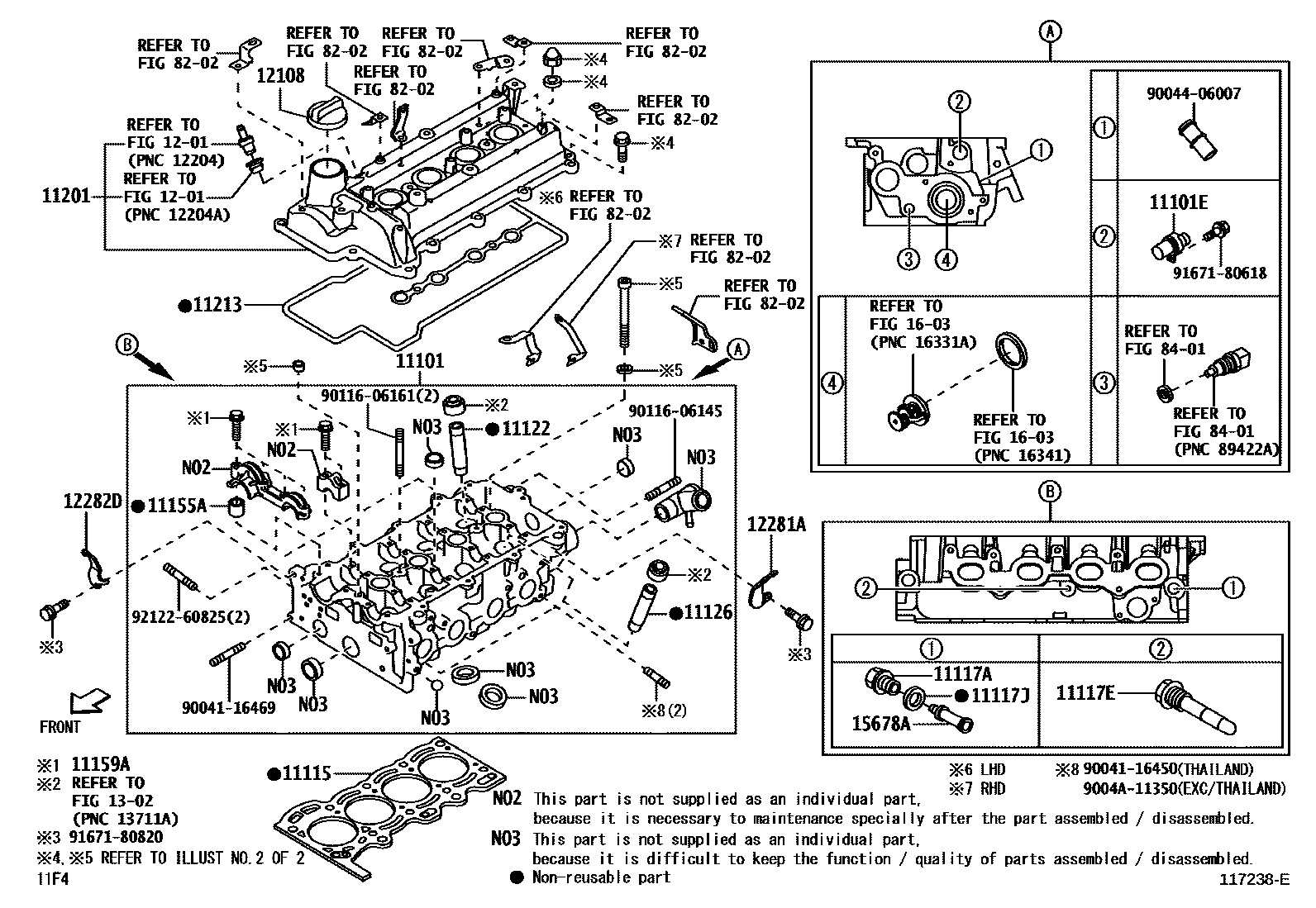

CYLINDER HEAD

0001 1 0002 1 0003 1 0004 1

11101HEAD SUB-ASSY, CYLINDER

main11101-B9320iK3VE,3SZVE..F65#..IDN201111-201508

main11101-B9330iK3VE,3SZVE..F651,652..GEN,MXC,SA201111-201508

main11101-B9620i1NRVE,2NRVE..F653,654201507-201605

sub11101-B9622

main11101-B9622i1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)201605-202110

11101ESENSOR, CAM POSITION

main19300-BZ020iK3VE,3SZVE..F651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

main9004A-19003i1NRVE,2NRVE..F653,654201507-201612

sub90919-T5002

main90919-T5002i1NRVE..F653..GEN,PHL,SA;2NRVE..F654..4AT..STD..TH;2NRVE..F654..MID..(GCC,GEN,MXC,PHL,SA,TH);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA)201612-202110

11115GASKET, CYLINDER HEAD

main11115-0Y030i2NRVE..F654..4AT..STD..TH;1NRVE..F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA);1NRVE,2NRVE..F65#..MID..(GCC,GEN,MXC,PHL,SA,TH)201507-202110

main11115-B1030iK3VE,3SZVE..F65#..IDN201111-201508

T=0.41

11117APLUG, W/HEAD TAPER SCREW, NO.1

main90341-14013iK3VE,3SZVE..F65#..IDN201111-201508

11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1

main90043-39124iK3VE,3SZVE..F65#..IDN201111-201508

11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)

main90430-14009iK3VE,3SZVE..F65#..IDN201111-201508

11122BUSH, INTAKE VALVE GUIDE

main11122-31041i1NRVE,2NRVE..F653,654201507-201709

STD

sub11122-47010

main11122-47020i1NRVE,2NRVE..F65#201709-202110

STD

main11122-BZ010iK3VE,3SZVE..F651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

STD

main11123-31041i1NRVE,2NRVE..F653,654201507-201709

O/S 0.05

sub11123-47010

main11123-47020i1NRVE,2NRVE..F65#201709-202110

O/S 0.05

main11123-BZ010iK3VE,3SZVE..F65#..IDN201111-201508

O/S 0.05

11126BUSH, EXHAUST VALVE GUIDE

main11122-31041i1NRVE,2NRVE..F653,654201507-201709

STD

sub11122-47010

main11122-47020i1NRVE,2NRVE..F65#201709-202110

STD

main11122-BZ010iK3VE,3SZVE..F65#..IDN201111-201508

STD

main11123-31041i1NRVE,2NRVE..F653,654201507-201709

O/S 0.05

sub11123-47010

main11123-47020i1NRVE,2NRVE..F65#201709-202110

O/S 0.05

main11123-BZ010iK3VE,3SZVE..F65#..IDN201111-201508

O/S 0.05

11155APIN, RING W/HEAD

main90042-53010iK3VE,3SZVE..F65#..IDN201111-201508

main90253-11005i1NRVE,2NRVE..F65#..(MID,SPO)..IDN201507-202110

11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)

main90041-19911iK3VE,3SZVE..F651,652..GEN,MXC,SA,TH201111-201508

main9004A-11304iK3VE,3SZVE..F65#..GCC,IDN,MA,PHL201111-201507

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-BZ040iK3VE,3SZVE..F65#..IDN201111-201508

main11201-BZ100i1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)201507-202110

11213GASKET, CYLINDER HEAD COVER

main11213-0Y030i2NRVE..F654..4AT..STD..TH;1NRVE..F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA);1NRVE,2NRVE..F65#..MID..(GCC,GEN,MXC,PHL,SA,TH)201507-202110

main11213-97401iK3VE,3SZVE..F65#..IDN201112-201508

JAPAN SOURCED PARTS

main11213-BZ010iK3VE,3SZVE..F65#..IDN201112-201508

LOCAL SOURCED PARTS

sub11213-BZ011

main11213-BZ010iK3VE,3SZVE..F65#201111-201112

sub11213-BZ011

1201

12108CAP SUB-ASSY, OIL FILLER

main12180-0H020i1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)201507-202110

main12180-BZ010iK3VE,3SZVE..F65#201111-201507

main12180-BZ060iK3VE,3SZVE..F651,652201507-201508

12281AHANGER, ENGINE, NO.1

main12281-0Y070i1NRVE..F653..IDN,MA;2NRVE..F654..MID..MA;2NRVE..F654..5F..(IDN,TH);2NRVE..F654..4AT..SPO..(IDN,TH)201507-202006

main12281-97401iK3VE,3SZVE..F65#..IDN201111-201508

BLACK

main12281-97402iK3VE,3SZVE..F65#..IDN201111-201508

SILVER

main12281-BZ080i1NRVE,2NRVE..F65#202006-202301

12282DHANGER, ENGINE, NO.2

main12282-97403iK3VE,3SZVE..F65#..IDN201111-201508

BLACK

main12282-97404iK3VE,3SZVE..F65#..IDN201111-201508

SILVER

main12282-BZ140i1NRVE,2NRVE..F653,654201507-201709

BLACK

main12282-BZ141i2NRVE..F654..4AT..STD..TH;1NRVE..F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA);1NRVE,2NRVE..F65#..MID..(GCC,GEN,MXC,PHL,SA,TH)201709-202110

BLACK

main12282-BZ150i1NRVE,2NRVE..F653,654201507-201612

SILVER

1302

15678AFILTER, OIL CONTROL VALVE

main15678-0Y010i2NRVE..F654..4AT..STD..TH;1NRVE..F653..(LO,STD,VB)..(GEN,IDN,PHL,SA);2NRVE..F654..(SPO,STD)..(GCC,GEN,MA,PHL,SA);1NRVE,2NRVE..F65#..MID..(GCC,GEN,MXC,PHL,SA,TH)201507-202110

main15678-21010iK3VE,3SZVE..F651,652..GCC,GEN,MA,MXC,PHL,SA,TH201111-201508

1603

8202

8401

9004116450

main90041-16450

9004116469

main90041-16469

9004406007

main90044-06007

9004A11350

main9004A-11350

9011606145

main90116-06145

9011606161

main90116-06161

9167180618

main91671-80618

9167180820

main91671-80820

9212260825

main92122-60825

30 parts on this diagram · 4 diagrams in section
