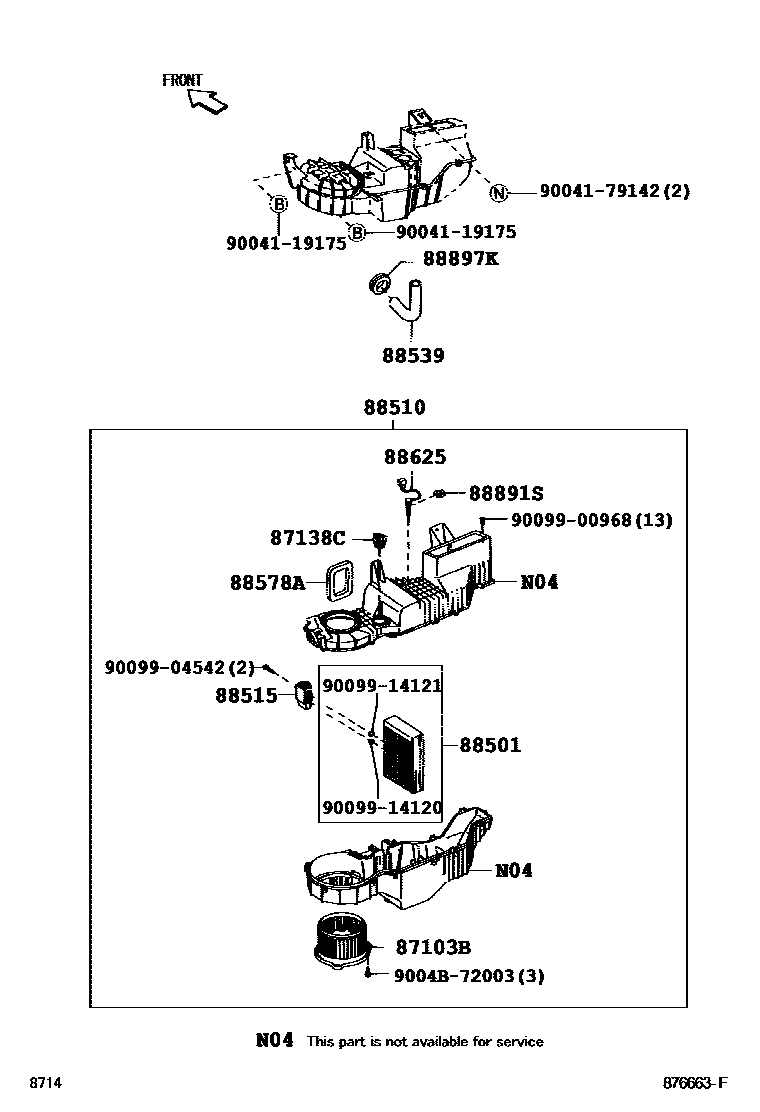

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1L/HEATER 0002 1L/HEATER 0003 1L/HEATER 0004 1DUAL AIR-CON 0005 1DUAL AIR-CON 0006 1DUAL AIR-CON 0007 1L/HEATER 0008 1L/HEATER 0009 1L/HEATER 0010 1L/HEATER 0011 1L/HEATER 0012 1W/HEATER 0013 1W/HEATER 0014 1W/HEATER 0015 1DUAL AIR-CON 0016 1DUAL AIR-CON

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-97209iF60#..RHD..GEN200608-200809

main87103-BZ010iF601..LVVT200312-200608

main87103-BZ020iF601..4AT200404-200911

87138CRESISTOR, BLOWER

main87138-87401iF601..4AT200312-200911

main87138-97206iF601..CTM,DLX,J,STD;F602..(DLX,G,GL)..(GEN,MXC,PHL,SA)200608

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-BZ011iF601..5F..MA;F601..RHD..(GEN,IDN);F602..RHD..(GEN,IDN,MA,TH)200312-200911

main88501-BZ030iF60#..SA200608

main88501-BZ040iF60#..LHD200608

88510UNIT ASSY, COOLER

main88510-BZ010iF601..LVVT200312-200608

main88510-BZ020iF601..WVVT..(BRU,IDN,TH)200404-200608

main88510-BZ050iF60#..RHD..GEN200608-200809

main88510-BZ060iF602..TH200608

main88510-BZ070iF601..4AT200609-200911

main88510-BZ080iF60#..PHL200610

main88510-BZ130iF60#..IDN200809

88515VALVE, COOLER EXPANSION

main88515-52020iF601..LVVT200312-200608

sub88515-52040

main88515-52040iF601..MA200410-200608

main88515-BZ020iF601..CTM,DLX,J,STD;F602..(DLX,G,GL)..(GEN,MXC,PHL,SA)200608

main88515-BZ090iF601..5F..MA;F601..RHD..(GEN,IDN);F602..RHD..(GEN,IDN,MA,TH)200608-200911

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-BZ010iF601..BRU,IDN,TH200312-200608

sub88539-BZ011

main88539-BZ030iF601..MA200410-200608

sub88539-BZ031

88578APACKING, COOLER STABILIZER AMPLIFIER

main9004B-54002iF601..WVVT200312-200608

88625THERMISTOR, COOLER, NO.1

main88625-BZ010iF601..LVVT200312-200608

main88625-BZ020iF601..MA200410-200608

main88625-BZ030iF601..4AT200608-200911

main88625-BZ290iF601..CTM,DLX,J,STD;F602..(DLX,G,GL)..(GEN,MXC,PHL,SA)200608

88891SCOVER, COOLER, NO.1

main88891-50060iF601..WVVT200312-200608

88897KGROMMET, (FOR COOLER PIPE)

main88897-87Z13iF60#..GEN,IDN,MXC,PHL,SA,TH200312-200608

main88897-BZ010iF602..MA;F601..5F..MA200410-200911

9004119175

main90041-19175

9004179142

main90041-79142

9004B72003

main9004B-72003

9009900968

main90099-00968

9009904542

main90099-04542

9009914120

main90099-14120

9009914121

main90099-14121

17 parts on this diagram · 16 diagrams in section
