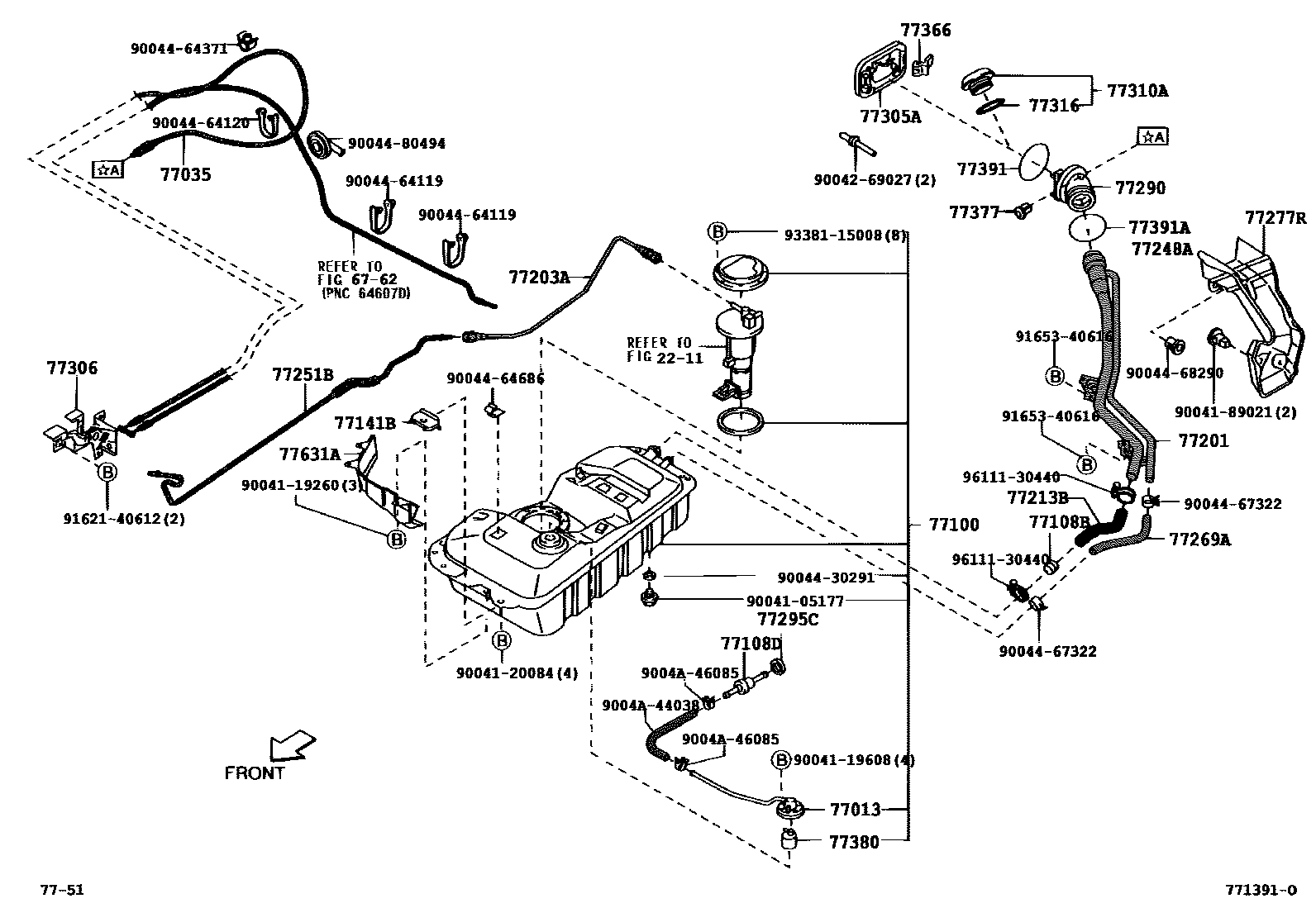

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1CANISTER

2211

6762

77013TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2

main77013-BZ010iF601200312-200911

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-BZ010iF602..RHD;F601..5F..MA;F601..RHD..(GEN,IDN,SA)200312-200911

main77035-BZ030iF60#..LHD200608

77100TANK ASSY, FUEL

main77001-BZ010iF601..BRU,IDN,TH200312-200601

main77001-BZ020iF601..BRU,IDN,TH200601-200608

sub77001-BZ590

main77001-BZ060iF601..4AT200410-200911

77108BVALVE SUB-ASSY, FUEL TANK FILLER CHECK

main77108-B2010iF601200312-200911

77108DVALVE, FUEL TANK FILLER CHECK

main77108-BZ010iF601..LVVT200312-200608

77141BREINFORCEMENT, FUEL TANK FLANGE, NO.1

main77141-BZ010iF601200312-200911

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-BZ010iF601..LVVT200312-200608

main77201-BZ020iF602;F601..5F..MA;F601..GEN,IDN,PHL,SA200404-200911

77203ATUBE SUB-ASSY, FUEL SUCTION

main77203-BZ010iF601..4AT200312-200911

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-B0010iF602..MXC,TH200512-200608

main77213-BZ010iF601..5F..MA;F601..GEN,IDN,PHL,SA;F602..GEN,IDN,MA,PHL,SA200312-200911

sub77213-B0010

sub77213-BZ190

main77213-BZ030iF601..TH200410-200512

77248AHOLDER, FUEL TANK FILLER PIPE COVER

main77248-20030iF601200404-200911

77251BTUBE, FUEL MAIN

main77251-BZ010iF602;F601..5F..MA;F601..GEN,IDN,PHL,SA200312-200911

77269AHOSE, FUEL TANK BREATHER

main77269-B0010iF601..TH200512-200608

main77269-BZ010iF601..5F..MA;F601..GEN,IDN,PHL,SA;F602..GEN,IDN,MA,PHL,SA200312-200911

main77269-BZ030iF601..TH200410-200512

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-BZ010iF601200312-200504

main77277-BZ011iF601200505-200906

sub77277-BZ012

main77277-BZ012iF601..4AT200907-200911

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77293-BZ010iF601200312-200911

sub77293-BZ011

77295CGROMMET, FUEL TUBE

main77295-27010iF601..LVVT200312-200608

77305ALID SUB-ASSY, FUEL FILLER OPENING

main77305-B0010iF601200312-200608

sub77305-B0030

main77305-B0030iF60#200608-200803

sub77305-BZ050

main77305-BZ050iF601..4AT200804-200911

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main64606-BZ010iF601..4AT200312-200911

main64606-BZ040iF60#..LHD200608

77310ACAP ASSY, FUEL TANK

main77300-28010iF601..TH200410-200608

main77310-48010iF601..TH200312-200911

77316GASKET, FUEL TANK CAP

main77316-16010iF601200312-200911

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-30080iF601..4AT200312-200911

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-12050iF601200312-200911

77380VALVE ASSY, FUEL CUT OFF

main77380-0K010iF602;F601..5F..MA;F601..GEN,IDN,PHL,SA200312-200911

77391RING, FUEL INLET BOX

main77391-B0010iF601200312-200911

main77391-BZ010iF60#..MA200610-200611

77391ARING, FUEL INLET BOX

main77391-B0020iF601200312-200911

main77391-BZ040iF60#..GEN,IDN,MXC,PHL,SA,TH200811

77631APROTECTOR, FUEL TANK, LOWER CENTER

main77631-BZ010iF601..4AT200312-200911

sub77631-BZ061

9004105177

main90041-05177

9004119260

main90041-19260

9004119608

main90041-19608

9004120084

main90041-20084

9004189021

main90041-89021

9004269027

main90042-69027

9004430291

main90044-30291

9004464119

main90044-64119

9004464120

main90044-64120

9004464371

main90044-64371

9004464686

main90044-64686

9004467322

main90044-67322

9004468290

main90044-68290

9004480494

main90044-80494

9004A44038

main9004A-44038

9004A46085

main9004A-46085

9162140612

main91621-40612

9165340616

main91653-40616

9338115008

main93381-15008

9611130440

main96111-30440

47 parts on this diagram · 4 diagrams in section
