ASH RECEPTACLE

74102ARECEPTACLE ASSY, FRONT ASH

main74102-BZ010-B0iF601..CTM,J;F602..S..TH;F601..DLX..GEN;F602..(E,S)..MA200312-200608

DK.GRAY,TRIM1#

main74102-BZ010-E0iF602..DLX,E,G,GL,J;F602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD)200608-200810

SANDAL WOOD,TRIM0#

main74102-BZ010-E1iF601..4AT200810-200911

ASH BROWN,TRIM4#

main74102-BZ030iF601..LIMD200412-200608

74109ABOX SUB-ASSY, ASH RECEPTACLE

main74109-0B010-B1iF602..S..TH200312-200708

DK.GRAY,TRIM1#

main74109-0B010-E1iF60#..MA200608-200811

SANDAL WOOD,TRIM0#

main74109-0B010-E2iF60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH)200810-201011

ASH BROWN,TRIM4#

74127BEZEL, FRONT ASH RECEPTACLE

main74128-BZ010iF601200312-200911

74135ARETAINER, REAR ASH RECEPTACLE, NO.1

main74135-0B010iF601..E..TH;F601..G,GL,LIMD,S200312-200911

74137BRETAINER, REAR ASH RECEPTACLE, INNER

main74137-0B010iF601..E..TH;F601..G,GL,LIMD,S200312-200911

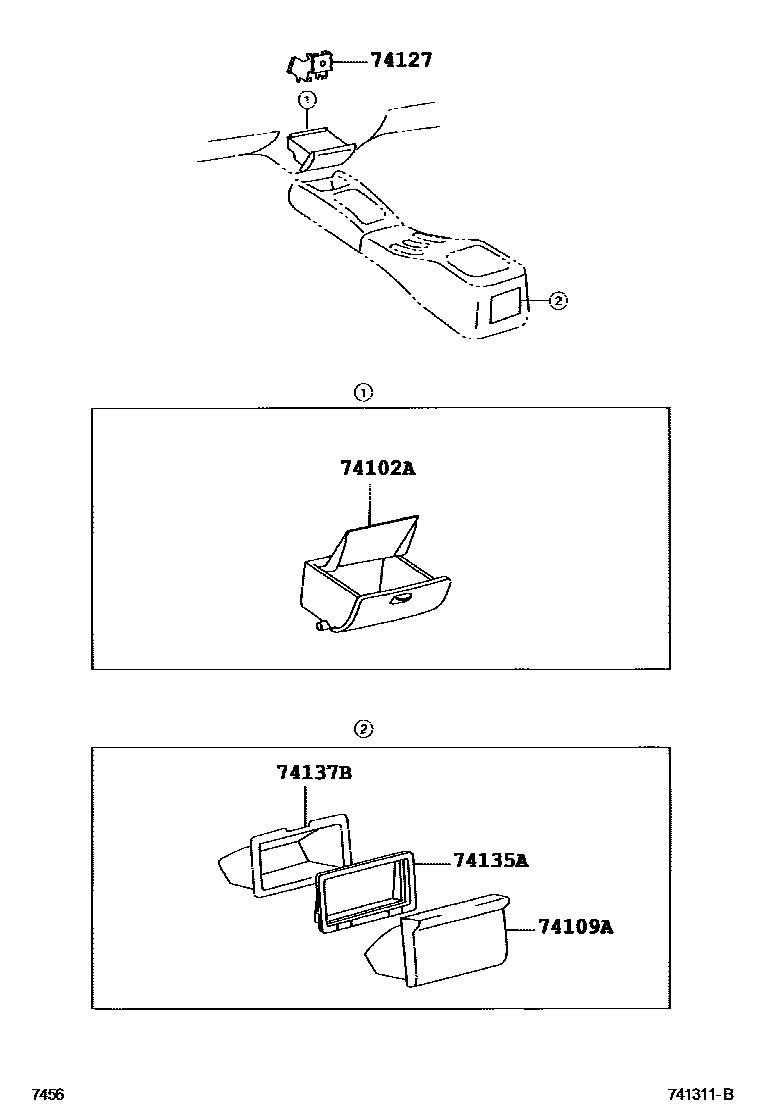

5 parts on this diagram · 1 diagram in section
