SEAT BELT

0001 1FRONT 0002 1FRONT 0006 1FRONT 0007 1REAR 0008 1REAR 0012 1REAR

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-BZ011-A0iF602..(E,G,GL,J)..(GEN,MXC,PHL,TH);F60#..RHD..(E,G,S,STD)..(GEN,IDN,SA)200608-200810

IVORY,TRIM0#

main73210-BZ011-B0iF601..TH200404-200409

GRAY

main73210-BZ011-B0iF601..(E,G,GL,LIMD)..(BRU,IDN,TH)200312-200608

GRAY,TRIM1#

main73210-BZ011-E0iF60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH)200810

GREGE,TRIM4#

main73210-BZ030-A0iF601..MA200609-200811

IVORY,TRIM0#

main73210-BZ030-B0iF602..E..MA;F601..5F..MA200410-200608

GRAY,TRIM1#

main73210-BZ030-E0iF601..4AT200811-201011

GREGE,TRIM4#

main73210-BZ050-A0iF60#..(DLX,GL)..SA200608-200810

IVORY,TRIM0#

main73210-BZ050-B0iF602..(GL,S)..(SA,TH)200409-200608

GRAY,TRIM1#

main73210-BZ110-A0iF602..MA200609-200811

IVORY,TRIM0#

main73210-BZ110-B0iF602..(G,S)..MA201011

SHADOW GRAY,TRIM1#

main73210-BZ110-E0iF602..(G,S)..MA200811-201011

GREGE,TRIM4#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-BZ011-A0iF602..RHD..(E,GL,J);F60#..RHD..(G,S)..(GEN,IDN)200608-200810

IVORY,TRIM0#

main73220-BZ011-B0iF601..E..TH;F601..(G,GL,LIMD,S)..(BRU,IDN,TH)200312-200705

GRAY,TRIM1#

main73220-BZ011-E0iF602..(E,J)..TH;F60#..RHD..(G,S)..(GEN,IDN)200810

GREGE,TRIM4#

main73220-BZ021-A0iF60#..(DLX,E,STD)..(IDN,SA)200608-200810

IVORY,TRIM0#

main73220-BZ021-B0iF601..TH200404-200409

GRAY

main73220-BZ021-B0iF601..E..IDN200312-200608

GRAY,TRIM1#

main73220-BZ021-E0iF601..(E,XI)..IDN200810

GREGE,TRIM4#

main73220-BZ050-A0iF60#..MA200609-200811

IVORY,TRIM0#

main73220-BZ050-B0iF601..MA200410-200608

GRAY,TRIM1#

main73220-BZ050-E0iF601..4AT200811-201011

GREGE,TRIM4#

main73220-BZ100-A0iF602..LHD..G200610-200810

IVORY,TRIM0#

main73220-BZ100-B0iF601..PHL200705

DK.GRAY,TRIM1#

main73220-BZ100-E0iF602..LHD..G200810

GREGE,TRIM4#

main73220-BZ110-A0iF602..MXC200610-200810

IVORY,TRIM0#

main73220-BZ110-E0iF602..MXC200810

GREGE,TRIM4#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-BZ010-A0iF602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD)..(GEN,IDN,SA);F602..(DLX,E,G,GL,J)..(GEN,MXC,PHL,SA,TH)200608-200810

IVORY,TRIM0#

main73230-BZ010-B0iF60#..DLX..SA200312-200608

DK.GRAY,TRIM1#

main73230-BZ010-B0iF601..TH200404-200409

DK.GRAY

main73230-BZ010-E0iF60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH)200810

GREGE,TRIM4#

main73230-BZ040-B0iF601..MA200410-200608

DK.GRAY,TRIM1#

main73230-BZ140-A0iF60#..MA200609-200811

IVORY,TRIM0#

main73230-BZ140-B0iF602..MA;F601..5F..MA201011

DK.GRAY,TRIM1#

main73230-BZ140-E0iF602..MA;F601..5F..MA200811-201011

GREGE,TRIM4#

73237ACOVER, SHOULDER BELT ANCHOR

main73237-BZ010-A0iF602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD)..(GEN,IDN,SA);F602..(DLX,E,G,GL,J)..(GEN,MXC,PHL,SA,TH)200608-200810

IVORY,TRIM0#

main73237-BZ010-B0iF60#..DLX..SA200312-200608

LT.GRAY,TRIM1#

main73237-BZ010-B0iF601..TH200404-200409

LT.GRAY

main73237-BZ010-E0iF60#..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH)200810

GREGE,TRIM4#

main73237-BZ030-A0iF60#..MA200609-200811

IVORY,TRIM0#

main73237-BZ030-B0iF602..MA;F601..5F..MA200410-200608

LT.GRAY,TRIM1#

main73237-BZ030-E0iF601..4AT200811-201011

GREGE,TRIM4#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-BZ010-A0iF60#..RHD..(GEN,IDN)200608-200810

IVORY,TRIM0#

main73230-BZ010-B0iF601..TH200404-200409

DK.GRAY

main73230-BZ010-B0iF601..BRU,IDN,TH200312-200608

DK.GRAY,TRIM1#

main73230-BZ010-E0iF60#..RHD..(GEN,IDN)200810

GREGE,TRIM4#

main73230-BZ040-A0iF60#..MA200609-200811

IVORY,TRIM0#

main73230-BZ040-B0iF601..MA200410-200608

DK.GRAY,TRIM1#

main73230-BZ040-E0iF602..MA;F601..5F..MA200811-201011

GREGE,TRIM4#

main73230-BZ150-A0iF601..(DLX,STD)..SA;F602..(DLX,E,G,GL,J)..(GEN,MXC,PHL,SA,TH)200608-200810

IVORY,TRIM0#

main73230-BZ150-B0iF602..GL..SA200608

DK.GRAY,TRIM1#

main73230-BZ150-E0iF602..(E,G,GL,J)..(GEN,MXC,PHL,TH)200810

GREGE,TRIM4#

9004A10024

main9004A-10024

9004A10026

main9004A-10026

9004A10027

main9004A-10027

9004A11057

main9004A-11057

9004A20025

main9004A-20025

9004A20026

main9004A-20026

9004A38030

main9004A-38030

9004A56035

main9004A-56035

9004A56036

main9004A-56036

9004A56037

main9004A-56037

9004A56038

main9004A-56038

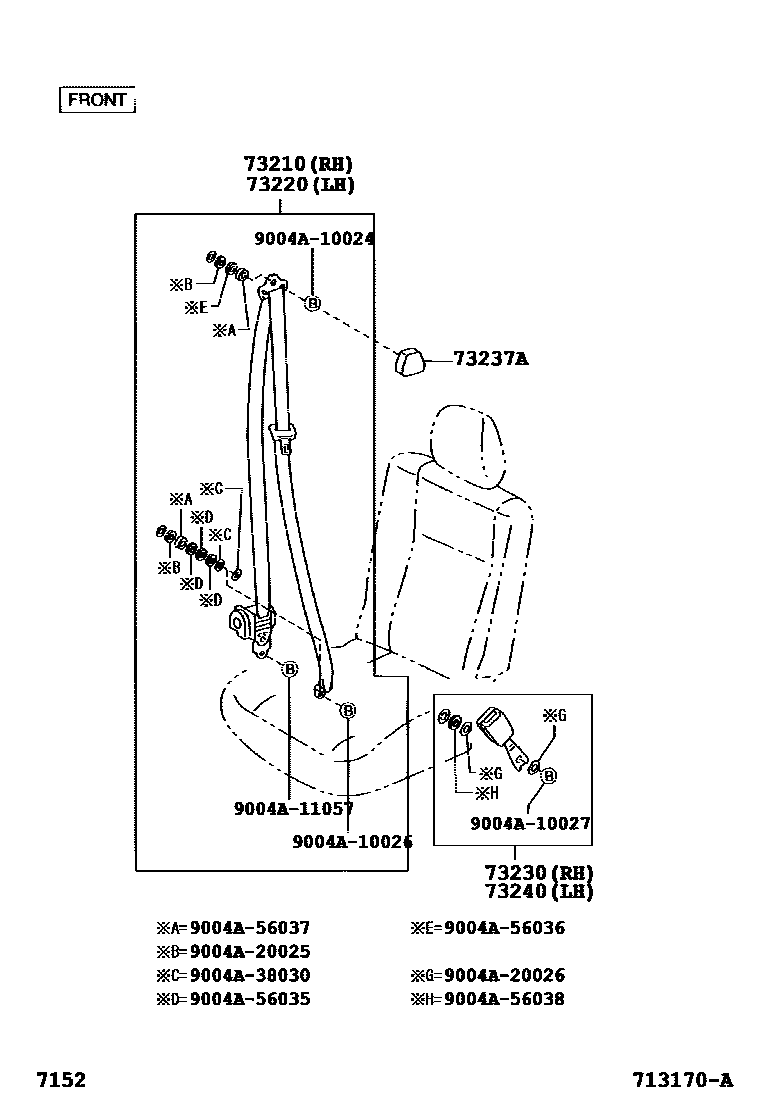

16 parts on this diagram · 6 diagrams in section
