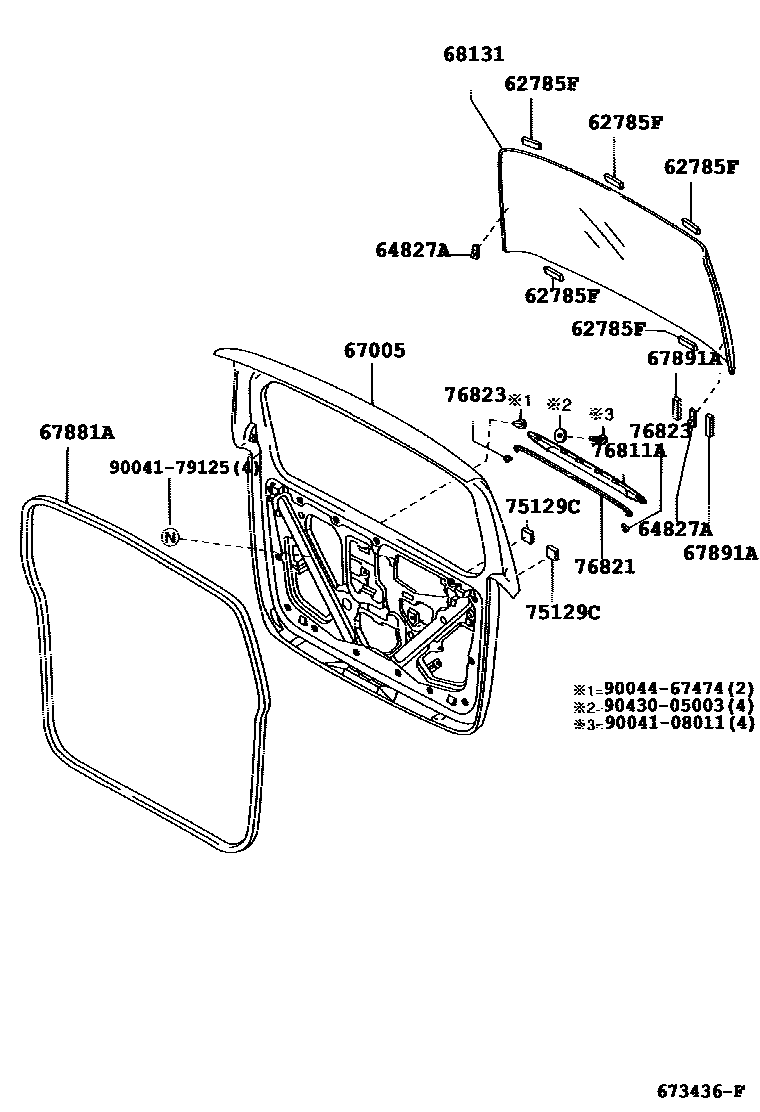

BACK DOOR PANEL & GLASS

0001 1 0002 1 0003 1

62785FSPACER, BACK DOOR GLASS

main62785-87401iF601..4AT¥110200312-200911

sub62785-87701¥180

main62785-BZ060iF60#..GEN,IDN,MXC,PHL,SA,TH200807

64827ACLIP, BACK WINDOW GLASS, RH

main64827-87Z01iF601200312-200911

67005PANEL SUB-ASSY, BACK DOOR

main67005-BZ020iF601..(E,J,XI)..(IDN,PHL)200608

W/WIPER

sub67005-BZ050

main67005-BZ020iF601..E..IDN200312-200608

W(REAR WIPER)

sub67005-BZ050

main67005-BZ030iF601..RHD..(GEN,IDN)200608-201103

W/SPOILER

main67005-BZ030iF601..LVVT200312-200608

W(REAR SPOILER & REAR WIPER)

main67005-BZ040iF602..PHL;F601..5F..MA;F602..RHD..(GEN,IDN,MA)200608-200911

sub67005-BZ370

main67005-BZ040iF601..MA200410-200608

W(REAR SPOILER & REAR WIPER)

sub67005-BZ370

main67005-BZ040iF601..RHD..(GEN,IDN)201103

W/DEFG,SPLR,WIPER

sub67005-BZ370

main67005-BZ050iF601..CTM200706-201103

W/WIPER

main67005-BZ050iF601..5F..(BRU,TH)200404-200608

main67005-BZ060iF602..(E,GL,S)..(SA,TH)200404-200608

sub67005-BZ370

main67005-BZ160iF60#..RHD..(DLX,J,STD)200608

sub67005-BZ380

main67005-BZ160iF601..CTM201103

W/DEFG,WIPER

sub67005-BZ380

main67005-BZ240iF602..MXC200610-200702

sub67005-BZ390

main67005-BZ370iF602..G..GEN200610

main67005-BZ380iF601..DLX..GEN200608

main67005-BZ390iF602..MXC200702

67881AWEATHERSTRIP, BACK DOOR

main67881-BZ010iF601..4AT200312-200911

67891ASEAL, BACK DOOR

main67891-BZ010iF601..4AT200312-200911

68131GLASS, BACK DOOR

main68105-BZ020iF601..4AT200410-200911

main68105-BZ030iF602..MXC,TH;F602..G..GEN200404-200608

main68105-BZ040iF602..PHL;F60#..(DLX,S,STD)..(GEN,SA)200608-200810

GREEN(T=3.1)

main68105-BZ050iF602..GL..SA200608-200902

GREEN(T=3.1)

sub68105-BZ051

main68105-BZ051iF602..GL..SA200903

SMOKE

main68131-BZ010iF601..(CTM,G,J)..(GEN,PHL,SA)200312-200810

main68131-BZ060iF601..IDN200404-200608

75129CCUSHION, REAR LICENCE PLATE

main75129-87502iF602..DLX,E,J;F601..GEN,IDN,PHL,SA¥170200312-200911

main75129-BZ010iF60#..GEN,IDN,MXC,PHL,SA,TH200807

sub75129-87502¥170

76811AGARNISH, BACK DOOR, OUTSIDE

main76811-BZ020iF601200312-200608

main76811-BZ100iF602..S..TH;F602..(E,G,GL,S)..(GEN,IDN,MA,MXC,PHL,SA)200608

main76811-BZ110iF601..5F..MA;F601..GEN,IDN,PHL,SA;F602..(DLX,E,J)..(SA,TH)200608-200911

76821PROTECTOR, BACK DOOR GARNISH MOULDING, UPPER

main76821-BZ010iF601200312-200608

main76821-BZ020iF601..4AT200608-200911

76823PROTECTOR, BACK DOOR GARNISH MOULDING, RH

main76823-BZ010iF601200312-200608

main76823-BZ020iF601..4AT200608-200911

9004108011

main90041-08011¥210

9004179125

main90041-79125¥210

9004467474

main90044-67474¥80

9043005003

main90430-05003¥60

14 parts on this diagram · 3 diagrams in section
