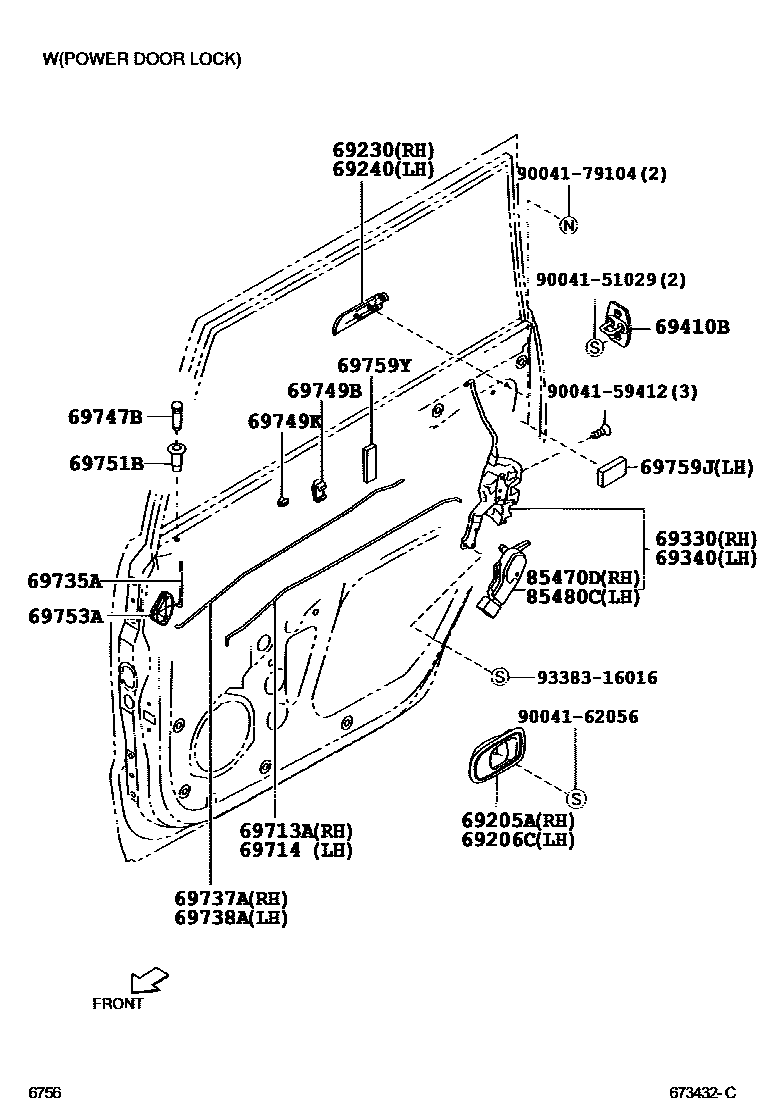

REAR DOOR LOCK & HANDLE

0001 1 0002 1 0003 1

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69270-BZ010-A0iF602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD);F602..(DLX,E,G,GL,J)..(GEN,MA,PHL,SA,TH)200608-200810

IVORY,TRIM0#

main69270-BZ010-B0iF601..CTM,DLX,J,STD;F602..(DLX,GL,S)..(SA,TH)200608-200911

DK.GRAY,TRIM1#

main69270-BZ010-E0iF601..4AT..IDN200810-200912

GREGE,TRIM4#

main69270-BZ011-B0iF602..MA,SA;F602..S..TH;F601..5F..(CTM,DLX,E,J,STD)..(GEN,MA,PHL,SA)200912

DK.GRAY,TRIM1#

sub69270-BZ012

sub90041-67041

main69270-BZ011-E0iF602..E,G,J;F601..5F..MA;F601..RHD..(GEN,IDN);F602..S..(GEN,IDN,MA)200912

GREGE,TRIM4#

sub69270-BZ012

sub90041-67041

main69270-BZ050-A0iF602..MXC200610-200810

IVORY,TRIM0#

main69270-BZ050-E0iF602..MXC200810-200911

GREGE,TRIM4#

main69270-BZ051-E0iF602..MXC200912

GREGE,TRIM4#

sub69270-BZ052

sub90041-67041

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69280-BZ010-A0iF602..S..(GEN,IDN);F601..RHD..(DLX,E,G,STD);F602..(DLX,E,G,GL,J)..(GEN,MA,PHL,SA,TH)200608-200810

IVORY,TRIM0#

main69280-BZ010-B0iF601200312-200608

DK.GRAY,TRIM1#

main69280-BZ010-E0iF601..4AT..IDN200810-200912

GREGE,TRIM4#

main69280-BZ011-B0iF602..MA,SA;F602..S..TH;F601..5F..(CTM,DLX,E,J,STD)..(GEN,MA,PHL,SA)200912

DK.GRAY,TRIM1#

sub69280-BZ012

sub90041-67041

main69280-BZ011-E0iF602..E,G,J;F601..5F..MA;F601..RHD..(GEN,IDN);F602..S..(GEN,IDN,MA)200912

GREGE,TRIM4#

sub69280-BZ012

sub90041-67041

main69280-BZ050-A0iF602..MXC200610-200810

IVORY,TRIM0#

main69280-BZ050-E0iF602..MXC200810-200911

GREGE,TRIM4#

main69280-BZ051-E0iF602..MXC200912

GREGE,TRIM4#

sub69280-BZ052

sub90041-67041

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69210-BZ020iF601..DLX..GEN;F601..CTM,J,STD200710

NO PAINT REQ.

main69210-BZ040iF601..CTM,DLX,J,STD200608-200710

NO PAINT REQ.

main69210-BZ080×2iF601..(E,G,GL,S)..WVVT..(IDN,MA,TH)200404-200608

PAINT REQ.

main69210-BZ130iF602..RHD..(GEN,IDN,MA)200608

PLATED

sub69210-BZ230

main69210-BZ160iF602..DLX;F601..5F..MA;F601..RHD..(GEN,IDN);F602..(E,G,GL,J)..(GEN,MXC,PHL,TH)200608

PAINT REQ.

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69220-BZ020iF601..DLX..GEN;F601..CTM,J,STD200710

NO PAINT REQ.

main69220-BZ040iF601..CTM,DLX,J,STD200608-200710

NO PAINT REQ.

main69220-BZ080×2iF601..(E,G,GL,S)..WVVT..(IDN,MA,TH)200404-200608

PAINT REQ.

main69220-BZ130iF602..RHD..(GEN,IDN,MA)200608

PLATED

sub69220-BZ230

main69220-BZ160iF601..4AT200608-200911

PAINT REQ.

69330LOCK ASSY, REAR DOOR, RH

main69050-BZ010iF601..4AT200608-200911

main69330-BZ010iF601..CTM,J;F601..DLX..GEN200608

69340LOCK ASSY, REAR DOOR, LH

main69060-BZ010iF601200312-200608

main69340-BZ010iF601..CTM,J;F601..DLX..GEN200608

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-BZ010×2iF601200312-200608

69713ALINK, REAR DOOR LOCK REMOTE CONTROL, RH

main69713-BZ010iF601..4AT200608-200911

69714LINK, REAR DOOR LOCK REMOTE CONTROL, LH

main69714-BZ010iF602;F601..5F..MA;F601..GEN,IDN,PHL,SA200608

69735AROD, REAR DOOR LOCK PUSH BUTTON

main69735-BZ010iF601..CTM,J;F601..DLX..GEN200608

RH

main69735-BZ020iF601200312-200608

RH

main69736-BZ010iF601..CTM,J;F601..DLX..GEN200608

LH

main69736-BZ020iF602;F601..5F..MA;F601..RHD..(DLX,E,G,STD,XI)..(GEN,IDN,SA)200608

LH

69737ALINK, REAR DOOR INSIDE LOCKING , RH

main69737-BZ010iF601200312-200608

69738ALINK, REAR DOOR INSIDE LOCKING , LH

main69738-BZ010iF601..4AT200608-200911

69747BBUTTON, DOOR LOCKING(FOR REAR DOOR)

main69743-B0010×2iF601..S200512-200608

main69743-BZ030-A0×2iF60#..MA200610-200611

IVORY,TRIM0#

main69743-BZ030-B0×2iF601..CTM,DLX,J,STD;F602..(DLX,GL,S)..(SA,TH)200610-200803

DK.GRAY,TRIM1#

main69743-BZ040-B0×2iF601..CTM,DLX,J,STD;F602..(DLX,GL,S)..(SA,TH)200804

GRAY,TRIM1#

main69743-BZ040-E0×2iF60#..RHD..(GEN,IDN);F602..(E,G,J)..(GEN,PHL,TH)200804

GREGE,TRIM4#

main69747-87103×2iF601..(E,GL)..WVVT200404-200512

main69747-87103-B0×2iF601..S200408-200512

DK.GRAY,TRIM1#

main69747-87703-A0×2iF60#..MA200611-200811

IVORY,TRIM0#

main69747-87703-B2×2iF601..DLX..GEN200608-200609

DK.GRAY,TRIM1#

main69747-87703-E1×2iF601..4AT200811-200911

GREGE,TRIM4#

69749BCLAMP, REAR DOOR LOCK LINK

main69749-87701×2iF602..GEN,IDN,MXC,PHL,SA,TH;F601..RHD..(DLX,E,G,STD)..(GEN,IDN,SA)200608-200812

main69749-BZ070×2iF60#..GEN,IDN,MXC,PHL,SA,TH200812

69749KCLAMP, REAR DOOR LOCK

main69749-87702×2iF601200312-200608

main69749-BZ080×2iF60#..GEN,IDN,MXC,PHL,SA,TH200812

69751BHOLDER, DOOR LOCKING(FOR REAR DOOR)

main69751-87703-A0×2iF602..S..(GEN,IDN);F602..(DLX,E,G,GL,J)..(GEN,PHL,SA,TH);F601..RHD..(DLX,E,G,STD)..(GEN,IDN,SA)200608-200810

IVORY,TRIM0#

main69751-87703-B0×2iF60#..(DLX,GL,S,STD)..(SA,TH)200610-200907

DK.GRAY,TRIM1#

main69751-87703-E1×2iF602..(E,S)..MA200810-201011

GREGE,TRIM4#

main69751-87704-B0×2iF601..CTM,J;F601..DLX..GEN200608

DK.GRAY,TRIM1#

main69751-B0010×2iF601..(E,GL)..WVVT200404-200512

main69751-BZ040-B0×2iF60#..(DLX,GL,S,STD)..(SA,TH)200907

DK.GRAY,TRIM1#

main69751-BZ040-E0×2iF60#..RHD..(GEN,IDN);F602..(E,G,J)..(GEN,PHL,TH)200907

GREGE,TRIM4#

69753ABELLCRANK, DOOR LOCK CONTROL

main69753-BZ010×2iF60#..GEN,IDN,MXC,PHL,SA,TH200901

main69763-87703×2iF601..CTM,J;F601..DLX..GEN200608-200812

69759JSILENCER, DOOR LOCK LINK

main69759-87Z02iF601200312-200608

69759YSILENCER, REAR DOOR LOCK LINK

main69759-87Z03×6iF601200312-200608

85470DMOTOR ASSY, DOOR CONTROL, REAR RH

main85470-BZ010iF601200312-200608

85480CMOTOR ASSY, DOOR CONTROL, REAR LH

main85480-BZ010iF601200312-200608

9004151029

main90041-51029

9004159412

main90041-59412

9004162056

main90041-62056

9004179104

main90041-79104

9338316016

main93383-16016
