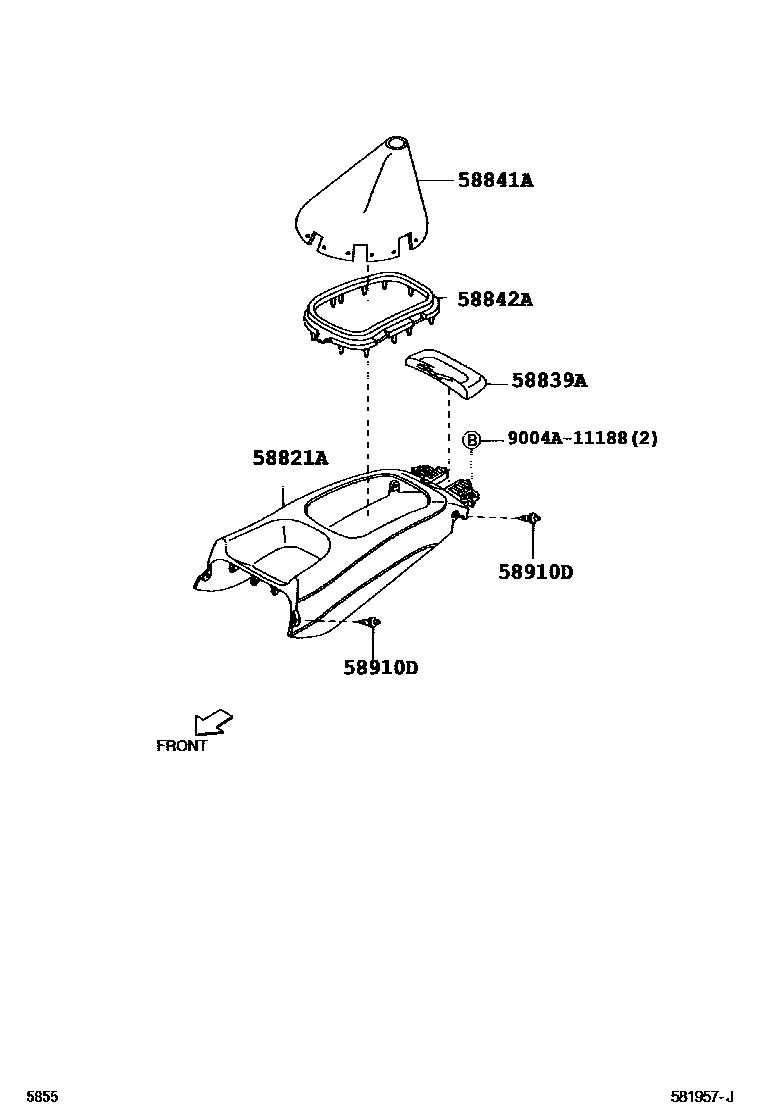

CONSOLE BOX & BRACKET

0001 1W/O RR CONSOLE 0002 1W/RR CONSOL 0003 1

58821APANEL, CONSOLE

main58821-BZ010-B0iF60#..(DLX,GL,STD)..SA200312-200708

DK.GRAY,TRIM1#

main58821-BZ010-E0iF602..S..(GEN,IDN);F60#..RHD..(DLX,E,G,GL,J,STD)..(GEN,IDN,SA,TH)200608-200811

SANDAL WOOD,TRIM0#

main58821-BZ010-E1iF601..4AT200810-201011

ASH BROWN,TRIM4#

main58821-BZ060-B0iF601..LHD200608

DK.GRAY,TRIM1#

main58821-BZ060-E0iF602..LHD200610-200810

SANDAL WOOD,TRIM0#

main58821-BZ060-E1iF602..LHD200810

ASH BROWN,TRIM4#

58839ACOVER, CONSOLE BOX HOLE

main58839-BZ010-B0iF601..CTM,J;F601..DLX..GEN200312-200608

GRAY,TRIM1#

main58839-BZ010-E0iF601..E..IDN200608-200810

SANDAL WOOD,TRIM0#

58841ACOVER, SHIFTING HOLE

main58841-BZ010-B0iF601..5F200312-200608

DK.GRAY,TRIM1#

main58841-BZ070-B0iF60#..5F..(CTM,DLX,E,GL,J,STD)..(GEN,MA,PHL,SA)200608

DK.GRAY,TRIM1#

main58841-BZ070-E0iF602..5F;F601..RHD..5F..(DLX,E,G,STD)200608-200810

SANDAL WOOD,TRIM0#

main58841-BZ070-E1iF601..5F..(E,G);F602..5F..(GEN,IDN,MXC,PHL,TH)200810

ASH BROWN,TRIM4#

58842AFRAME, SHIFTING HOLE

main58842-BZ010iF601..5F200312-200608

58910DCLIP(FOR CONSOLE BOX)

main90044-67383iF601..E..IDN200312-200608

main90044-67556-B0iF602..MA;F601..5F..MA200608-200708

DK.GRAY,TRIM1#

sub90044-67556

main90044-67556-E0iF601..E..IDN200608-200811

SANDAL WOOD,TRIM0#

sub90044-67556

main90044-67556-E1iF601..4AT200810-201011

ASH BROWN,TRIM4#

sub90044-67556

9004A11188

main9004A-11188

6 parts on this diagram · 3 diagrams in section
