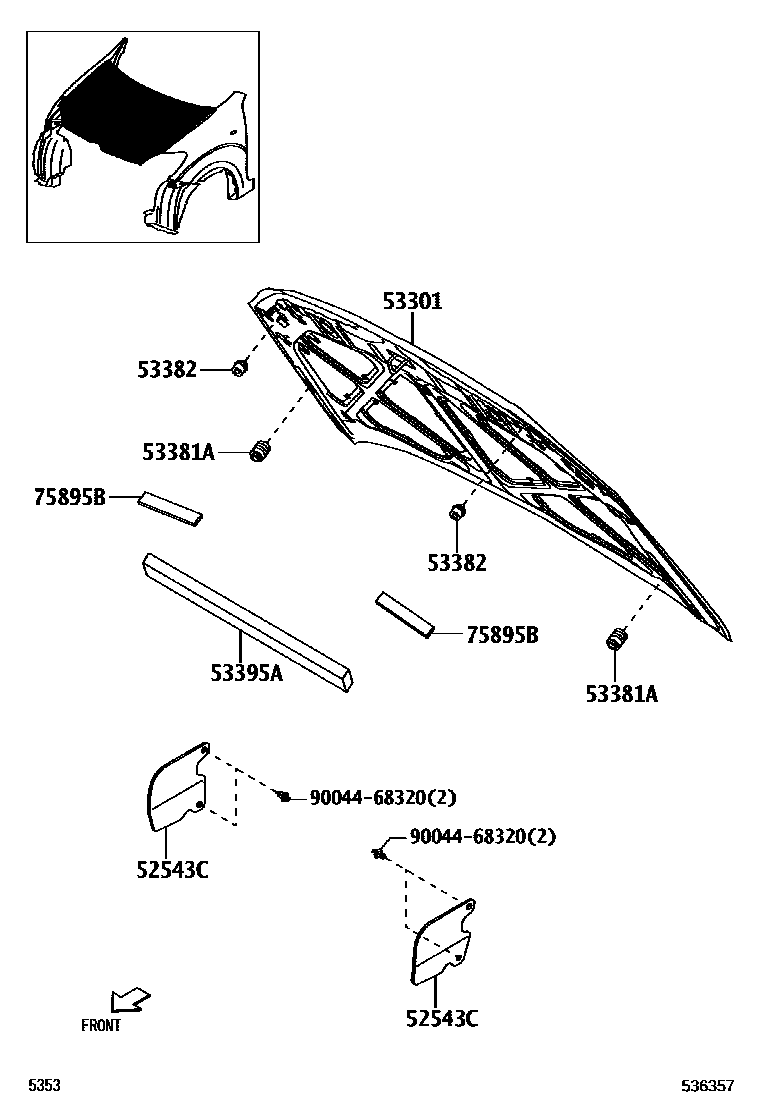

HOOD & FRONT FENDER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

52543CSEAL, FRONT BUMPER

main52543-BZ010iF601200312-200608

main52543-BZ020iF601..4AT200608-200911

main52543-BZ030iF602..S200608

53301HOOD SUB-ASSY

main53301-BZ010iF602..PHL;F601..5F..MA;F602..RHD..(GEN,IDN,MA);F601..(E,G,J,XI)..(GEN,IDN,PHL)200312-200911

sub53301-BZ150

main53301-BZ020iF601..WVVT..(BRU,IDN,TH)200404-200608

sub53301-BZ150

main53301-BZ150iF60#..LHD..(GEN,MXC)200608

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main53381-BZ010iF601200312-200911

53382BUMPER, HOOD, FRONT

main90045-41152iF601200312-200911

main9004A-54028iF60#..GEN,IDN,MXC,PHL,SA,TH200612

53395ASEAL, HOOD TO FRONT END PANEL, NO.1

main53395-BZ010iF601200312-200608

75895BTAPE, MOULDING, NO.2

main75896-BZ010iF601200312-200608

9004468320

main90044-68320

7 parts on this diagram · 7 diagrams in section
