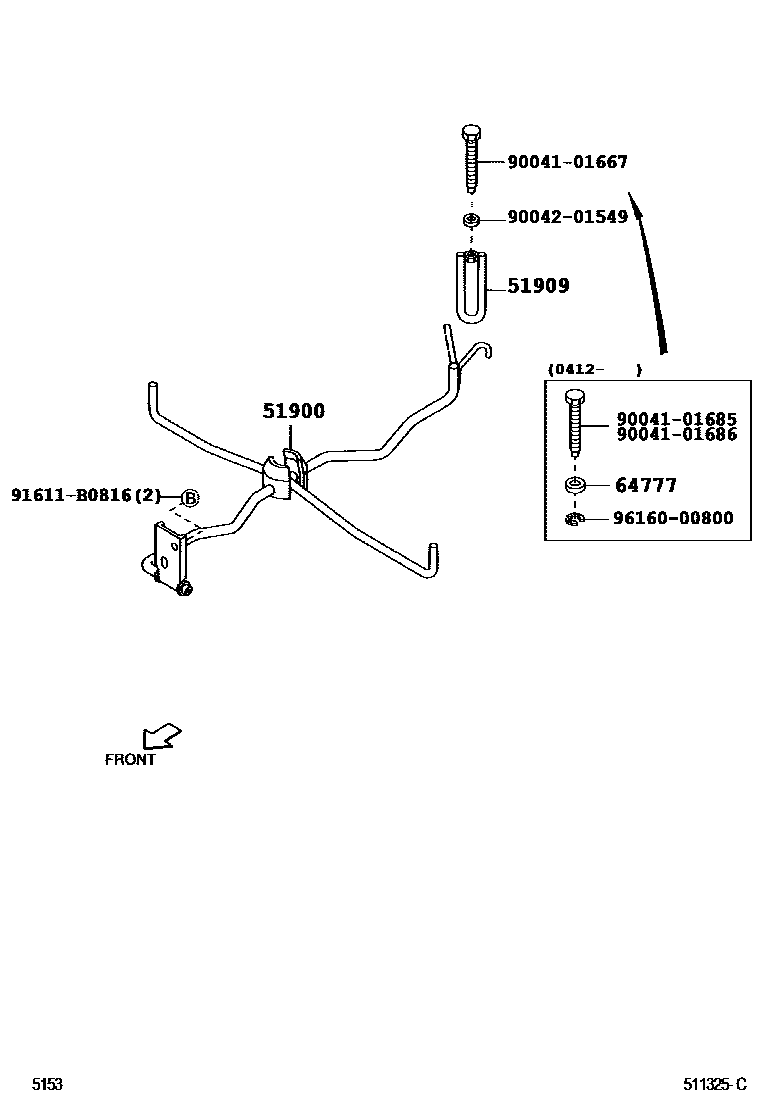

SPARE WHEEL CARRIER

0001 1 0002 1

51900CARRIER ASSY, SPARE WHEEL

main51903-BZ010iF601200312-200412

main51903-BZ012iF601200501-200607

sub51903-BZ060

main51903-BZ060iF601200607-201110

sub51903-BZ061

main51903-BZ061iF602;F601..5F..MA;F601..GEN,IDN,PHL,SA201111

51909HINGE SUB-ASSY, SPARE WHEEL CARRIER

main51909-BZ010iF601200312-201004

sub51909-BZ031

main51909-BZ031iF602;F601..5F..MA;F601..GEN,IDN,PHL,SA201005

64777CLAMP, SPARE WHEEL COVER

main64777-BZ010iF601200412-200911

9004101667

main90041-01667

9004101685

main90041-01685

9004101686

main90041-01686

9004201549

main90042-01549

91611B0816

main91611-B0816

9616000800

main96160-00800

9 parts on this diagram · 2 diagrams in section
