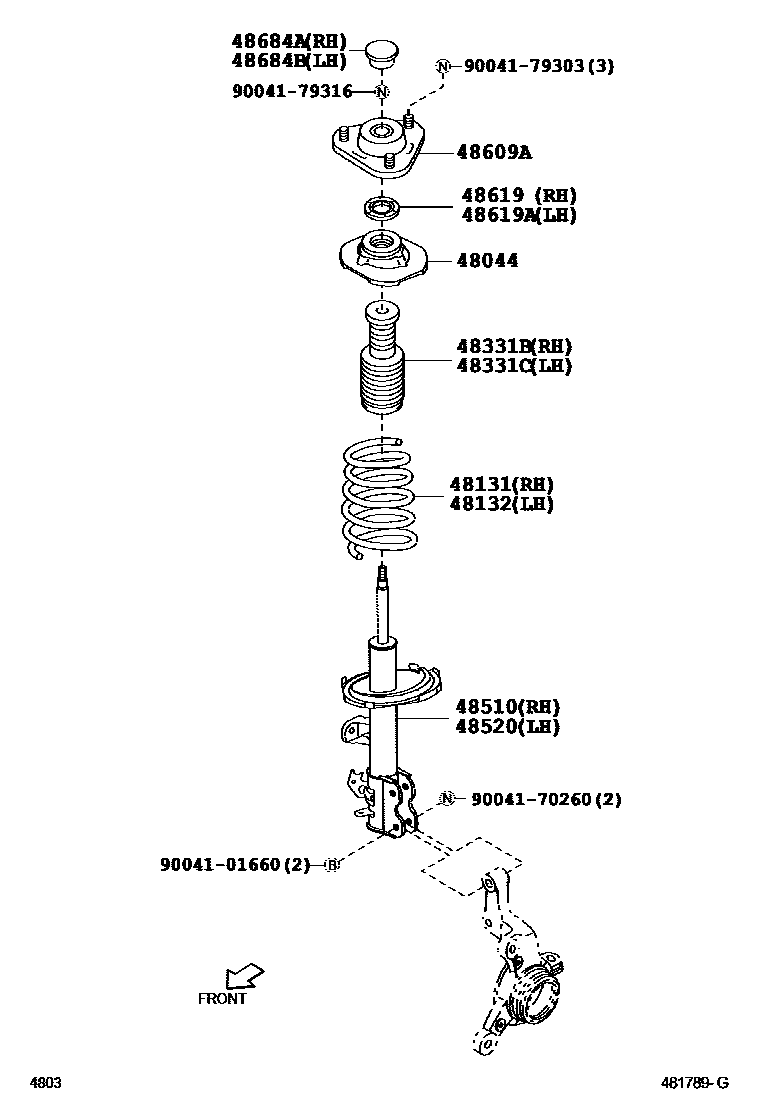

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

48044SEAT SUB-ASSY, FRONT SPRING, NO.1

main48044-BZ010iF601200312-200911

48131SPRING, FRONT COIL, RH

main48131-BZ040iF601..MA200410-200608

main48131-BZ080iF601..LVVT200312-200608

main48131-BZ090iF601..WVVT..(BRU,IDN,TH)200404-200608

main48131-BZ140iF601..IDN200608-200810

main48131-BZ150iF602..PHL;F602..(E,GL,J,S)..(GEN,SA,TH)200608-200810

main48131-BZ160iF601..4AT200609-200911

main48131-BZ370iF601..IDN200810

main48131-BZ380iF602..IDN200810

48132SPRING, FRONT COIL, LH

main48131-BZ040iF601..MA200410-200608

main48131-BZ080iF601..LVVT200312-200608

main48131-BZ090iF601..WVVT..(BRU,IDN,TH)200404-200608

main48131-BZ140iF602..DLX;F601..GEN,PHL,SA;F602..LHD..(GEN,MXC)200608-200810

main48131-BZ150iF602..IDN200608-200810

main48131-BZ160iF601..4AT200609-200911

main48131-BZ370iF601..IDN200810

main48131-BZ380iF602..IDN200810

48331BBUMPER, FRONT SPRING, RH

main48331-BZ010iF601200312-200911

48331CBUMPER, FRONT SPRING, LH

main48331-BZ010iF601..4AT200312-200911

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-BZ040iF601..4AT200404-200409

main48510-BZ060iF601..MA200410-200608

main48510-BZ070iF601..5F200312-200409

main48510-BZ110iF601..4AT..(BRU,IDN,TH)200409-200608

main48510-BZ120iF601..5F..(BRU,IDN,TH)200409-200608

sub48510-BZ110

main48510-BZ200iF602..PHL200608-200810

main48510-BZ220iF601..4AT200609-200911

main48510-BZ230iF602..(G,S)..MA200609

main48510-BZ240iF601..IDN200608-200810

sub48510-BZ200

main48510-BZ660iF602..IDN200810-201109

sub48510-BZ661

main48510-BZ661iF602..IDN201110

main48510-BZ670iF601..IDN200810-201109

sub48510-BZ671

main48510-BZ671iF601..IDN201110

sub48510-BZ661

main48510-BZ671iF602..IDN201111

INDONESIA 1.5G

sub48510-BZ661

main48510-BZA20iF60#..IDN201203

MARK 48510-BZA20

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-BZ040iF601..4AT200404-200409

main48520-BZ060iF601..MA200410-200608

main48520-BZ070iF601..5F200312-200409

main48520-BZ110iF601..4AT..(BRU,IDN,TH)200409-200608

main48520-BZ120iF601..5F..(BRU,IDN,TH)200409-200608

sub48520-BZ110

main48520-BZ200iF601..DLX..SA;F602..(DLX,E,G,GL,S)..(GEN,SA,TH)200608-200810

main48520-BZ220iF601..4AT200609-200911

main48520-BZ230iF602..(G,S)..MA200609

main48520-BZ240iF60#..(DLX,GL,J)..(GEN,MXC,TH);F601..(CTM,G,J,STD)..(GEN,PHL,SA)200608-200810

sub48520-BZ200

main48520-BZ350iF60#..IDN201203

MARK 48520-BZ350

main48520-BZ570iF602..IDN200810-201109

sub48520-BZ571

main48520-BZ571iF602..IDN201110

main48520-BZ580iF601..IDN200810-201109

sub48520-BZ581

main48520-BZ581iF602..IDN201111

INDONESIA 1.5G

sub48520-BZ571

main48520-BZ581iF601..IDN201110

sub48520-BZ571

48609ASUPPORT SUB-ASSY, FRONT SUSPENSION

main48609-BZ010iF601200312-201012

main48609-BZ011iF602;F601..5F..MA;F601..GEN,IDN,PHL,SA201012-201110

48619BEARING, STRUT MOUNTING, RH

main90043-85174iF601200312-200911

48619ABEARING, STRUT MOUNTING, LH

main90043-85174iF601200312-200911

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-BZ010iF601200312-200911

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-BZ010iF601200312-200911

9004101660

main90041-01660

9004170260

main90041-70260

9004179303

main90041-79303

9004179316

main90041-79316

16 parts on this diagram · 2 diagrams in section
