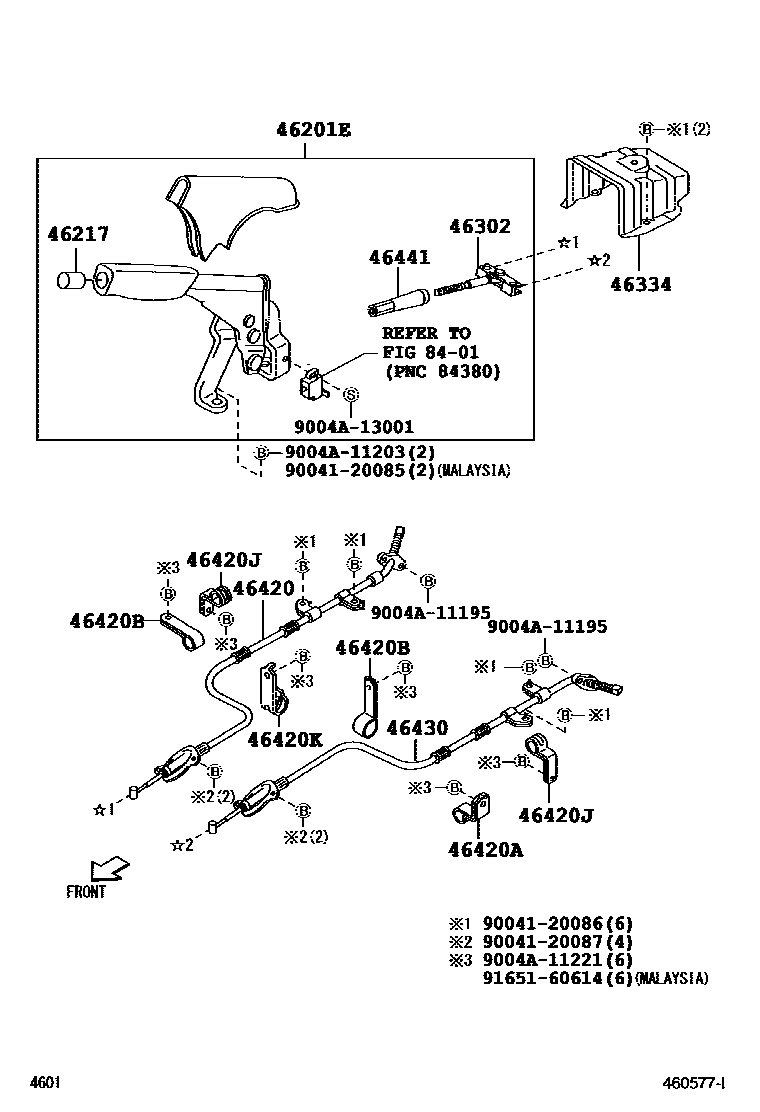

PARKING BRAKE & CABLE

46201ELEVER SUB-ASSY, PARKING BRAKE

main46210-BZ010-B0iF60#..(DLX,STD)..SA200312-201109

DK.GRAY,TRIM1#

sub46210-BZ011

main46210-BZ010-E0iF601..G..IDN;F602..5F..G..GEN;F602..(DLX,E,G,J)..(PHL,SA,TH);F601..RHD..(DLX,E,G,STD)..(GEN,MA,SA)200608-200810

SANDAL WOOD,TRIM0#

sub46210-BZ011

main46210-BZ010-E1iF601..4AT200810-201109

ASH BROWN,TRIM4#

sub46210-BZ011

main46210-BZ011-B0iF60#..5F..(DLX,E,STD)..(MA,SA)201110

DK.GRAY,TRIM1#

main46210-BZ011-E1iF602..5F..G..GEN;F601..RHD..(GEN,IDN);F602..(E,G,J)..(PHL,TH)201110

ASH BROWN,TRIM4#

main46210-BZ020-B0iF601..S200408-200608

DK.GRAY,TRIM1#

main46210-BZ020-E0iF602..MXC;F602..4AT..G..GEN;F602..RHD..(G,GL,S)..(GEN,IDN,MA,SA)200608-200811

SANDAL WOOD,TRIM0#

main46210-BZ020-E1iF602..4AT..G..GEN;F602..(GL,S)..(GEN,IDN,MXC)200811-201007

ASH BROWN,TRIM4#

main46210-BZ040-B0iF601..E..IDN200312-201109

DK.GRAY,TRIM1#

sub46210-BZ041

main46210-BZ040-E0iF601..E..IDN200608-200810

SANDAL WOOD,TRIM0#

sub46210-BZ041

main46210-BZ041-B0iF601..CTM,J;F601..DLX..GEN201110

DK.GRAY,TRIM1#

sub46210-BZ041

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-BZ010-B0iF601..5F..MA200312-201109

DK.GRAY,TRIM1#

main46217-BZ010-E0iF601..G..IDN;F602..5F..G..GEN;F602..(DLX,E,G,J)..(PHL,SA,TH);F601..RHD..(DLX,E,G,STD)..(GEN,MA,SA)200608-200810

SANDAL WOOD,TRIM0#

main46217-BZ010-E1iF602..5F..G..GEN;F601..RHD..(GEN,IDN);F602..(E,G,J)..(PHL,TH)200810-201109

ASH BROWN,TRIM4#

main46217-BZ011-B0iF60#..5F..(DLX,E,STD)..(MA,SA)201110

DK.GRAY,TRIM1#

main46217-BZ011-E1iF602..5F..G..GEN;F601..RHD..(GEN,IDN);F602..(E,G,J)..(PHL,TH)201110

ASH BROWN,TRIM4#

main46217-BZ020-B0iF602..MA200408-200608

DK.GRAY,TRIM1#

main46217-BZ020-E0iF602..MXC;F602..4AT..G..GEN;F602..RHD..(G,GL,S)..(GEN,IDN,MA,SA)200608-200811

SANDAL WOOD,TRIM0#

main46217-BZ020-E1iF602..4AT..G..GEN;F602..(GL,S)..(GEN,IDN,MXC)200811-201007

ASH BROWN,TRIM4#

main46217-BZ040-B0iF601..CTM,J;F601..DLX..GEN200312-201109

DK.GRAY,TRIM1#

main46217-BZ040-E0iF601..E..IDN200608-200810

SANDAL WOOD,TRIM0#

46302ROD SUB-ASSY, PARKING BRAKE PULL, NO.1

main46302-87Z03iF601200312-200911

46334PROTECTOR, INTERMEDIATE LEVER

main46334-BZ010iF601200312-200911

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-BZ010iF601200312-200906

sub46420-BZ011

main46420-BZ011iF601..4AT200907-201103

sub46420-BZ012

main46420-BZ012iF602..MA;F601..5F..MA201104

main46420-BZ150iF60#..GEN,IDN,MXC,PHL,SA,TH201010-201103

sub46420-BZ151

main46420-BZ151iF60#..GEN,IDN,MXC,PHL,SA,TH201104

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main9004A-46126iF601200312-200911

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main9004A-46133iF601..4AT200312-200911

46420JCLAMP, NO.3(FOR PARKING BRAKE CABLE)

main9004A-46134iF601200312-200911

46420KCLAMP, NO.4(FOR PARKING BRAKE CABLE)

main46467-BZ010iF601200312-200911

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-BZ010iF601200312-200906

sub46430-BZ011

main46430-BZ011iF601..4AT200907-201103

sub46430-BZ012

main46430-BZ012iF602..MA;F601..5F..MA201104

main46430-BZ150iF60#..GEN,IDN,MXC,PHL,SA,TH201010-201103

sub46430-BZ151

main46430-BZ151iF60#..GEN,IDN,MXC,PHL,SA,TH201104

46441NUT, WIRE ADJUSTING, NO.1

main46441-87Z04iF601200312-200911

8401

9004120085

main90041-20085

9004120086

main90041-20086

9004120087

main90041-20087

9004A11195

main9004A-11195

9004A11203

main9004A-11203

9004A11221

main9004A-11221

9004A13001

main9004A-13001

9165160614

main91651-60614

20 parts on this diagram · 1 diagram in section
