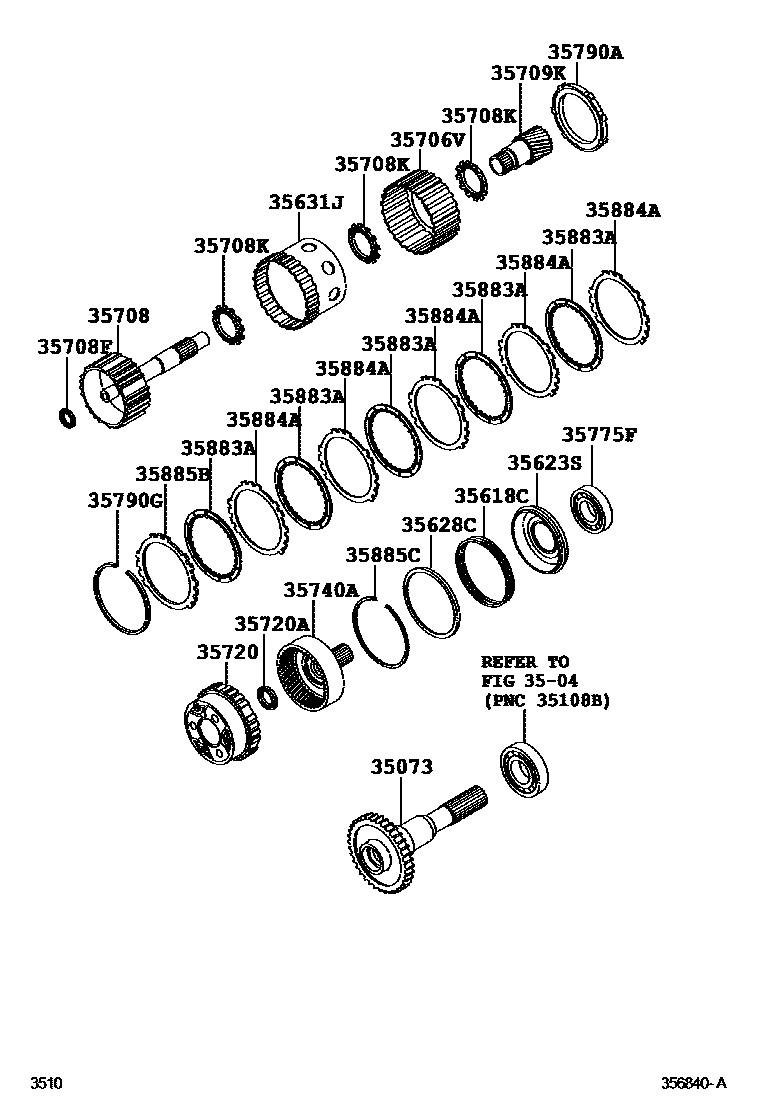

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
3504
35073SHAFT SUB-ASSY, OUTPUT
35618CRETURN SPRING SUB-ASSY, 1ST & REVERSE
35628CSEAT, 1ST & REVERSE BRAKE PISTON RETURN SPRING
35631JHUB, FORWARD CLUTCH, NO.1
sub35631-B1010
35706VGEAR SUB ASSY, PLANETARY SUN
35708SHAFT SUB-ASSY, INTERMEDIATE
35708FBEARING, THRUST NEEDLE ROLLER (FOR INTERMEDIATE SHAFT)
35708KBEARING, NEEDLE ROLLER(FOR INTERMEDIATE SHAFT)
35709KGEAR SUB-ASSY, REAR PLANETARY
35720GEAR ASSY, FRONT PLANETARY
35720ABEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR)
35740AGEAR ASSY,FRONT PLANETARY RING
35775FBEARING, RADIAL BOLL
35790ACLUTCH ASSY, 1 WAY
sub35790-B1030
35790GHOLE SNAP RING (FOR 1WAY CLUTCH)
35883ADISC, BRAKE
sub35883-B1010
35884APLATE,BRAKE
35885BFLANGE, BRAKE
T=4.0
T=4.2
T=4.4
T=4.6
T=4.8
T=5.0
35885CRING,HOLE SNAP (FOR CLUTCH PLATE)
sub90045-21194
21 parts on this diagram · 1 diagram in section
