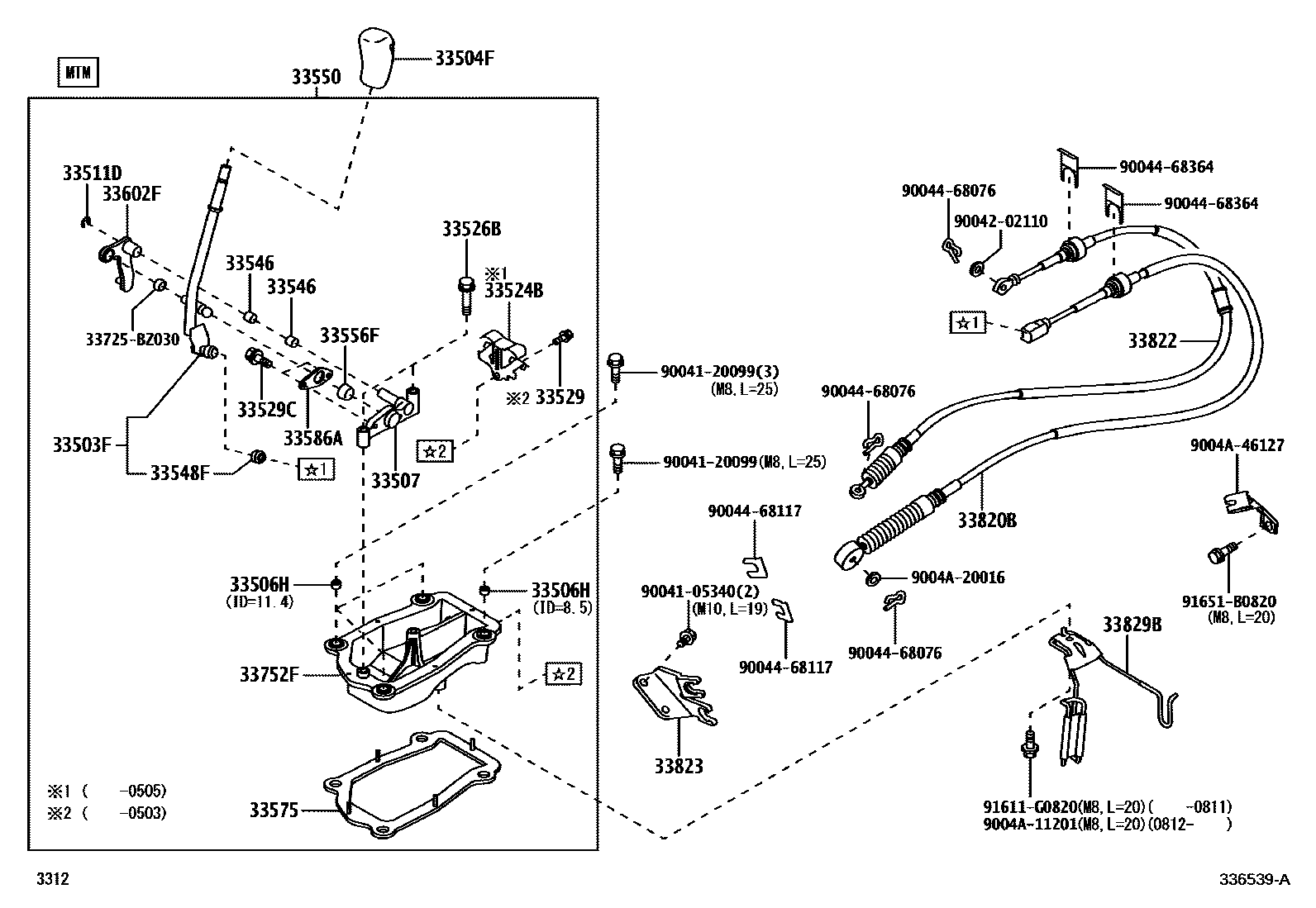

SHIFT LEVER & RETAINER

0001 1 0003 1 0005 1

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33055-BZ040iF601..5F200312-201111

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-BZ010-B0iF601..5F200312-200608

DK.GRAY,TRIM1#

sub33504-BZ010

main33504-BZ050-B0iF60#..5F..(CTM,DLX,E,GL,J,STD)..(GEN,MA,PHL,SA)200608

DK.GRAY,TRIM1#

main33504-BZ050-E0iF602..5F;F601..RHD..5F..(DLX,E,G,STD)200608-200810

SANDAL WOOD,TRIM0#

main33504-BZ050-E1iF601..5F..(E,G);F602..5F..(GEN,IDN,MXC,PHL,TH)200810

ASH BROWN,TRIM4#

main33504-BZ110-B0iF602..G..MA200810

DK.GRAY,TRIM1#

main33504-BZ110-E0iF602..4AT..(E,GL);F602..4AT..S..(GEN,IDN,MA);F60#..4AT..(G,XI)..(GEN,IDN,PHL)200810-200911

ASH BROWN,TRIM4#

33506HBUSH (FOR SHIFT LEVER RETAINER)

main33546-BZ010iF60#..5F200312-200608

ID=8.5

main33546-BZ020iF60#..5F200312-200608

ID=11.4

33507BRACKET SUB-ASSY, SHIFT LEVER HOUSING

main33507-BZ010iF601..5F200312-201111

33511DRING, E (FOR FLOOR SHIFT CONTROL SHAFT)

main96160-00800iF601..5F200312-201111

33524BBRACKET, CONTROL CABLE

main33524-BZ010iF601..5F200312-200505

33526BBOLT, SHIFT LEVER HOUSING SET

main81134-B4010iF601..5F200312-201111

33529BOLT, SHIFT LEVER (FOR CONTROL SHAFT)

main33529-BZ010iF601..5F200312-200503

33529CBOLT, SHIFT LEVER

main90041-05071iF601..5F200312-201111

33546BUSH(FOR CONTROL SHIFT LEVER RETAINER)

main33548-BZ110iF601..5F200312-201111

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-BZ080iF601..5F200312-201111

33550FLOOR SHIFT ASSY, TRANSMISSION

main33550-B0011-B0iF601..4AT..(BRU,IDN,TH)200404-200608

DK.GRAY,TRIM1#

main33550-B0031-B0iF601..4AT..MA200410-200608

DK.GRAY,TRIM1#

main33550-B0040-E0iF601..4AT200608-200811

SANDAL WOOD,TRIM0#

main33550-B0050-E0iF602..4AT..(MXC,PHL)200610-200810

SANDAL WOOD,TRIM0#

main33550-B0060-E0iF602..4AT..G..GEN200610-200810

SANDAL WOOD,TRIM0#

main33550-B0070-B0iF602..S..TH200610-200810

DK.GRAY,TRIM1#

main33550-B0070-E0iF602..4AT..S..(GEN,IDN)200609-200811

SANDAL WOOD,TRIM0#

main33550-BZ010iF601..5F200312-200608

main33550-BZ011iF60#..5F200608

main33550-BZ040iF602..G..MA200810-201011

W/O SHIFT LOCK

main33550-BZ060-E0iF60#..4AT..(E,G,XI)..(GEN,IDN,TH)200810-201011

ASH BROWN,TRIM4#,W/O SHIFT LOCK

main33550-BZ130iF602..RHD..4AT..(GEN,IDN,MA);F602..4AT..(G,GL,S)..(MXC,PHL,TH)201011

W/SHIFT LOCK

sub33550-BZ131

main33550-BZ180-E0iF60#..4AT..(E,G,XI)..(GEN,IDN,TH)201011

ASH BROWN,TRIM4#,W/SHIFT LOCK

sub33550-BZ181

33556FSEAT, TRANSMISSION SHIFT LEVER BALL

main33556-BZ010iF601..5F200312-201111

33575RETAINER, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33575-BZ010iF601..5F200312-200608

33586ASTOPPER, CONTROL LEVER (FOR FLOOR SHIFT)

main33586-BZ020iF601..5F200312-201111

33602FLEVER SUB-ASSY, SELECT (FOR FLOOR SHIFT)

main33602-BZ030iF60#..5F200312-201111

33752FSUPPORT, CONTROL LINK (FOR FLOOR SHIFT)

main33752-BZ010iF60#..5F200312-200608

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-BZ010iF60#..5F200312-200608

main33820-BZ020iF601..4AT200404-200911

33822CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)

main33830-BZ010iF601..5F200312-200608

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-BZ010iF60#..5F200312-200608

33829BCLAMP, TRANSMISSION CONTROL CABLE

main33829-B0020iF60#..5F200312-200807

main33829-B0030iF602..4AT;F601..4AT..IDN200404-201012

main33829-BZ040iF60#..5F..(GEN,IDN,MXC,PHL,SA,TH)200808

main33829-BZ080iF60#..4AT..(GEN,IDN,MXC,PHL,TH)201101

33725BZ030

main33725-BZ030

9004105340

main90041-05340

9004120099

main90041-20099

9004202110

main90042-02110

9004468076

main90044-68076

9004468117

main90044-68117

9004468364

main90044-68364

9004A11201

main9004A-11201

9004A20016

main9004A-20016

9004A46127

main9004A-46127

91611G0820

main91611-G0820

91651B0820

main91651-B0820

33 parts on this diagram · 3 diagrams in section
