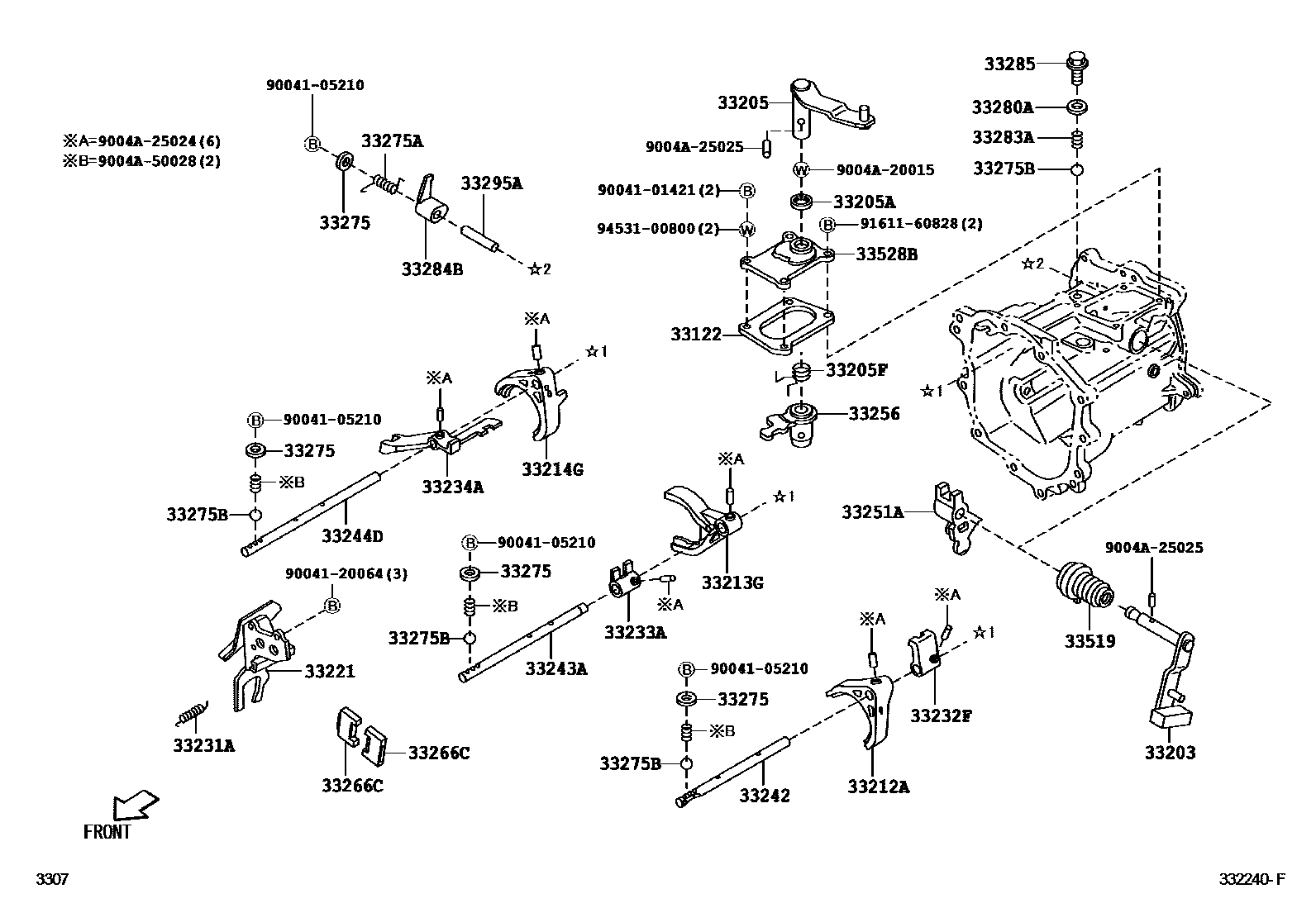

GEAR SHIFT FORK & LEVER SHAFT (MTM)

0001 1 0002 1

33122GASKET, MANUAL TRANSMISSION CASE COVER

main33122-87504iF60#..5F200312-200610

main33122-BZ020iF60#..5F200610

33203SHAFT SUB-ASSY, SHIFT LEVER, NO.1

main33203-B0010iF601..5F200312-200610

main33203-BZ010iF60#..5F200610-200809

sub33203-BZ070

main33203-BZ050iF60#..5F200809-201108

sub33203-BZ080

main33203-BZ080iF60#..5F201108

33205SHAFT SUB-ASSY, SELECT LEVER

main33205-B0010iF601..5F200312-200610

main33205-BZ010iF60#..5F200610-201109

sub33205-BZ060

main33205-BZ060iF60#..5F201109

33205ASEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)

main9004A-31017iF601..5F200312-200608

33205FSPRING, COMPRESSION(FOR SELECT RETURN)

main9004A-50032iF601..5F200312-200608

33212AFORK, GEAR SHIFT, NO.1

main33212-BZ010iF601..5F200312-201004

sub33212-97501

main33212-BZ040iF60#..5F201004

33213GFORK, GEAR SHIFT, NO.2

main33213-BZ010iF601..5F200312-200608

sub33213-BZ040

main33213-BZ040iF60#..5F200608-201004

sub33213-B4010

sub33213-BZ090

main33213-BZ090iF60#..5F201004

33214GFORK, GEAR SHIFT, NO.3

main33214-BZ010iF601..5F200312-201004

sub33214-97501

main33214-BZ050iF60#..5F201004

33221ARM, REVERSE SHIFT

main33201-87401iF601..5F200312-200507

main33201-87401iF601..5F200507-200605

(J),NO.1

main33201-B0010iF601..5F200605-200608

(J),NO.2

main33201-B0010iF60#..5F200608-200610

main33201-BZ010iF60#..5F200610

sub33201-BZ011

33231ASPRING, REVERSE SHIFT RESTRICT

main9004A-50034iF60#..5F200312-200608

33232FHEAD, GEAR SHIFT, NO.1

main33232-BZ010iF60#..5F200312-200608

33233AHEAD, GEAR SHIFT, NO.2

main33233-BZ010iF601..5F200312-200608

33234AHEAD, GEAR SHIFT, NO.3

main33234-BZ010iF60#..5F200610

main33237-87501iF601..5F200312-200610

33242SHAFT, GEAR SHIFT FORK, NO.1

main33242-BZ010iF601..5F200312-200608

sub33242-BZ050

33243ASHAFT, GEAR SHIFT FORK, NO.2

main33243-BZ010iF601..5F200312-200608

sub33243-BZ080

main33243-BZ030iF602..5F200608

sub33243-BZ090

sub33245-B4010

33244DSHAFT, GEAR SHIFT FORK, NO.3

main33244-BZ010iF601..5F200312-200809

sub33244-97501

sub33244-BZ070

main33244-BZ040iF60#..5F200809

33251ALEVER, SHIFT, INNER NO.1

main33251-87509iF60#..5F200312-200610

main33251-BZ010iF60#..5F200610-201109

sub33251-BZ050

main33251-BZ050iF60#..5F201109

sub33251-BZ060

33256LEVER, SELECT INNER

main33256-87501iF601..5F200312-200610

sub33256-B5010

main33256-BZ010iF60#..5F200610-201108

sub33256-BZ040

main33256-BZ040iF60#..5F201108

sub33256-BZ050

33266CPLATE, SHIFT INTERLOCK

main33266-87506iF601..5F200312-200610

main33266-BZ010iF60#..5F200610-201109

sub33266-BZ040

main33266-BZ040iF60#..5F201109

sub33266-BZ050

33275SEAT, SHIFT DETENT BALL SPRING, NO.1

main9004A-43005iF601..5F200312-200608

0D=17

33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)

main9004A-50033iF601..5F200312-200608

L=22.3

33275BBALL, SHAFT DETENT

main90043-60003iF60#..5F200312-200610

main9004A-36044iF60#..5F200610-200809

sub90043-60003

33280AGASKET, REVERSE RESTRICT PIN

main9004A-43004iF601..5F200312-200608

33283ASPRING, COMPRESSION (FOR REVERSE RESTRICT PIN)

main9004A-50104iF60#..5F200809-201106

sub9004A-50125

main9004A-50125iF60#..5F201106

33284BPIN, REVERSE RESTRICT, NO.2

main33284-BZ010iF601..5F200312-200608

33285HOLDER, REVERSE RESTRICT PIN

main33285-87501iF601..5F200312-200610

main33285-BZ010iF60#..5F200610-201104

sub33285-BZ020

main33285-BZ020iF60#..5F201104

33295ASHAFT, REVERSE RESTRICT

main33283-BZ010iF60#..5F200610-201106

sub33283-BZ050

main33283-BZ050iF60#..5F201106

main33295-87501iF60#..5F200312-200610

33519BOOT, CONTROL SHAFT DUST

main33519-BZ010iF601..5F200312-200608

33528BCOVER, CONTROL SHAFT

main33528-87Z01iF601..5F200312-200608

sub33528-87503

9004101421

main90041-01421

9004105210

main90041-05210

9004120064

main90041-20064

9004A20015

main9004A-20015

9004A25024

main9004A-25024

9004A25025

main9004A-25025

9004A50028

main9004A-50028

9161160828

main91611-60828

9453100800

main94531-00800

38 parts on this diagram · 2 diagrams in section
