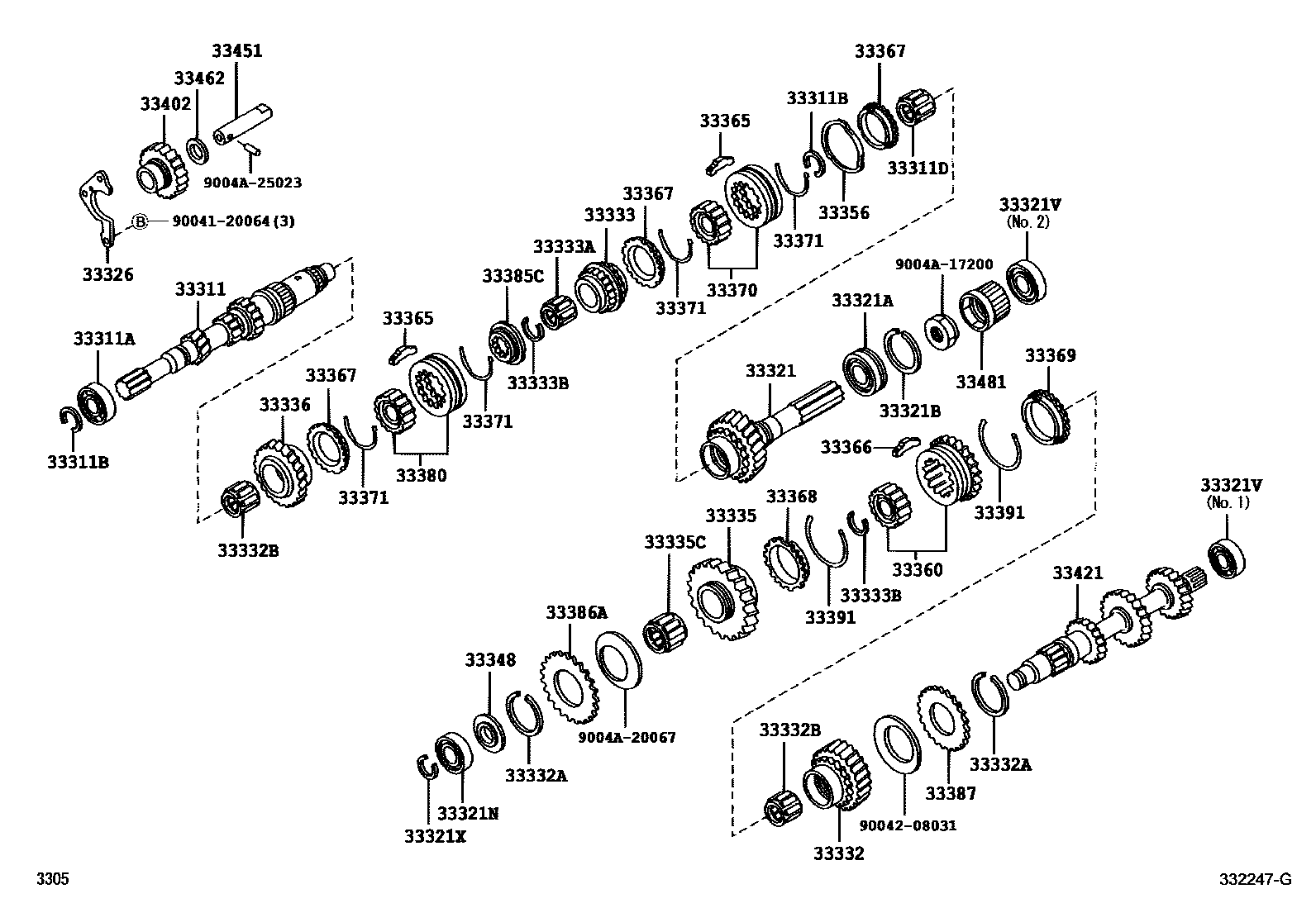

TRANSMISSION GEAR (MTM)
33311ABEARING (FOR INPUT SHAFT FRONT)
(L),NO.3
(J),NO.1
(J),NO.2
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
T=2.06,T=2.06
T=2.06
T=2.02
T=2.02,T=2.02
T=1.98
T=1.98,T=1.98
T=1.94
T=1.94,T=1.94
T=1.90
T=1.90,T=1.90
T=1.86
T=1.86,T=1.86
T=1.82,T=1.82
T=1.82
T=1.78
T=1.78,T=1.78
33321SHAFT, OUTPUT
33321NBEARING (FOR OUTPUT SHAFT FRONT)
(L),NO.3
(J),NO.1
(J),NO.2
33321XRING, SHAFT SNAP (FOR OUTPUT SHAFT CENTER BEARING)
T=2.06,T=2.07
T=2.06
T=2.02
T=2.02,T=2.03
T=1.98
T=1.98,T=1.99
T=1.94
T=1.94,T=1.95
T=1.90
T=1.90,T=1.91
T=1.86
T=1.86,T=1.87
T=1.82,T=1.82
T=1.82
T=1.78
T=1.78,T=1.79
33326PLATE, BEARING LOCK
sub33326-87501
33332ARING, SHAFT SNAP (FOR 2ND GEAR)
(L),NO.3
33333BRING, SHAFT SNAP (FOR 3RD REAR)
T=2.06
T=2.02
T=1.98
T=1.94
T=1.90
T=1.86
T=1.82
T=2.10
33348WASHER, 1ST GEAR THRUST
33360HUB ASSY, SYNCHRONIZER, NO.1
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33385CSTOPPER, HUB SLEEVE
33421GEAR, COUNTER
9004120064
main90041-20064
9004208031
main90042-08031
9004A17200
main9004A-17200
9004A20067
main9004A-20067
9004A25023
main9004A-25023
45 parts on this diagram · 2 diagrams in section
