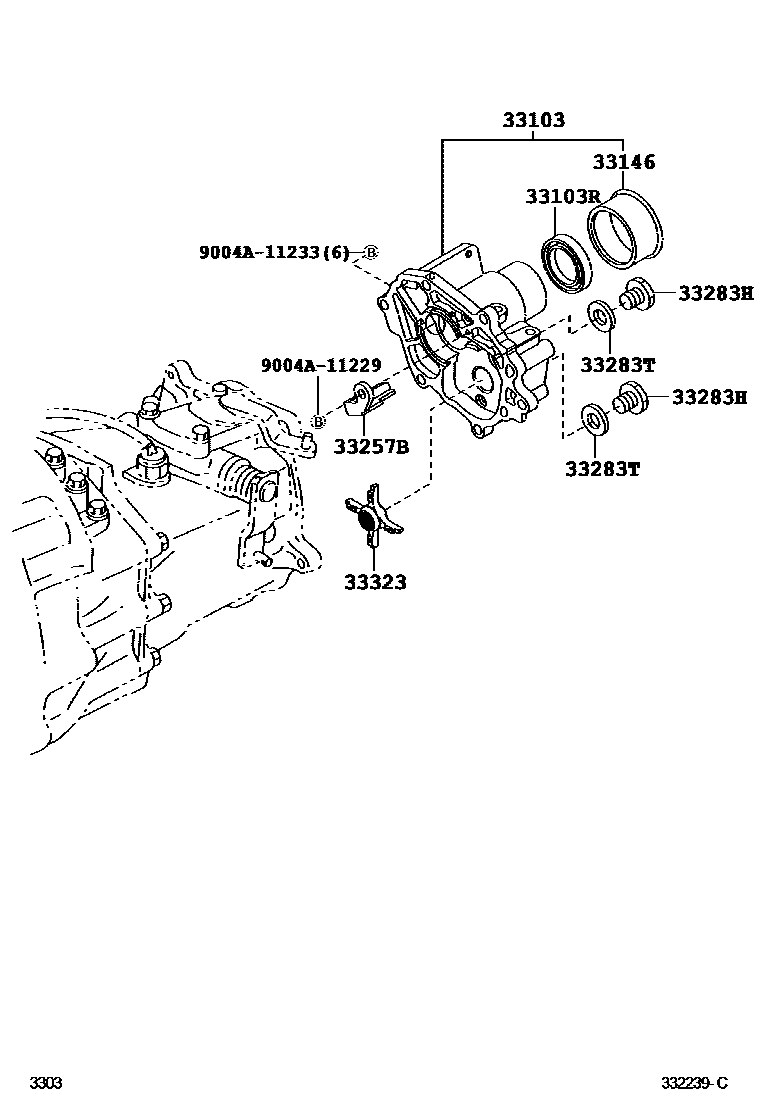

EXTENSION HOUSING (MTM)

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-B0010iF601..5F200312-200608

main33103-BZ010iF60#..5F200610-200708

main33103-BZ020iF60#..5F200708

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main9004A-31014iF601..5F200312-200608

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-87404iF601..5F200312-200608

sub33146-B5020

main33146-BZ010iF60#..5F200610-201007

main33146-BZ040iF60#..5F201007

33257BPLATE, GEAR OIL

main35345-BZ010iF601..5F200312-200608

sub35257-87501

33283HPLUG, W/HEAD STRAIGHT SCREW

main90043-41052×2iF601..5F200507-200605

main9004A-34010×2iF60#..5F200610

main90341-16012×2iF601..5F200312-200507

33283TGASKET (FOR HEAD STRAIGHT SCREW PLUG)

main9004A-43006×2iF601..5F200312-200608

33323SLINGER, OUTPUT SHAFT OIL

main33467-87501iF601..5F200312-200608

main33467-BZ010iF60#..5F200610-201106

main33467-BZ020iF60#..5F201106

9004A11229

main9004A-11229

9004A11233

main9004A-11233

9 parts on this diagram · 1 diagram in section
