ANTENNA

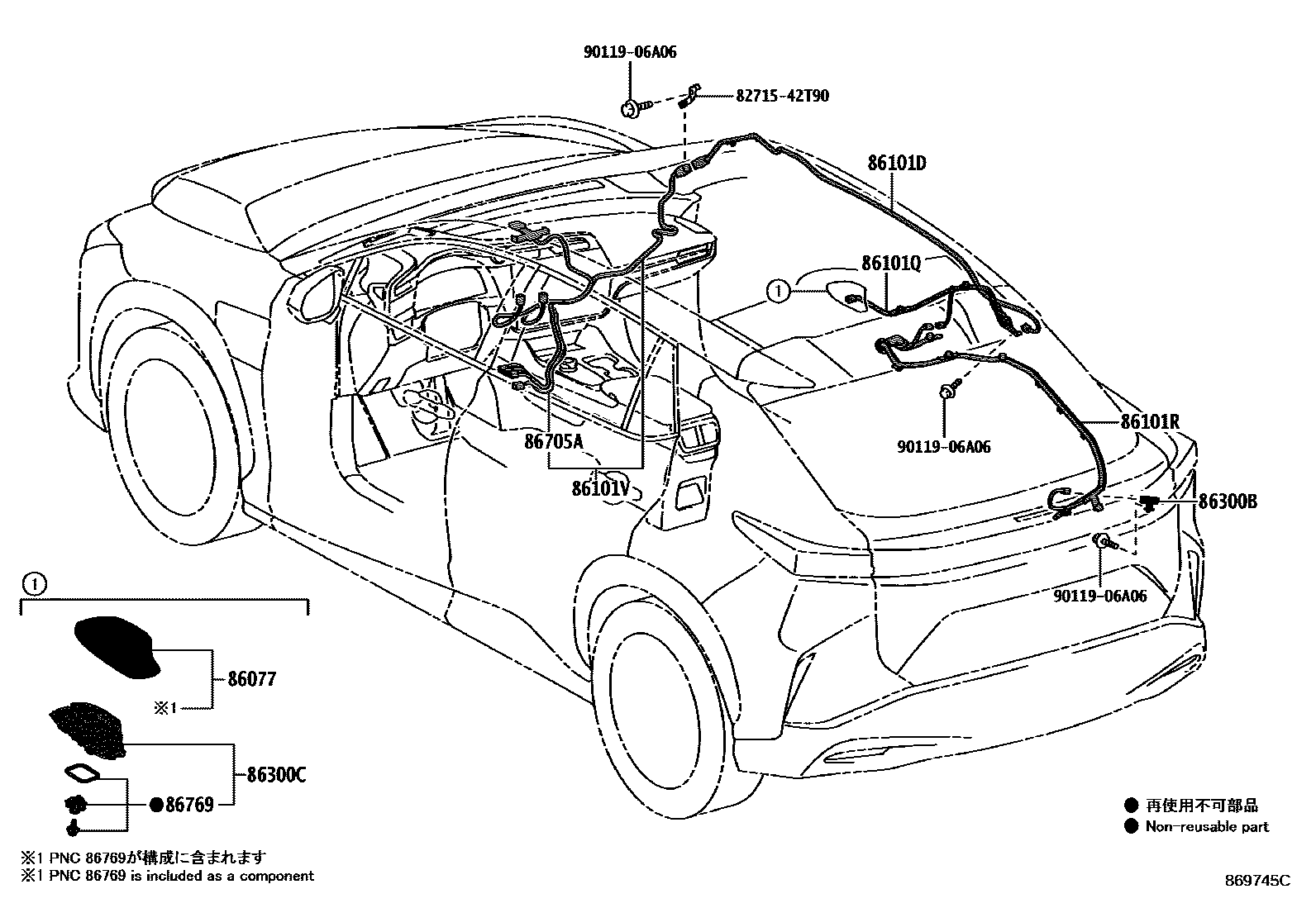

Parts diagram

86077COVER KIT, ANTENNA

main86077-48060-A1i202301-202311

SONIC QUARTZ,085

main86077-48060-B1i202301-202311

SONIC CHROME,1L1

main86077-48060-B2i202301-202311

SONIC IRIDIUM,1L2

main86077-48060-C0i202301-202311

GRAPHITE BLACK GF.,223

main86077-48060-C1i202301-202311

BLACK,2YF ,2YG ,2YH

main86077-48060-E0i202301-202311

SONIC COPPER,4Y5

main86077-48060-J2i202301-202311

AETHER ME.,8Z2

86101DCORD SUB-ASSY, ANTENNA, NO.3

main86101-46570i202301-202311

86101QCORD SUB-ASSY, ANTENNA, NO.4

main86101-46270i202301-202311

86101RCORD SUB-ASSY, ANTENNA, NO.5

main86101-46200i202311

main86101-46200i202301-202311

BASE PACKAGE&COLD AREA SPEC&CLEARANCE & BACK SONAR-WITHOUT & WITH(*RCTA)&BACK MONITOR-WITH

86101VCORD SUB-ASSY, ANTENNA, NO.6

main86101-46440i202301-202311

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-48351i202301-202311

86300CANTENNA ASSY, AMPLIFIER, NO.2

main86760-42030i202301-202311

86705ACORD SUB-ASSY, TELEPHONE ANTENNA

main86713-46020i202301-202311

86769HOUSING, ROOF ANTENNA

main86769-K0010i202301-202311

8271542T90BRACKET,WIRING HARNESS CLAMP

main82715-42T90

9011906A06

main90119-06A06

11 parts on this diagram · 1 diagram in section
