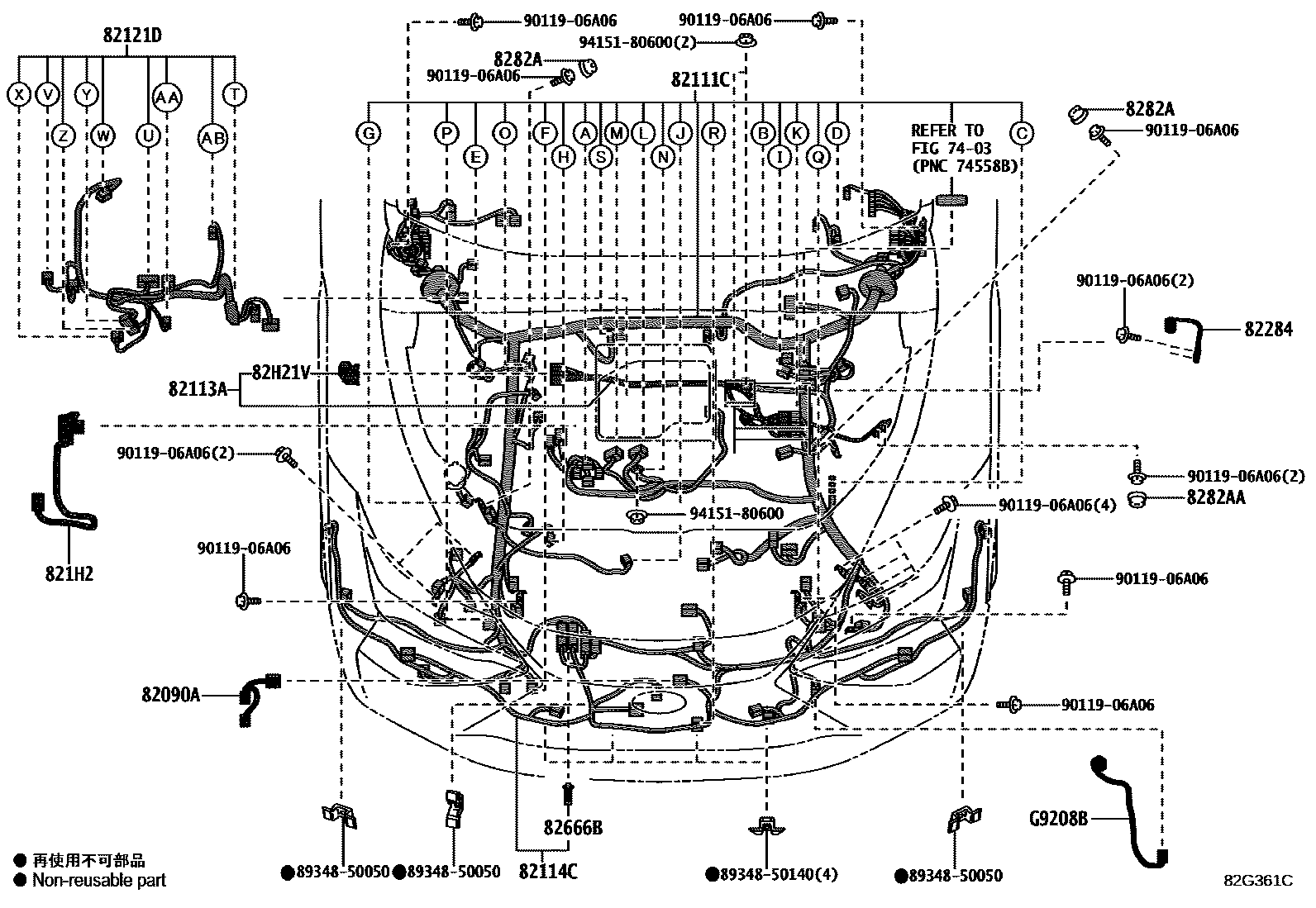

WIRING & CLAMP

0001 1MOTOR ROOM 1/2 0002 1MOTOR ROOM 2/2 0003 1INSTRUMENT PANEL 0004 1DOOR 0005 1FLOOR & ROOF 0006 1HIGH TENSION CABLE 0007 1SEAT 0008 1CLAMP & BRACKET 0009 1CONNECTOR 1/2 0010 1CONNECTOR 2/2

7403

82090AWIRE ASSY, EXTENSION

main82090-46010iXEBM15202301-202311

82111CWIRE, FRONT COMPARTMENT, MAIN

main82111-46270iXEBM15202301-202311

main82111-46271iXEBM15202311-202410

main82111-46272iXEBM15202410

main82111-46460iXEBM10202311-202410

main82111-46461iXEBM10202410

82113AWIRE, FRONT COMPARTMENT, NO.3

main82113-42080iXEBM1#¥9,000202311

main82113-46030iXEBM15¥10,000202301-202311

82114CWIRE, FRONT COMPARTMENT, NO.4

main82114-46040iXEBM1#202301-202311

82121DWIRE, MOTOR

main82121-42T90iXEBM1#¥11,700202301-202311

821H2WIRE, HV AIR CONDITIONER

main821H2-42040iXEBM1#¥9,000202301-202311

82284WIRE, EARTH

main82284-42080iXEBM1#¥2,680202301-202311

82666BHOLDER, CONNECTOR NO.3

main82666-42020iXEBM1#¥160202301-202311

8282ACAP, EARTH BOLT, NO.1

main8282A-52010iXEBM15¥60202301-202311

8282AACAP, EARTH BOLT, NO.2

main8282A-52010iXEBM1#¥60202301-202311

82H21VCOVER, CONNECTOR

main82821-33460iXEBM1#¥360202301-202311

G9208BWIRE SUB-ASSY, INVERTER

mainG920842040iXEBM15202301-202311

8934850050RETAINER, ULTRASONIC SENSOR, NO.1

main89348-50050¥260

8934850140RETAINER, ULTRASONIC SENSOR, NO.1

main89348-50140¥200

9011906A06

main90119-06A06¥60

9415180600

main94151-80600¥60

17 parts on this diagram · 10 diagrams in section
