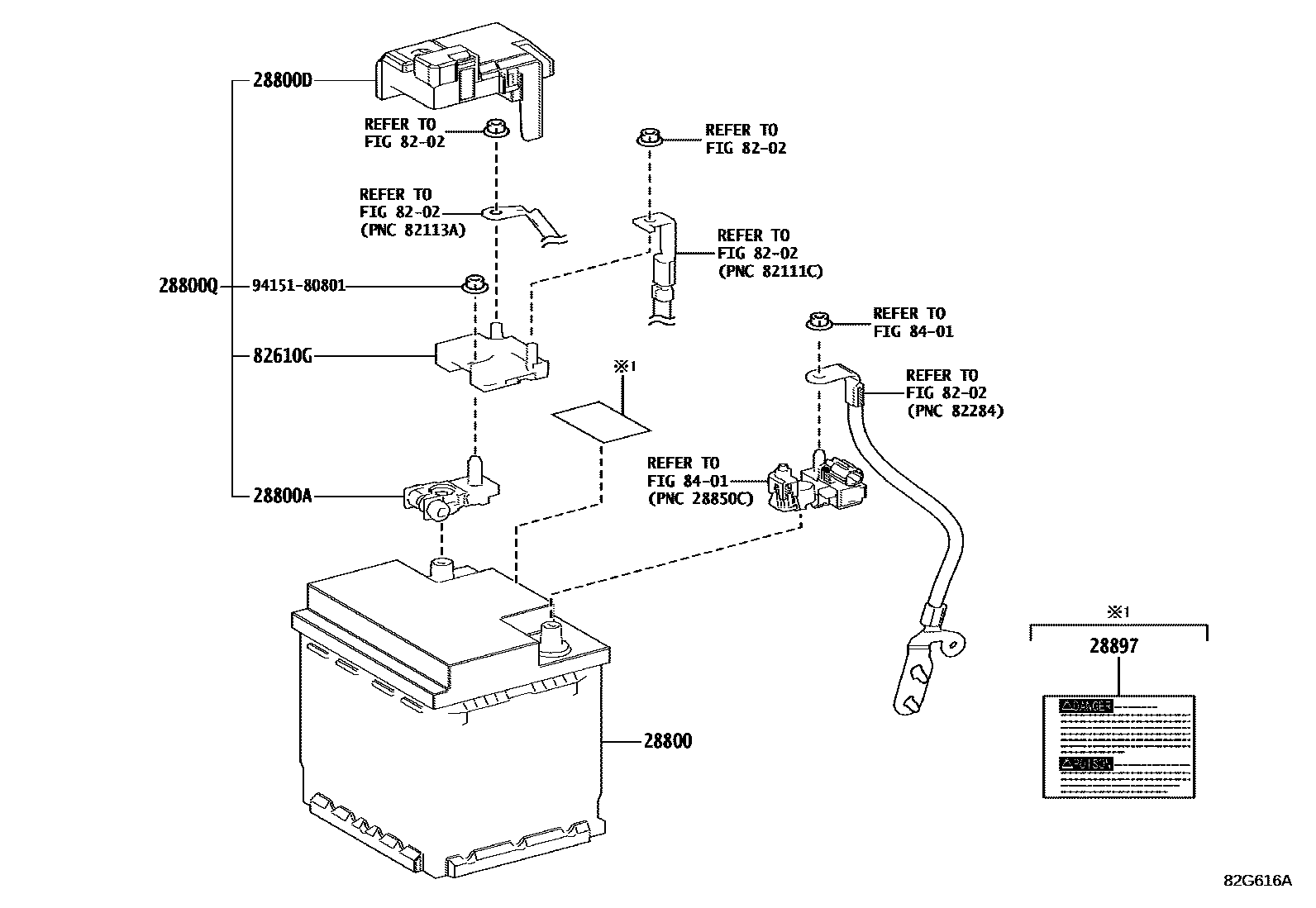

BATTERY & BATTERY CABLE

0001 112V BATTERY 0002 1EV BATTERY 0003 1EV BATTERY 0004 1EV BATTERY 0005 1EV BATTERY 0006 1EV BATTERY 0007 1EV BATTERY 0008 1SERVICE PLUG

28800BATTERY

main28800-24101iEM..XEBM15202301-202302

LN2

sub28800-24102

main28800-24102iEM..XEBM1#202303-202404

LN2

sub28800-24103

main28800-24103iEM..XEBM1#202405

LN2

28800ATERMINAL, BATTERY POSITIVE

main90982-05071iEM..XEBM1#202301-202311

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-42140iEM..XEBM1#202301-202311

28800QCOVER, CONNECTOR(FOR BATTERY)

main82821-42390iEM..XEBM1#202301-202311

28897PLATE, BATTERY CAUTION

main28897-24020

8202

82610GBLOCK ASSY, FUSE

main82620-42070iXEBM1#202301-202311

8401

9415180801

main94151-80801

9 parts on this diagram · 8 diagrams in section
