REAR COMBINATION LAMP

52562ERETAINER, REAR BUMPER, UPPER RH

main52562-46020iXEBM1#¥4,890202301-202311

52563DRETAINER, REAR BUMPER, UPPER LH

main52563-46020iXEBM1#¥4,890202301-202311

6101

81496GUIDE, REAR COMBINATION LAMP

main81496-52020iXEBM1#¥70202301-202311

81496BGUIDE, REAR LAMP

main81496-78010iXEBM1#¥90202301-202311

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-60010iXEBM1#¥100202301-202311

81497COVER, REAR COMBINATION LAMP, RH

main81497-46010iXEBM1#¥990202301-202311

81498COVER, REAR COMBINATION LAMP, LH

main81498-46010iXEBM1#¥990202301-202311

81536BLED, REAR TURN SIGNAL LAMP

main81536-46120iXEBM1#¥2,270202301-202311

81536DLED, TAILLAMP

main81965-46010iXEBM1#¥3,210202301-202311

81536GLED, BACK-UP LAMP

main8159A-52420iXEBM1#¥2,500202301-202311

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-46120iXEBM1#202301-202311

81552CGASKET, REAR COMBINATION LAMP

main81538-42200iXEBM1#¥670202301-202311

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-46120iXEBM1#¥1,270202301-202311

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-46120iXEBM1#202301-202311

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-46120iXEBM1#¥1,270202301-202311

81580ALAMP ASSY, REAR

main81580-46010iXEBM1#¥48,900202301-202311

81581HLENS & BODY, REAR LAMP

main81581-46010iXEBM1#¥32,900202301-202311

81582GASKET, REAR LAMP

main81538-42200iXEBM1#¥670202301-202311

81584DGASKET, REAR LAMP

main81584-22040iXEBM1#¥190202301-202311

81585SOCKET & WIRE, REAR LAMP

main81585-46010iXEBM1#¥1,940202301-202311

7544246040PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2

main75442-46040¥4,170

8155A42220

main8155A-42220¥40

9010905111

main90109-05111¥60

9015960621

main90159-60621¥60

9017905102

main90179-05102¥90

9018906242

main90189-06242¥70

9046709206

main90467-09206¥80

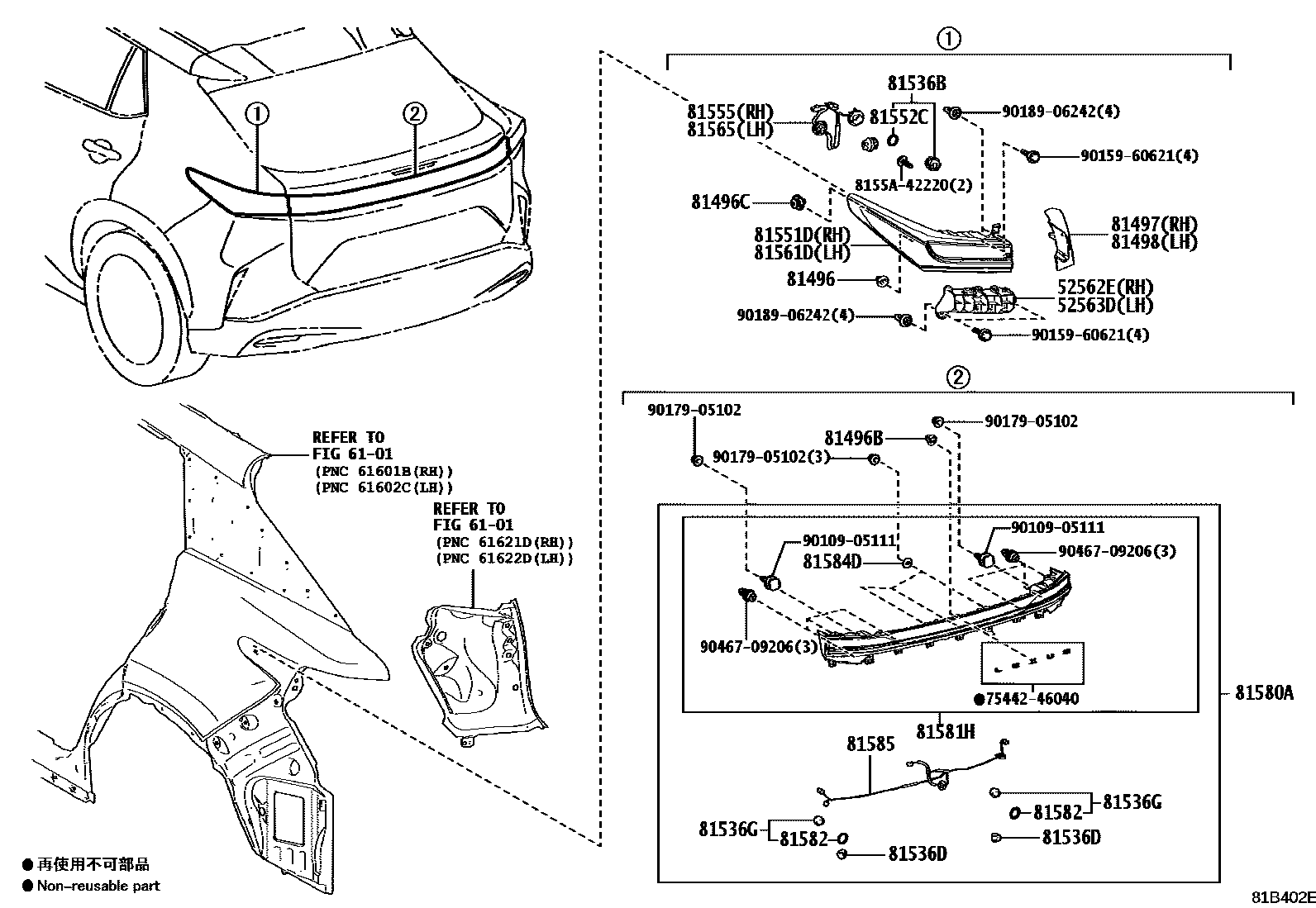

28 parts on this diagram · 1 diagram in section
