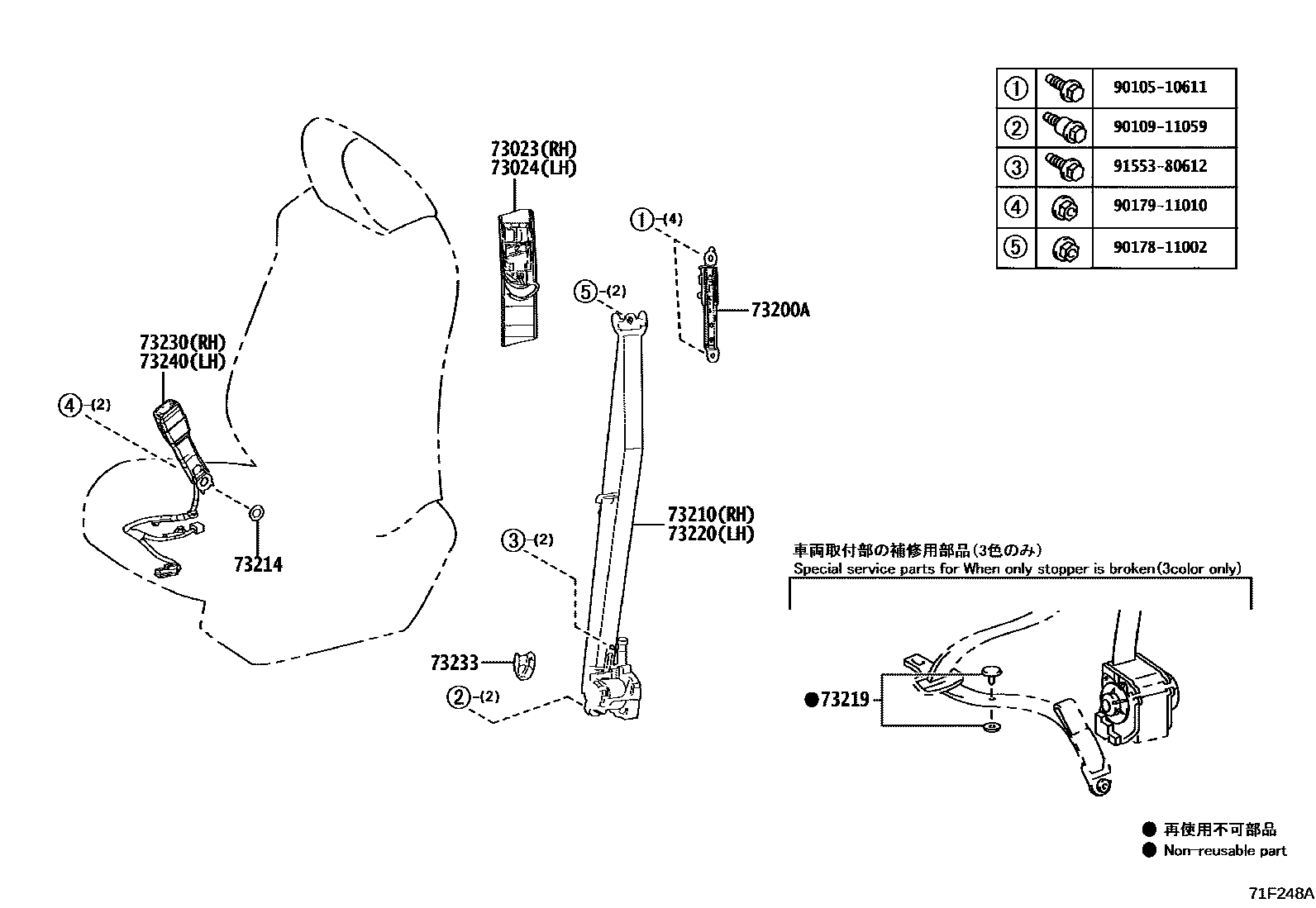

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT 0002 1REAR SEAT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-12030-C0iXEBM1#202301-202311

BLACK,TRIM1#,4#,8#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-12020-C0iXEBM1#202301-202311

BLACK,TRIM1#,4#,8#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-12070iXEBM1#202301-202311

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-46060-C1iXEBM1#202301-202311

BLACK,TRIM1#,4#,8#

73214PLATE, FRONT SEAT BELT ANCHOR

main73214-75010iXEBM1#202301-202311

73219STOPPER, TONGUE PLATE

main73219-02010iXEBM1#202301-202311

BLACK

main73219-02020iXEBM15202301-202311

GRAY

main73219-02030iXEBM1#202301-202311

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-76181-C1iXEBM1#202301-202311

BLACK,TRIM1#,4#,8#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-46110-C0iXEBM1#202301-202311

BLACK,TRIM1#,4#,8#

73233COVER, LAP BELT OUTER ANCHOR

main73233-60020-C1iXEBM1#202301-202311

BLACK,TRIM1#,4#,8#

sub73233-60020

sub73233-35010

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-46100-C0iXEBM1#202301-202311

BLACK,TRIM1#,4#,8#

9010510611

main90105-10611

9010911059

main90109-11059

9017811002

main90178-11002

9017911010

main90179-11010

9155380612

main91553-80612

15 parts on this diagram · 2 diagrams in section
