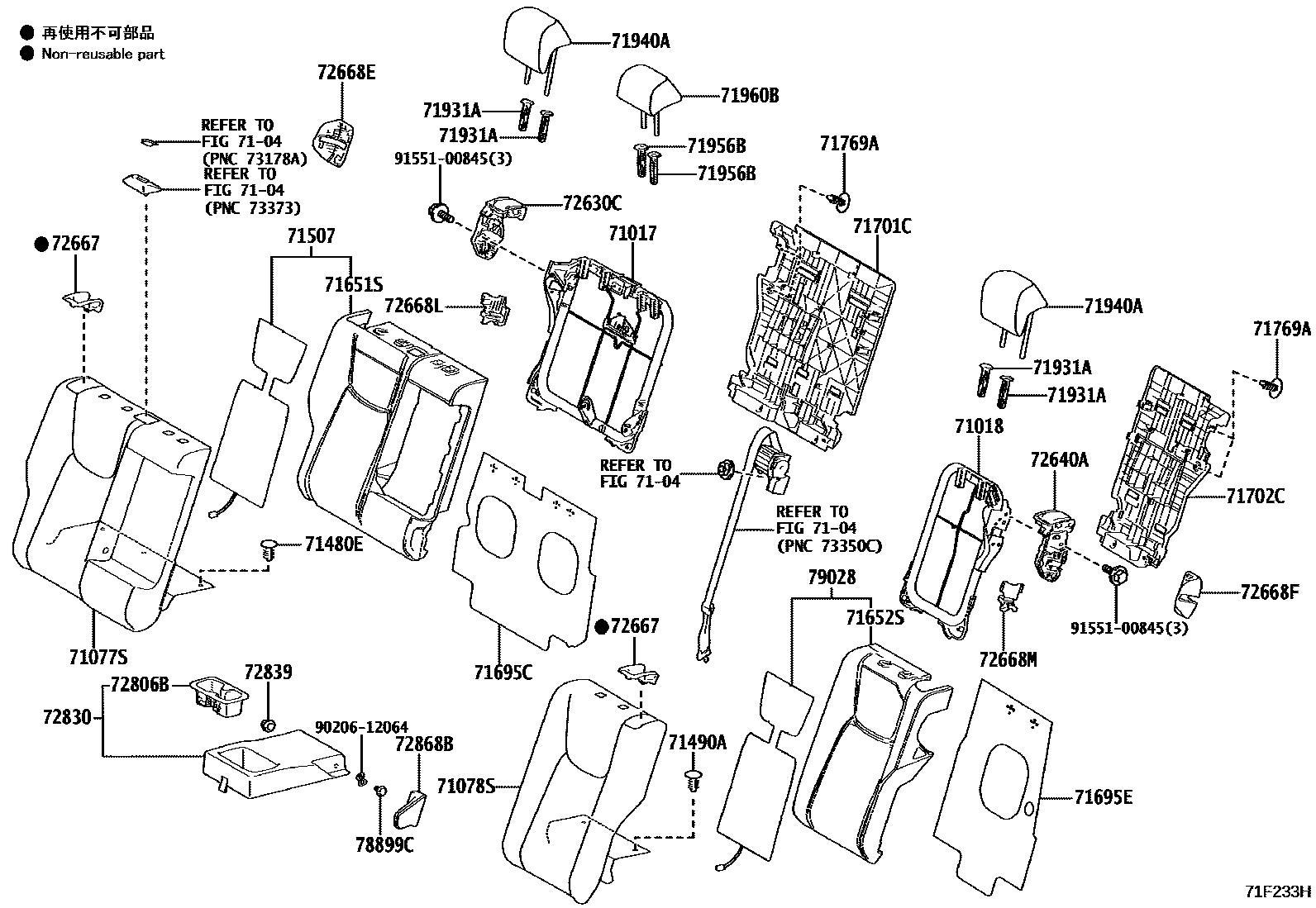

REAR SEAT & SEAT TRACK

0001 1SEAT BACK 0002 1SEAT BACK 0003 1SEAT CUSHION 0004 1SEAT CUSHION 0005 1FITTING PARTS

71017FRAME SUB-ASSY, REAR SEATBACK, RH

main71017-46070iXEBM1#202301-202311

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-46080iXEBM1#202301-202311

7104

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-46380-B1iXEBM15..C202301-202311

DK.GRAY,TRIM1#

main71077-46380-E1iXEBM15..C202301-202311

HAZEL,TRIM4#

main71077-46380-J2iXEBM15..C202301-202311

ORAGE,TRIM8#

main71077-46420-B1iXEBM15..L202301-202309

DK.GRAY,TRIM1#

main71077-46420-E1iXEBM15..L202301-202309

HAZEL,TRIM4#

main71077-46420-J1iXEBM15..L202301-202309

ORAGE,TRIM8#

main71077-46421-B2iXEBM1#..L202309-202311

DK.GRAY,TRIM1#

main71077-46421-E2iXEBM15..L202309-202311

HAZEL,TRIM4#

main71077-46421-J2iXEBM1#..L202309-202311

ORAGE,TRIM8#

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-46380-B1iXEBM15..C202301-202311

DK.GRAY,TRIM1#

main71078-46380-E1iXEBM1#..C202301-202311

HAZEL,TRIM4#

main71078-46380-J2iXEBM1#..C202301-202311

ORAGE,TRIM8#

main71078-46410-B1iXEBM15..L202301-202309

DK.GRAY,TRIM1#

main71078-46410-E1iXEBM15..L202301-202309

HAZEL,TRIM4#

main71078-46410-J1iXEBM15..L202301-202309

ORAGE,TRIM8#

main71078-46411-B2iXEBM1#..L202309-202311

DK.GRAY,TRIM1#

main71078-46411-E2iXEBM15..L202309-202311

HAZEL,TRIM4#

main71078-46411-J2iXEBM1#..L202309-202311

ORAGE,TRIM8#

71480ECLIP, REAR SEATBACK, RH

main90467-07080-C0iXEBM1#202301-202311

BLACK

sub90467-07080

71490ACLIP, REAR SEATBACK, LH

main90467-07080-C0iXEBM1#202301-202311

BLACK

sub90467-07080

71507PAD SUB-ASSY, REAR SEATBACK, RH

main79027-46010iXEBM15202301-202311

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-46080iXEBM15..C202301-202311

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71652-46080iXEBM15..C202301-202311

71695CPROTECTOR, REAR SEAT, NO.1

main71695-78020iXEBM1#202301-202311

71695EPROTECTOR, REAR SEAT, NO.2

main71695-78030iXEBM1#202301-202311

71701CBOARD SUB-ASSY, REAR SEATBACK, RH

main71701-78010iXEBM15202301-202311

71702CBOARD SUB-ASSY, REAR SEATBACK, LH

main71702-78010iXEBM1#202301-202311

71769ACLIP, REAR SEATBACK BOARD

main71769-58010-C0iXEBM1#202301-202311

BLACK

71931ASUPPORT, REAR SEAT HEADREST

main71930-47050-C5iXEBM1#202301-202311

W(LOCK),BLACK,TRIM1#,4#,8#

main71931-47030-C4iXEBM15202301-202311

W/O(LOCK),BLACK,TRIM1#,4#,8#

71940AHEADREST ASSY, REAR SEAT

main71940-46170-B0iXEBM15..C202301-202311

DK.GRAY,TRIM1#

main71940-46170-E0iXEBM1#..C202301-202311

HAZEL,TRIM4#

main71940-46170-J0iXEBM1#..C202301-202311

ORAGE,TRIM8#

main71940-46190-B0iXEBM15..L202301-202311

DK.GRAY,TRIM1#

main71940-46190-E0iXEBM1#..L202301-202311

HAZEL,TRIM4#

main71940-46190-J0iXEBM15..L202301-202311

ORAGE,TRIM8#

71956BSUPPORT, REAR SEAT HEADREST

main71930-47050-C5iXEBM15202301-202311

W(LOCK),BLACK,TRIM1#,4#,8#

main71931-47030-C4iXEBM1#202301-202311

W/O(LOCK),BLACK,TRIM1#,4#,8#

71960BHEADREST ASSY, REAR SEAT, CENTER

main71960-46090-B0iXEBM1#..C202301-202311

DK.GRAY,TRIM1#

main71960-46090-E0iXEBM1#..C202301-202311

HAZEL,TRIM4#

main71960-46090-J0iXEBM15..C202301-202311

ORAGE,TRIM8#

main71960-46100-B0iXEBM1#..L202301-202311

DK.GRAY,TRIM1#

main71960-46100-E0iXEBM15..L202301-202311

HAZEL,TRIM4#

main71960-46100-J0iXEBM1#..L202301-202311

ORAGE,TRIM8#

72630CLOCK ASSY, REAR SEATBACK, RH

main72630-48070-C0iXEBM1#202301-202311

BLACK,TRIM1#,4#,8#

72640ALOCK ASSY, REAR SEATBACK, LH

main72640-48020-C0iXEBM1#202301-202311

BLACK,TRIM1#,4#,8#

72667BEZEL, REAR SEATBACK LOCK, UPPER

main72667-48060-C0iXEBM1#202301-202311

BLACK,TRIM1#,4#,8#

72668EBEZEL, REAR SEATBACK LOCK, LOWER RH

main72668-48030-C0iXEBM1#202301-202311

BLACK,TRIM1#,4#,8#

72668FBEZEL, REAR SEATBACK LOCK, LOWER LH

main72668-48040-C0iXEBM1#202301-202311

BLACK,TRIM1#,4#,8#

72668LBEZEL, REAR SEATBACK LOCK, LOWER RH NO.2

main72668-48050iXEBM15202301-202311

72668MBEZEL, REAR SEATBACK LOCK, LOWER LH NO.2

main72668-48060iXEBM15202301-202311

72806BHOLDER SUB-ASSY, REAR SEAT CENTER ARMREST CUP

main72806-78010-C0iXEBM1#202301-202311

BLACK,TRIM1#,4#,8#

72830ARMREST ASSY, REAR SEAT, CENTER

main72830-46220-B2iXEBM15..C202301-202311

DK.GRAY,TRIM1#

main72830-46220-E2iXEBM1#..C202301-202311

HAZEL,TRIM4#

main72830-46220-J2iXEBM1#..C202301-202311

ORAGE,TRIM8#

main72830-46230-B2iXEBM1#..L202301-202311

DK.GRAY,TRIM1#

main72830-46230-E2iXEBM1#..L202301-202311

HAZEL,TRIM4#

main72830-46230-J2iXEBM15..L202301-202311

ORAGE,TRIM8#

72839SHIM, REAR SEAT ARMREST HINGE

main72839-22010iXEBM1#202301-202311

72868BCOVER, CENTER ARMREST HINGE

main72868-42040-C0iXEBM1#202301-202311

BLACK,TRIM1#,4#,8#

78899CBOLT, REAR SUB SEAT

main78899-60070iXEBM1#202301-202311

79028PAD SUB-ASSY, NO.2 SEATBACK, LH

main79028-46010iXEBM1#202301-202311

9020612064

main90206-12064

9155100845

main91551-00845

34 parts on this diagram · 5 diagrams in section
