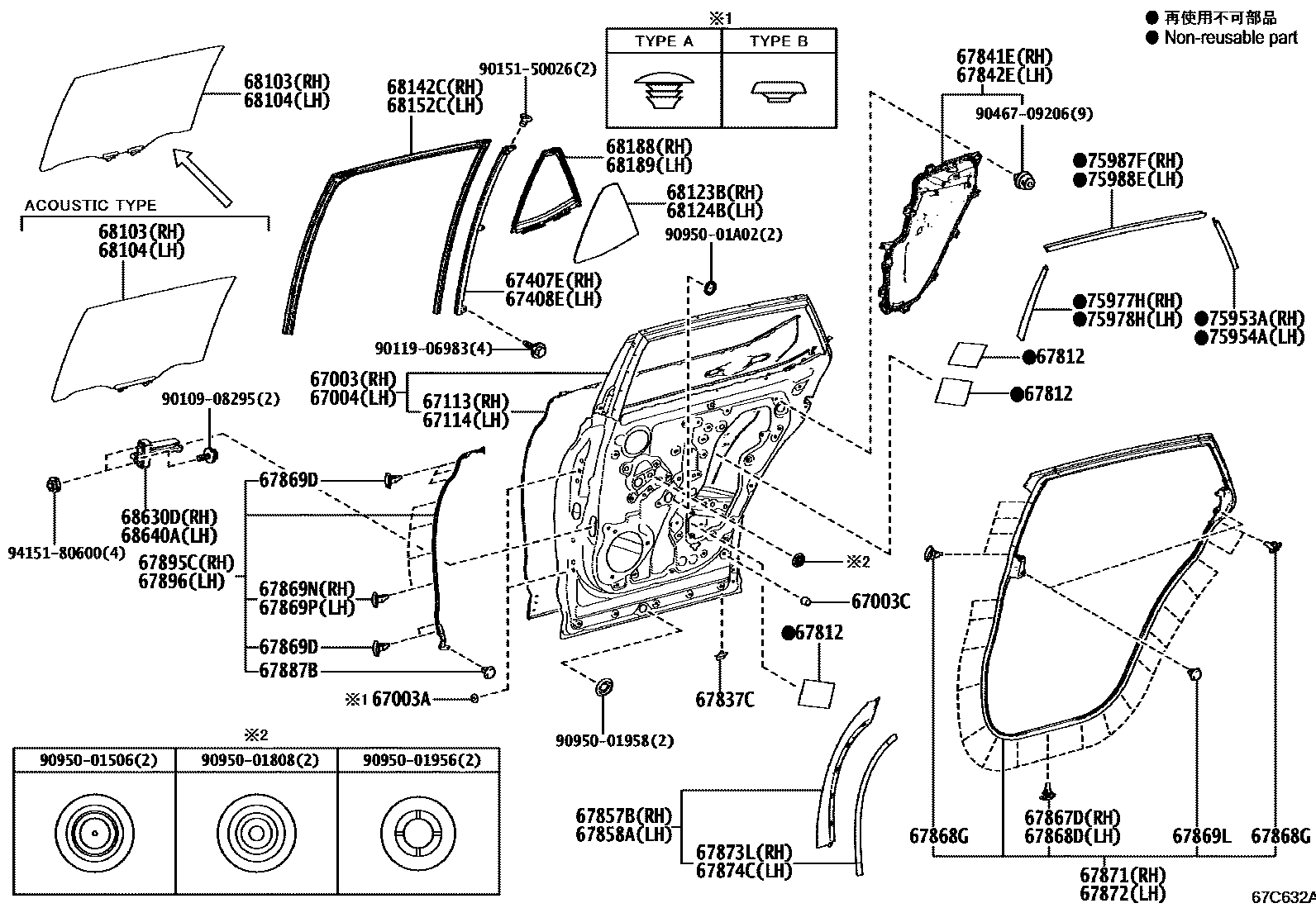

REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
DEST.PACKAGE (EXC/ERP.)-CANADA SPEC
DEST.PACKAGE (EXC/ERP.)-KOREA SPEC
CANADA SPEC
KOREA SPEC
67003APLUG, HOLE(FOR REAR DOOR PANEL)
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
67003CCUSHION, REAR DOOR PANEL
67004PANEL SUB-ASSY, REAR DOOR, LH
CANADA SPEC
DEST.PACKAGE (EXC/ERP.)-CANADA SPEC
DEST.PACKAGE (EXC/ERP.)-KOREA SPEC
KOREA SPEC
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67812PAD, REAR DOOR SILENCER
67837CSEAL, REAR DOOR DUST PROOF
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67857BPROTECTOR, REAR DOOR PANEL, RH
67858APROTECTOR, REAR DOOR PANEL, LH
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67868GRETAINER, DOOR WEATHERSTRIP
67869DCLIP, DOOR WEATHERSTRIP
67869LCLIP, REAR DOOR WEATHERSTRIP
67869NCLIP, REAR DOOR WEATHERSTRIP, RH
67869PCLIP, REAR DOOR WEATHERSTRIP, LH
67871WEATHERSTRIP, REAR DOOR, RH
67872WEATHERSTRIP, REAR DOOR, LH
67873LWEATHERSTRIP, REAR DOOR, NO.5 RH
67874CWEATHERSTRIP, REAR DOOR, NO.5 LH
67887BCLIP(FOR REAR DOOR WEATHERSTRIP)
67895CWEATHERSTRIP, REAR DOOR, NO.3 RH
67896WEATHERSTRIP, REAR DOOR, NO.3 LH
68103GLASS SUB-ASSY, REAR DOOR, RH
REAR SIDE GLASS-PRIVACY(ACOUSTIC)
68104GLASS SUB-ASSY, REAR DOOR, LH
REAR SIDE GLASS-PRIVACY(ACOUSTIC)
68123BGLASS, REAR DOOR QUARTER WINDOW, RH
68124BGLASS, REAR DOOR QUARTER WINDOW, LH
68142CRUN, REAR DOOR GLASS, RH
68152CRUN, REAR DOOR GLASS, LH
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68630DCHECK ASSY, REAR DOOR, RH
68640ACHECK ASSY, REAR DOOR, LH
75953ATAPE, BLACK OUT, INNER REAR RH
75954ATAPE, BLACK OUT, INNER REAR LH
75977HSTRIPE, REAR DOOR OUTSIDE, LOWER RH
75978HSTRIPE, REAR DOOR OUTSIDE, LOWER LH
75987FSTRIPE, REAR DOOR, OUTSIDE, RH
75988ESTRIPE, REAR DOOR, OUTSIDE LH
9010908295
9011906983
9015150026
9046709206
9095001506
9095001808
9095001956
9095001958
9095001A02
9415180600
54 parts on this diagram · 2 diagrams in section
