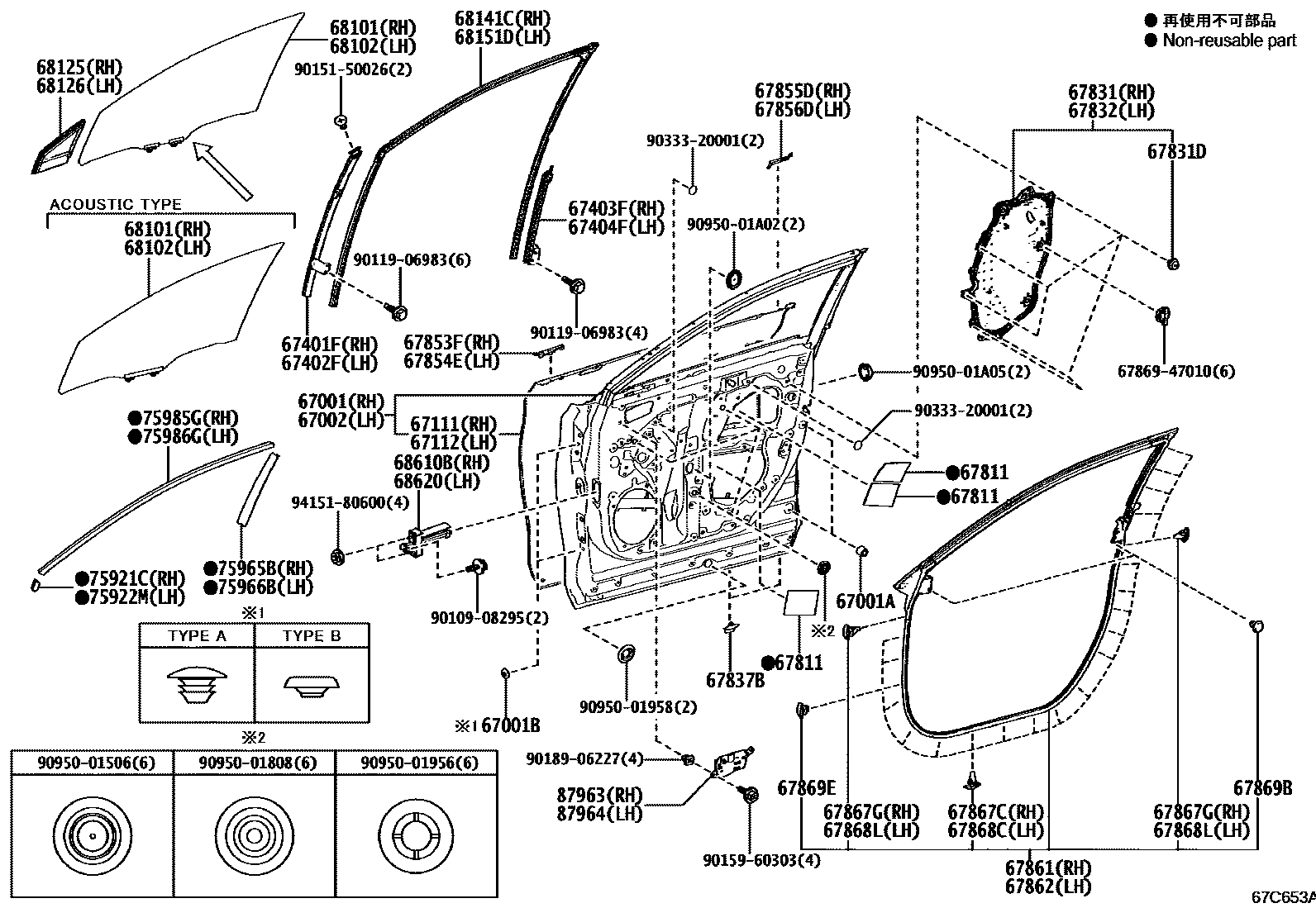

FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
DEST.PACKAGE (EXC/ERP.)-KOREA SPEC
DEST.PACKAGE (EXC/ERP.)-CANADA SPEC
CANADA SPEC
KOREA SPEC
67001ACUSHION, FRONT DOOR PANEL
67001BPLUG, HOLE(FOR FRONT DOOR PANEL)
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
67002PANEL SUB-ASSY, FRONT DOOR, LH
CANADA SPEC
DEST.PACKAGE (EXC/ERP.)-CANADA SPEC
DEST.PACKAGE (EXC/ERP.)-KOREA SPEC
KOREA SPEC
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67811PAD, FRONT DOOR SILENCER
67831COVER, FRONT DOOR SERVICE HOLE, RH
67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)
67832COVER, FRONT DOOR SERVICE HOLE, LH
67837BSEAL, FRONT DOOR DUST PROOF
67853FPROTECTOR, FRONT DOOR, UPPER RH
67854EPROTECTOR, FRONT DOOR, UPPER LH
67855DPROTECTOR, FRONT DOOR PANEL, RH
67856DPROTECTOR, FRONT DOOR PANEL, LH
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
67867GRETAINER, DOOR WEATHERSTRIP, RH
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
67868LRETAINER, DOOR WEATHERSTRIP, LH
67869BCLIP, FRONT DOOR WEATHERSTRIP
67869ECLIP, FRONT DOOR WEATHERSTRIP
68101GLASS SUB-ASSY, FRONT DOOR, RH
REAR SIDE GLASS-PRIVACY(ACOUSTIC)
68102GLASS SUB-ASSY, FRONT DOOR, LH
REAR SIDE GLASS-PRIVACY(ACOUSTIC)
68125GLASS, FRONT DOOR FIX WINDOW, RH
68126GLASS, FRONT DOOR FIX WINDOW, LH
68141CRUN, FRONT DOOR GLASS, RH
68151DRUN, FRONT DOOR GLASS, LH
68610BCHECK ASSY, FRONT DOOR, RH
68620CHECK ASSY, FRONT DOOR, LH
75921CTAPE, BLACK OUT, NO.1 RH
75922MTAPE, BLACK OUT, NO.1 LH
75965BSTRIPE, FRONT DOOR NO.4 RH
75966BSTRIPE, FRONT DOOR NO.4 LH
75985GSTRIPE, FRONT DOOR OUTSIDE, RH
75986GSTRIPE, FRONT DOOR OUTSIDE, LH
87963COVER, OUTER MIRROR INSTALL HOLE, RH
87964COVER, OUTER MIRROR INSTALL HOLE, LH
6786947010PLATE, WEATHERSTRIP, CENTER DOOR, UPPER
main67869-47010
9010908295
main90109-08295
9011906983
main90119-06983
9015150026
main90151-50026
9015960303
main90159-60303
9018906227
main90189-06227
9033320001
main90333-20001
9095001506
main90950-01506
9095001808
main90950-01808
9095001956
main90950-01956
9095001958
main90950-01958
9095001A02
main90950-01A02
9095001A05
main90950-01A05
9415180600
main94151-80600
57 parts on this diagram · 2 diagrams in section
