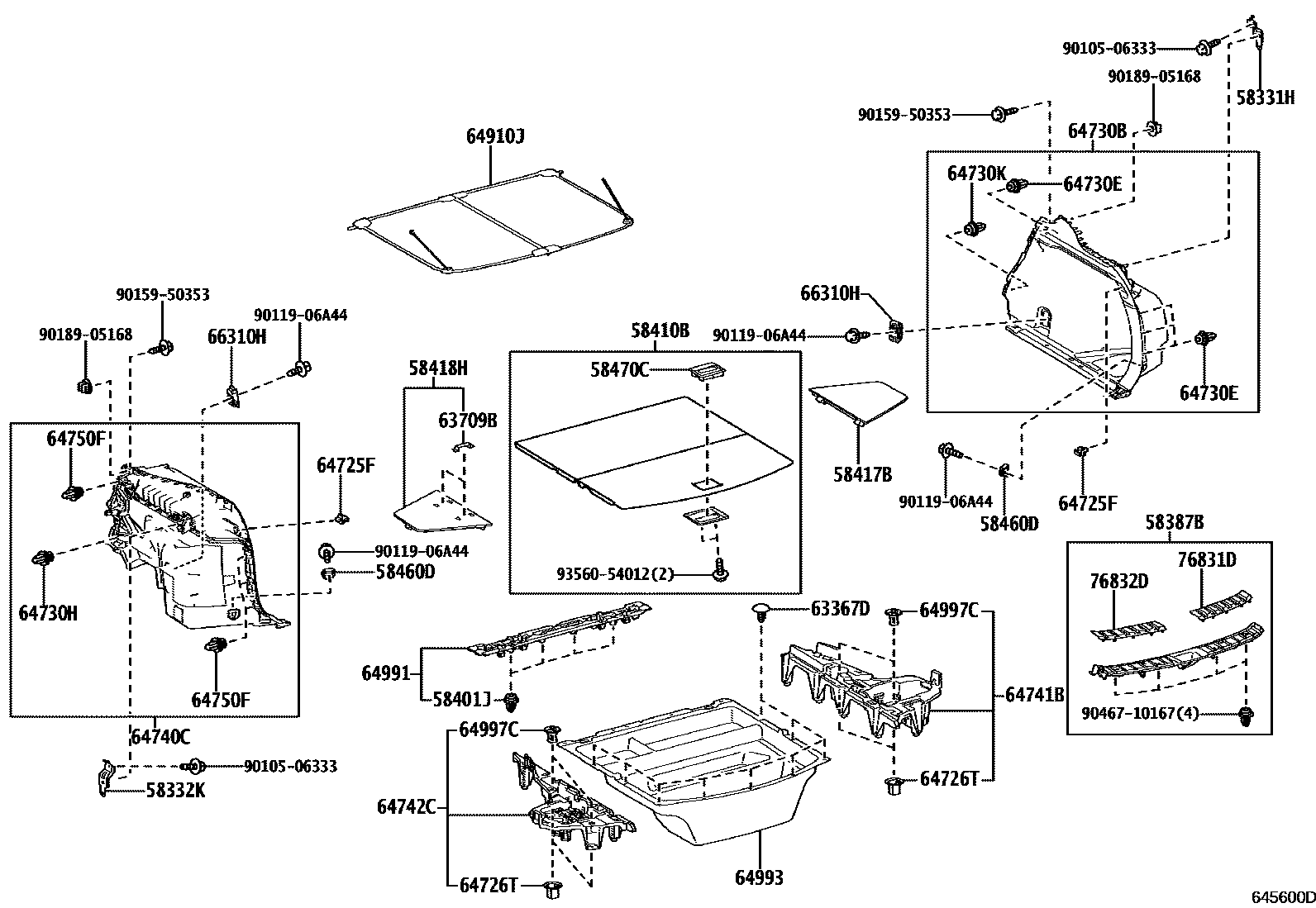

DECK BOARD & DECK TRIM COVER
58331HBRACKET, LUGGAGE COMPARTMENT TRIM, NO.1
58332KBRACKET, LUGGAGE COMPARTMENT TRIM, NO.2
58387BPLATE, REAR FLOOR FINISH
BLACK,TRIM1#,4#,8#
58401JCLIP(FOR DECK BOAD)
58410BBOARD ASSY, DECK
BLACK,TRIM1#,4#,8#
58417BBOARD, REAR FLOOR, REAR RH
BLACK,TRIM1#,4#,8#
58418HBOARD, REAR FLOOR, REAR LH
BLACK,TRIM1#,4#,8#
58460DSTRIKER ASSY, LUGGAGE HOLD BELT
58470CHANDLE ASSY, DECK BOARD
BLACK,TRIM1#,4#,8#
63367DCLIP(FOR DECK FLOOR BOX)
63709BBAND SUB-ASSY, ROOM RACK
64725FHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
64726TCLIP, DECK FLOOR BOX
SUPER WHITE 2,LH,RH
64730BPANEL ASSY, DECK TRIM SIDE, RH
BLACK,TRIM1#,4#,8#
64730ECLIP(FOR DECK TRIM SIDE BOARD)
64730HCLIP(FOR DECK TRIM SIDE PANEL)
64730KCLIP(FOR DECK SIDE TRIM PANEL)
64740CPANEL ASSY, DECK TRIM SIDE, LH
BLACK,TRIM1#,4#,8#
64741BBOX, DECK SIDE TRIM, RH
64742CBOX, DECK SIDE TRIM, LH
64750FCLIP(FOR DECK SIDE TRIM PANEL)
64910JCOVER ASSY, TONNEAU
BLACK,TRIM1#,4#,8#
64991BOX, DECK FLOOR, FRONT
64993BOX, DECK FLOOR, REAR
64997CCLIP(FOR DECK FLOOR BOX)
BLACK,LH,RH
66310HHOOK ASSY, ROPE
76831DCOVER, BACK DOOR FINISH PANEL, RH
76832DCOVER, BACK DOOR FINISH PANEL, LH
9010506333
main90105-06333
9011906A44
main90119-06A44
9015950353
main90159-50353
9018905168
main90189-05168
9046710167
main90467-10167
9356054012
main93560-54012
34 parts on this diagram · 1 diagram in section
