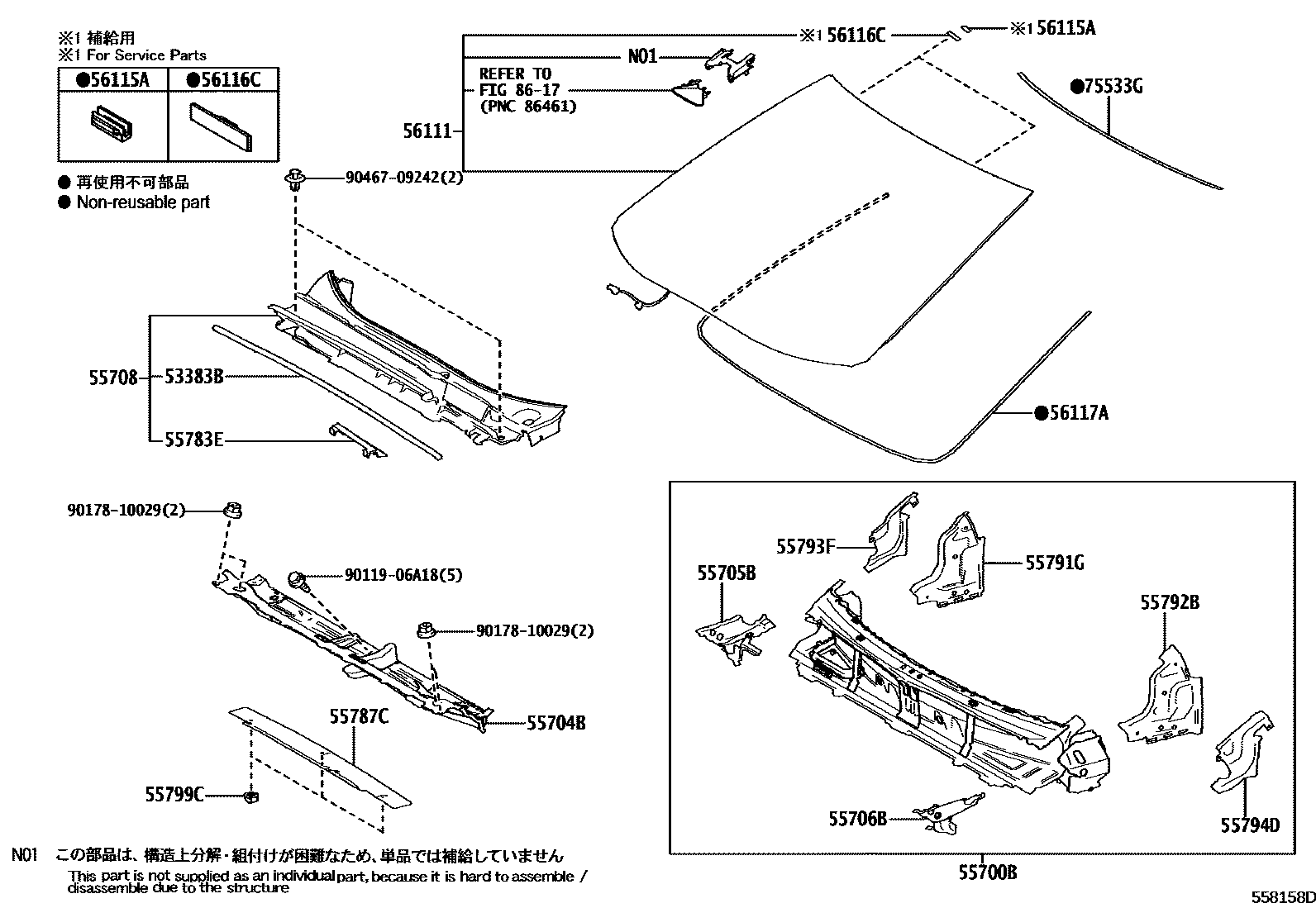

COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
55700BCOWL ASSY
55704BPANEL SUB-ASSY, COWL VENTILATOR
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55708LOUVER SUB-ASSY, COWL TOP VENTILATOR
55783ELOUVER, COWL TOP VENTILATOR, CENTER
55787CINSULATOR, COWL TOP PANEL, NO.1
55791GCOVER, COWL REINFORCEMENT, UPPER RH
55792BCOVER, COWL REINFORCEMENT, UPPER LH
55793FCOVER, COWL REINFORCEMENT, UPPER NO.2 RH
55794DCOVER, COWL REINFORCEMENT, UPPER NO.2 LH
55799CCLIP, COWL TOP VENTILATOR LOUVER
BLACK
56111GLASS, WINDSHIELD
HEAD UP DISPLAY-WITH
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
*D,L=3019
*D,L=3019,COLD AREA SPEC
*D,L=3019,COLD AREA SPEC&HEAD UP DISPLAY-WITH
*D,L=3019,HEAD UP DISPLAY-WITH
75533GMOULDING, WINDSHIELD, OUTSIDE
8617
9011906A18
main90119-06A18
9017810029
main90178-10029
9046709242
main90467-09242
22 parts on this diagram · 1 diagram in section
