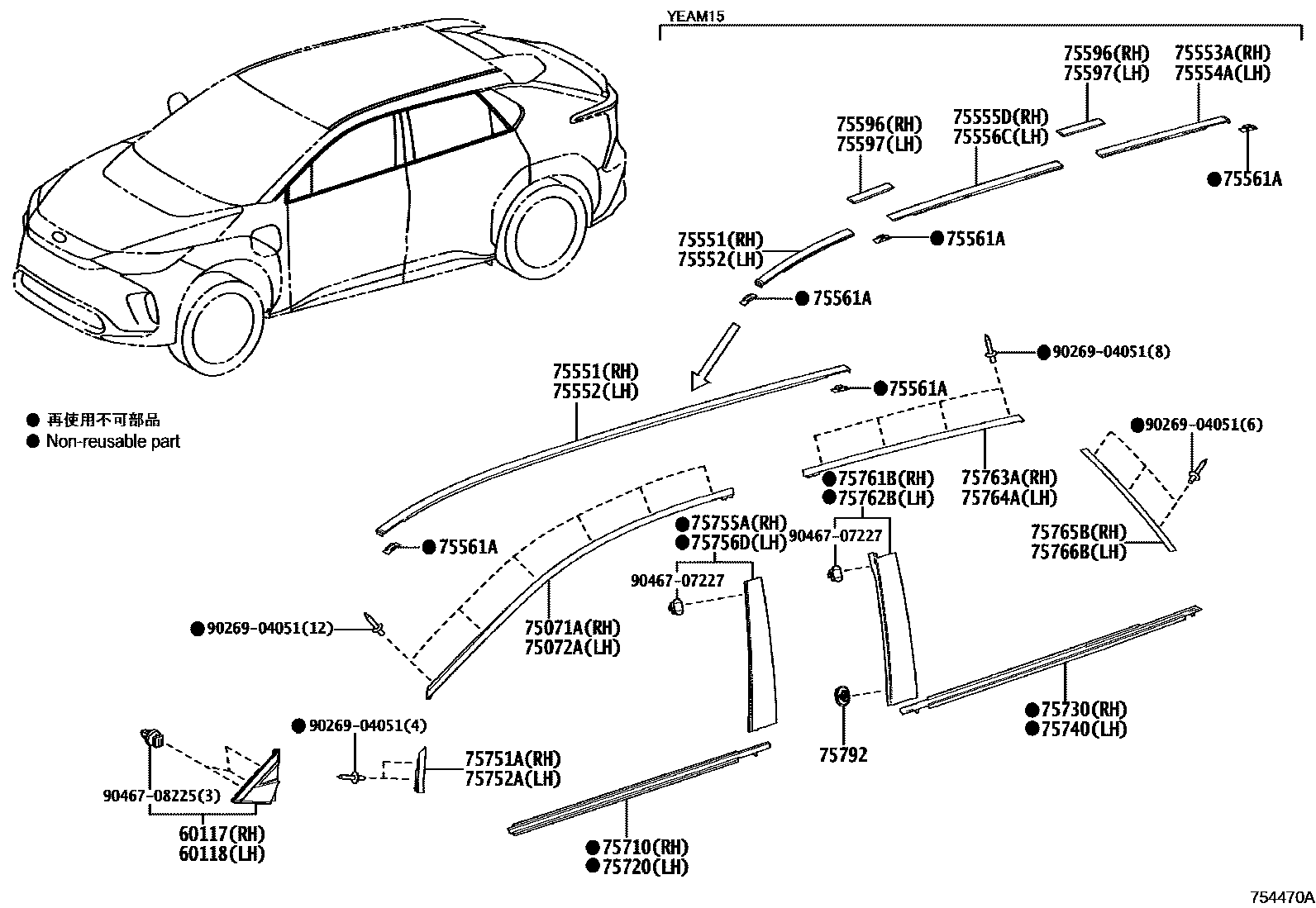

SIDE MOULDING
60117COVER SUB-ASSY, FRONT PILLAR, UPR RH
TEC. PACKAGE
60118COVER SUB-ASSY, FRONT PILLAR, UPR LH
TEC. PACKAGE
75071AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE RH
TEC. PACKAGE
75072AMOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LH
TEC. PACKAGE
75551MOULDING, ROOF DRIP SIDE FINISH, RH
NO PAINT REQ.
NO PAINT REQ.
75552MOULDING, ROOF DRIP SIDE FINISH, LH
NO PAINT REQ.
NO PAINT REQ.
75553AMOULDING, ROOF DRIP SIDE FINISH, REAR RH
75554AMOULDING, ROOF DRIP SIDE FINISH, REAR LH
75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH
75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH
75561ACLIP, ROOF DRIP SIDE FINISH MOULDING
75596COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, RH
75597COVER, ROOF DRIP SIDE FINISH MOULDING JOINT, LH
75710MOULDING ASSY, FRONT DOOR BELT, RH
75720MOULDING ASSY, FRONT DOOR BELT, LH
75730MOULDING ASSY, REAR DOOR BELT, RH
75740MOULDING ASSY, REAR DOOR BELT, LH
75751AMOULDING, FRONT DOOR WINDOW FRAME, RH(FRONT PILLAR SIDE)
75752AMOULDING, FRONT DOOR WINDOW FRAME, LH(FRONT PILLAR SIDE)
75755AMOULDING, FRONT DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)
TEC. PACKAGE
75756DMOULDING, FRONT DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)
TEC. PACKAGE
75761BMOULDING, REAR DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)
TEC. PACKAGE
75762BMOULDING, REAR DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)
TEC. PACKAGE
75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH
TEC. PACKAGE
75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH
TEC. PACKAGE
75765BMOULDING, REAR DOOR WINDOW FRAME, RH(REAR PILLAR SIDE)
75766BMOULDING, REAR DOOR WINDOW FRAME, LH(REAR PILLAR SIDE)
75792CLIP, DOOR WINDOW FRAME MOULDING
9026904051
main90269-04051
9046707227
main90467-07227
9046708225
main90467-08225
31 parts on this diagram · 2 diagrams in section
