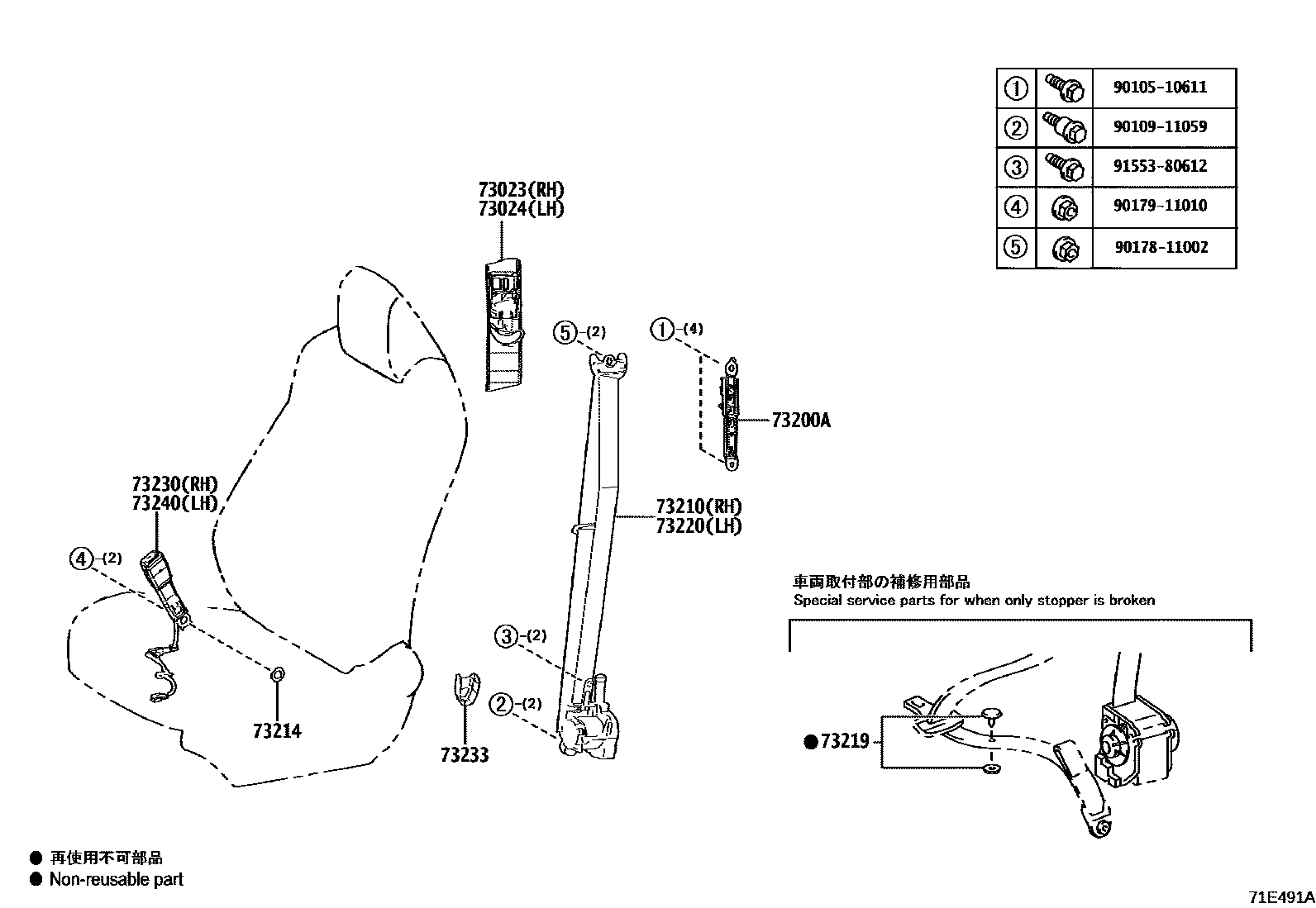

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT 0002 1REAR SEAT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-12030-C0iXEAM10..H;YEAM15..H,M202203-202411

BLACK,TRIM1#,2#

main73023-12030-C0iYEAM15..L;XEAM10..E,L,M202203-202411

BLACK,TRIM2#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-12020-C0iXEAM10..H;YEAM15..H,M202203-202411

BLACK,TRIM2#

main73024-12020-C0iYEAM15..L;XEAM10..E,L,M202203-202411

BLACK,TRIM1#,2#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-12070iXEAM10,YEAM15¥3,200202203-202411

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-42490-C0iYEAM15..(H,M)..CND;XEAM10,YEAM15..H..USA202203-202209

BLACK,TRIM2#

sub73210-42491¥23,800

main73210-42490-C0iYEAM15..(H,M)..CND;XEAM10,YEAM15..H..USA202203-202209

BLACK,TRIM1#,2#

sub73210-42491¥23,800

main73210-42491iYEAM15..H..CND¥23,800202210-202303

main73210-42491-C0iYEAM15..M..CND;XEAM10,YEAM15..H202210-202411

BLACK,TRIM1#,2#

main73210-42491-C0iYEAM15..M..CND;XEAM10,YEAM15..H202210-202411

BLACK,TRIM2#

73214PLATE, FRONT SEAT BELT ANCHOR

main73214-75010iXEAM10,YEAM15¥170202203-202411

73219STOPPER, TONGUE PLATE

main73219-02010iXEAM10,YEAM15¥80202203-202411

BLACK

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-47221-C7iYEAM15..(H,M)..CND;XEAM10,YEAM15..H..USA202203-202209

BLACK,TRIM1#,2#

sub73220-47221¥31,500

sub73220-47222¥26,200

main73220-47221-C7iXEAM10..E,L,M;YEAM15..L..CND;YEAM15..(L,M)..USA202203-202209

BLACK,TRIM2#

sub73220-47221¥31,500

sub73220-47222¥26,200

main73220-47222iYEAM15..H..CND¥26,200202210-202303

main73220-47222-C7iYEAM15..M..CND;XEAM10,YEAM15..H..USA202210-202411

BLACK/BLACK,TRIM2#

main73220-47222-C7iYEAM15..L;XEAM10..E,L,M;YEAM15..M..USA202210-202411

BLACK/BLACK,TRIM1#,2#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-33710-C0iXEAM10..H;YEAM15..(H,M)..USA202203-202411

BLACK,TRIM1#,2#

main73230-33710-C0iXEAM10..H;YEAM15..(H,M)..USA202203-202411

BLACK,TRIM2#

73233COVER, LAP BELT OUTER ANCHOR

main73233-60020-C1iYEAM15..(H,M)..CND;XEAM10,YEAM15..H..USA202203-202411

BLACK,TRIM2#

sub73233-60020¥500

sub73233-35010¥620

main73233-60020-C1iYEAM15..L;XEAM10..E,L,M;YEAM15..M..USA202203-202411

BLACK,TRIM1#,2#

sub73233-60020¥500

sub73233-35010¥620

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-33870-C0iYEAM15..M..USA202311-202411

BLACK,TRIM2#

main73230-33870-C0iXEAM10..M202203-202411

BLACK,TRIM1#,2#

main73230-33870-C0iXEAM10..H;YEAM15..(H,M)..USA202203-202411

FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT,BLACK,TRIM1#,2#

main73230-33880-C0iXEAM10..E,L;YEAM15..L..USA;YEAM15..(L,M)..CND202203-202411

BLACK,TRIM2#

9010510611

main90105-10611¥100

9010911059

main90109-11059¥240

9017811002

main90178-11002¥100

9017911010

main90179-11010¥110

9155380612

main91553-80612¥60

15 parts on this diagram · 2 diagrams in section
