E
EPC Data

FRONT SEAT & SEAT TRACK

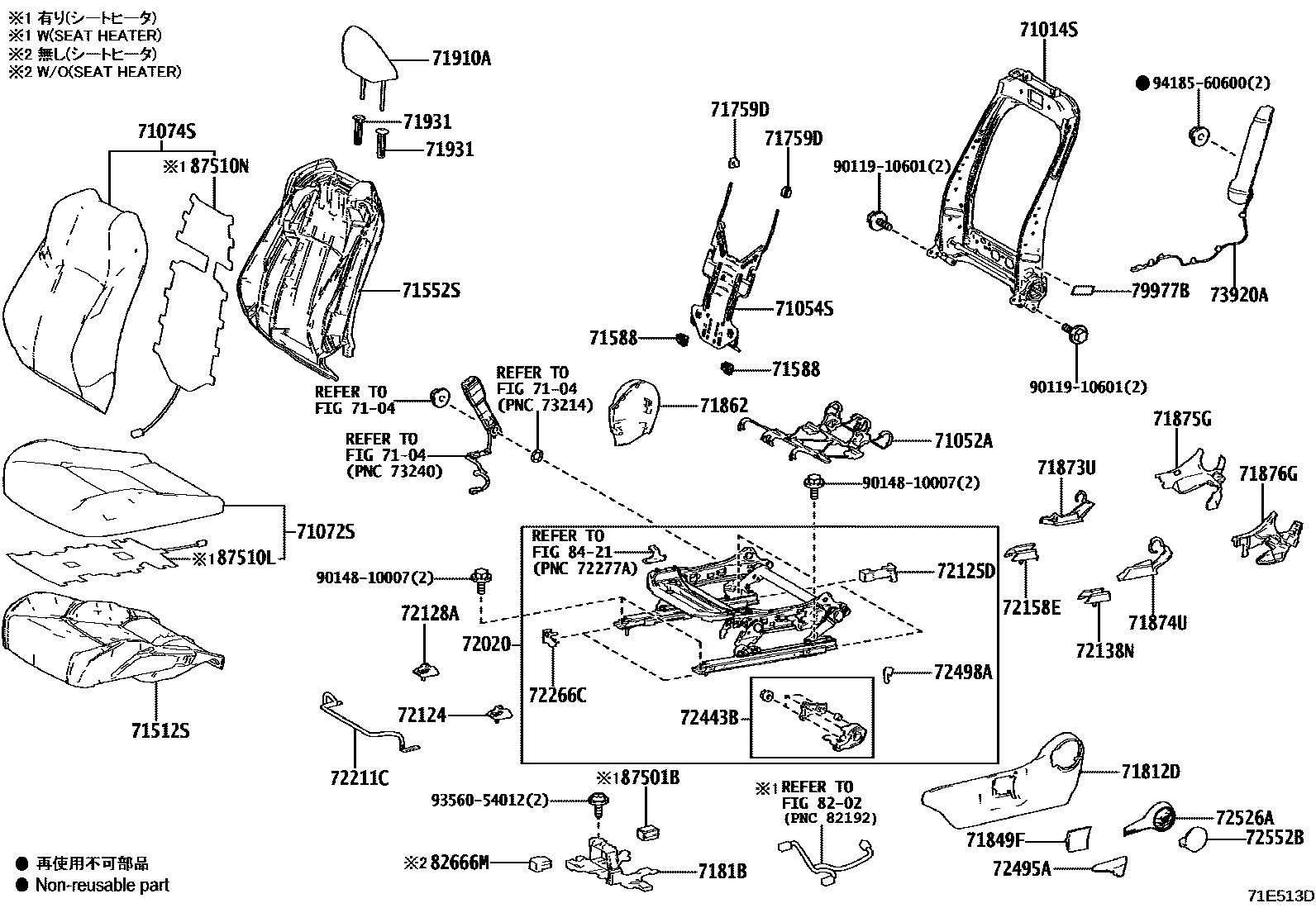

Parts diagram
71014SFRAME SUB-ASSY, FRONT SEATBACK, LH
main71014-30D20i¥30,300202203-202311
TEC. PACKAGE&DOOR TRIM-WITH (PLATING),ILLUMI&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT&SEAT HEATER-WITH(*DRP(RADIATION) & REAR SEAT)
main71014-30D20i¥30,300202203-202311
TEC. PACKAGE&DOOR TRIM-WITH (PLATING),ILLUMI&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT)
main71014-42280i¥15,500202203-202411
main71014-42350i¥30,300202311-202411
TEC. PACKAGE&DOOR TRIM-PAINT & KNOB PLATING & ILLUMINATION&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT)
main71014-42350i¥30,300202311-202411
TEC. PACKAGE&DOOR TRIM-PAINT & KNOB PLATING & ILLUMINATION&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT&SEAT HEATER-WITH(*DRP(RADIATION) & REAR SEAT)
main71014-42350i¥30,300202412
NIGHT SHADE PACKAGE&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT
7104
71052ASPRING SUB-ASSY, FRONT SEAT CUSHION, LH
main71051-47090i¥4,110202203-202411
71054SSPRING SUB-ASSY, FRONT SEATBACK, LH
main71053-47050i¥5,200202203-202411
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
main71072-42E50-C0i202203-202411
BLACK,TRIM2#
main71072-42E60-C0i202203-202411
BLACK,TRIM2#
main71072-42E70-C0i202203-202411
SEAT HEATER-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK,TRIM2#
main71072-42E70-C0i202203-202411
SEAT HEATER-WITH(DRIVER & PASSENGER(RADIATION)),BLACK,TRIM2#
main71072-42E70-C0i202203-202411
BLACK,TRIM2#
main71072-42F20-B0i202203-202411
LT.GRAY,TRIM1#
main71072-42F20-B0i202412
TEC. PACKAGE&DOOR TRIM-PAINT & KNOB PLATING & ILLUMINATION&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT&SEAT HEATER-WITH(*DRP(RADIATION) & REAR SEAT),LT.GRAY
main71072-42F20-B0i202412
TEC. PACKAGE&DOOR TRIM-PAINT & KNOB PLATING & ILLUMINATION&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT),LT.G
main71072-42F20-C0i202412
TEC. PACKAGE&DOOR TRIM-PAINT & KNOB PLATING & ILLUMINATION&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT),BLAC
main71072-42F20-C0i202203-202411
BLACK,TRIM2#
main71072-42F20-C0i202412
TEC. PACKAGE&DOOR TRIM-PAINT & KNOB PLATING & ILLUMINATION&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT&SEAT HEATER-WITH(*DRP(RADIATION) & REAR SEAT),BLACK,T
main71072-42G30-C0i202203-202411
BLACK,TRIM2#
main71072-42J70-C0i202311-202411
BLACK/MD.GRAY,TRIM2#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71074-42D80-C0i202203-202411
BLACK,TRIM2#
main71074-42D90-C0i202203-202411
BLACK,TRIM2#
main71074-42E20-C0i202203-202411
SEAT HEATER-WITH(DRIVER & PASSENGER(RADIATION)),BLACK,TRIM2#
main71074-42E20-C0i202412
BLACK,TRIM20
main71074-42E20-C0i202412
SEAT HEATER-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK,TRIM20
main71074-42E20-C0i202203-202411
SEAT HEATER-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK,TRIM2#
main71074-42E20-C0i202412
SEAT HEATER-WITH(DRIVER & PASSENGER(RADIATION)),BLACK,TRIM20
main71074-42E20-C0i202203-202411
BLACK,TRIM2#
main71074-42E20-C1i202412
BLACK/RED,TRIM20
main71074-42E20-C1i202412
SEAT HEATER-WITH(DRIVER & PASSENGER(RADIATION)),BLACK/RED,TRIM20
main71074-42E20-C1i202412
SEAT HEATER-WITH(DRIVER SEAT & PASSENGER SEAT),BLACK/RED,TRIM20
main71074-42F10-C0i202203-202411
BLACK,TRIM2#
main71074-42F50-B1i202203-202411
LT.GRAY,TRIM1#
main71074-42F50-B1i202412
TEC. PACKAGE&DOOR TRIM-PAINT & KNOB PLATING & ILLUMINATION&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT&SEAT HEATER-WITH(*DRP(RADIATION) & REAR SEAT),LT.GRAY
main71074-42F50-B1i202412
TEC. PACKAGE&DOOR TRIM-PAINT & KNOB PLATING & ILLUMINATION&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT),LT.G
main71074-42F50-C0i202412
TEC. PACKAGE&DOOR TRIM-PAINT & KNOB PLATING & ILLUMINATION&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT),BLAC
main71074-42F50-C0i202412
TEC. PACKAGE&DOOR TRIM-PAINT & KNOB PLATING & ILLUMINATION&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT&SEAT HEATER-WITH(*DRP(RADIATION) & REAR SEAT),BLACK,T
main71074-42F50-C0i202203-202411
BLACK,TRIM2#
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71512-12470i¥9,000202203-202411
main71512-12530i¥9,000202311-202411
main71512-12530i¥9,000202412
NIGHT SHADE PACKAGE&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT
main71512-42280i¥9,000202412
TEC. PACKAGE&DOOR TRIM-PAINT & KNOB PLATING & ILLUMINATION&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT&SEAT HEATER-WITH(*DRP(RADIATION) & REAR SEAT)
main71512-42280i¥9,000202412
TEC. PACKAGE&DOOR TRIM-PAINT & KNOB PLATING & ILLUMINATION&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT)
main71512-42280i¥9,000202203-202411
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
main71552-48260i¥9,000202203-202411
main71552-48270i¥10,000202412
TEC. PACKAGE&DOOR TRIM-PAINT & KNOB PLATING & ILLUMINATION&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT&SEAT HEATER-WITH(*DRP(RADIATION) & REAR SEAT)
main71552-48270i¥10,000202412
TEC. PACKAGE&DOOR TRIM-PAINT & KNOB PLATING & ILLUMINATION&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT)
main71552-48270i¥10,000202203-202411
71588PROTECTOR, FRONT SEATBACK EDGE, NO.2
main71587-47010i¥200202203-202411
71759DHOOK, FRONT SEATBACK, NO.2
main71759-50040i¥130202203-202411
71812DSHIELD, FRONT SEAT CUSHION, LH
main71812-33400-C0i202203-202411
BLACK,TRIM1#,2#
main71812-33400-C0i202311-202411
TEC. PACKAGE&DOOR TRIM-PAINT & KNOB PLATING & ILLUMINATION&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT),BLAC
main71812-33400-C0i202311-202411
TEC. PACKAGE&DOOR TRIM-PAINT & KNOB PLATING & ILLUMINATION&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT&SEAT HEATER-WITH(*DRP(RADIATION) & REAR SEAT),BLACK,T
main71812-33400-C0i202412
NIGHT SHADE PACKAGE&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT,BLACK,TRIM1#,2#
main71812-33400-C0i202311-202411
BLACK,TRIM2#
main71812-47130-C1i202203-202411
BLACK,TRIM2#
sub71812-47130¥2,330
7181BHOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH
main7181B-33010i¥3,040202311-202411
TEC. PACKAGE&DOOR TRIM-PAINT & KNOB PLATING & ILLUMINATION&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT)
main7181B-33010i¥3,040202311-202411
TEC. PACKAGE&DOOR TRIM-PAINT & KNOB PLATING & ILLUMINATION&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT&SEAT HEATER-WITH(*DRP(RADIATION) & REAR SEAT)
main7181B-33010i¥3,040202412
NIGHT SHADE PACKAGE&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT
main7181B-33010i¥3,040202203-202411
main7181B-47010i¥1,220202203-202411
71849FCAP, SEAT ADJUSTER COVER, LH(FOR LH SEAT)
main71849-12020-C0i202309-202411
BLACK,TRIM2#
main71849-47010-C1i202203-202311
BLACK,TRIM2#
sub71849-47010¥370
71862SHIELD, FRONT SEAT CUSHION, INNER LH
main71862-47090-C1i202203-202411
BLACK,TRIM1#,2#
sub71862-47090¥1,090
main71862-47090-C1i202203-202411
BLACK,TRIM2#
sub71862-47090¥1,090
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
main71873-47070i¥740202203-202411
71873USHIELD, FRONT SEAT CUSHION, LOWER RH
main71874-42080i¥920202203-202411
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
main71873-42090i¥740202203-202411
71874USHIELD, FRONT SEAT CUSHION, LOWER LH
main71874-47070i¥740202203-202411
71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
main71876-42100-C0i202203-202411
BLACK,TRIM1#,2#
main71876-42100-C0i202203-202411
BLACK,TRIM2#
71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
main71876-30230-C0i202203-202411
BLACK,TRIM2#
main71876-30230-C0i202203-202411
BLACK,TRIM1#,2#
71910AHEADREST ASSY, FRONT SEAT
main71910-42590-C0i202203-202411
BLACK,TRIM2#
main71910-42600-B3i202412
SEAT HEATER-WITH(DRIVER SEAT & PASSENGER SEAT),LT.GRAY,TRIM1#
main71910-42600-B3i202412
SEAT HEATER-WITH(DRIVER & PASSENGER(RADIATION)),LT.GRAY,TRIM1#
main71910-42600-B3i202203-202411
LT.GRAY,TRIM1#
main71910-42600-C1i202203-202411
BLACK,TRIM2#
main71910-42600-C1i202412
BLACK,TRIM20
main71910-42600-C2i202412
BALCK/RED,TRIM20
71931SUPPORT, FRONT SEAT HEADREST
main71930-47050-B8i202203-202411
W(LOCK),LT.GRAY,TRIM1#
main71930-47050-B8i202412
W(LOCK),SEAT HEATER-WITH(DRIVER SEAT & PASSENGER SEAT),LT.GRAY,TRIM1#
main71930-47050-B8i202412
W(LOCK),SEAT HEATER-WITH(DRIVER & PASSENGER(RADIATION)),LT.GRAY,TRIM1#
main71930-47050-C5i202203-202411
W(LOCK),BLACK,TRIM2#
main71931-47030-B9i202203-202411
W/O(LOCK),LT.GRAY,TRIM1#
main71931-47030-B9i202412
W/O(LOCK),SEAT HEATER-WITH(DRIVER SEAT & PASSENGER SEAT),LT.GRAY,TRIM1#
main71931-47030-B9i202412
W/O(LOCK),SEAT HEATER-WITH(DRIVER & PASSENGER(RADIATION)),LT.GRAY,TRIM1#
main71931-47030-C4i202203-202411
W/O(LOCK),BLACK,TRIM2#
72020ADJUSTER ASSY, FRONT SEAT, LH
main72020-42410i¥27,900202203-202411
main72020-42440i202203-202311
TEC. PACKAGE&DOOR TRIM-WITH (PLATING),ILLUMI&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT)
main72020-42440i202203-202311
TEC. PACKAGE&DOOR TRIM-WITH (PLATING),ILLUMI&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT&SEAT HEATER-WITH(*DRP(RADIATION) & REAR SEAT)
main72020-42480i202412
NIGHT SHADE PACKAGE&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT
main72020-42480i202311-202411
TEC. PACKAGE&DOOR TRIM-PAINT & KNOB PLATING & ILLUMINATION&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT)
main72020-42480i202311-202411
TEC. PACKAGE&DOOR TRIM-PAINT & KNOB PLATING & ILLUMINATION&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT&SEAT HEATER-WITH(*DRP(RADIATION) & REAR SEAT)
72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH
main72123-10100i¥340202203-202411
72125DCOVER, SEAT TRACK, UPPER REAR NO.2
main72125-47010i¥450202203-202411
main72125-47020i¥160202311-202411
TEC. PACKAGE&DOOR TRIM-PAINT & KNOB PLATING & ILLUMINATION&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT)
sub72125-47010¥450
main72125-47020i¥160202412
NIGHT SHADE PACKAGE&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT
sub72125-47010¥450
main72125-47020i¥160202311-202411
TEC. PACKAGE&DOOR TRIM-PAINT & KNOB PLATING & ILLUMINATION&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT&SEAT HEATER-WITH(*DRP(RADIATION) & REAR SEAT)
sub72125-47010¥450
main72125-47020i¥160202203-202411
sub72125-47010¥450
72128ACOVER, SEAT TRACK BRACKET, INNER FRONT LH
main72123-10100i¥340202203-202411
72138NCOVER, SEAT TRACK BRACKET, OUTER REAR LH
main72137-47060i¥430202203-202411
72158ECOVER, SEAT TRACK BRACKET, INNER REAR LH
main72158-10040i¥540202203-202411
72211HANDLE, SEAT TRACK ADJUSTING
main72211-47050i¥990202203-202411
72211CHANDLE, SEAT TRACK ADJUSTING
main72211-47050i¥990202203-202411
72266CCOVER, SEAT TRACK UPPER RAIL, LH
main72265-47010i¥160202203-202411
main72265-47020i¥160202311-202411
TEC. PACKAGE&DOOR TRIM-PAINT & KNOB PLATING & ILLUMINATION&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT)
main72265-47020i¥160202311-202411
TEC. PACKAGE&DOOR TRIM-PAINT & KNOB PLATING & ILLUMINATION&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT&SEAT HEATER-WITH(*DRP(RADIATION) & REAR SEAT)
main72265-47020i¥160202412
NIGHT SHADE PACKAGE&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT
main72265-47020i¥160202203-202411
72443BGEAR, VERTICAL ADJUSTER, LH
main72443-47021i¥7,300202203-202411
72495AHANDLE, FRONT SEAT VERTICAL ADJUSTER, LH
main72495-10010-C0i202203-202311
BLACK,TRIM2#
sub72495-16010¥590
main72495-16010-C0i202309-202411
BLACK,TRIM2#
72498ACOVER, VERTICAL ADJUSTER BRACKET, LH
main72498-47020i¥90202203-202411
72526AHANDLE, RECLINING ADJUSTER RELEASE, LH
main72526-10060-C0i202203-202411
BLACK,TRIM2#
72552BCOVER, RECLINING HINGE, LH
main72551-33010-C0i202203-202411
BLACK,TRIM1#,2#
main72551-33010-C0i202203-202411
BLACK,TRIM2#
73920AAIRBAG ASSY, FRONT SEAT, LH
main73920-42080i¥20,000202203-202411
79977BFELT, SEATBACK FRAME
main79977-12090i¥540202412
NIGHT SHADE PACKAGE&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT
main79977-12090i¥540202311-202411
TEC. PACKAGE&DOOR TRIM-PAINT & KNOB PLATING & ILLUMINATION&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT)
main79977-12090i¥540202311-202411
TEC. PACKAGE&DOOR TRIM-PAINT & KNOB PLATING & ILLUMINATION&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT&SEAT HEATER-WITH(*DRP(RADIATION) & REAR SEAT)
main79977-12090i¥540202203-202311
TEC. PACKAGE&DOOR TRIM-WITH (PLATING),ILLUMI&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT&SEAT HEATER-WITH(DRIVER & PASSENGER & REAR SEAT)
main79977-12090i¥540202203-202311
TEC. PACKAGE&DOOR TRIM-WITH (PLATING),ILLUMI&FRONT SEAT SLIDE-*DRS:POWER SEAT & *PAS:MANUAL SEAT&SEAT HEATER-WITH(*DRP(RADIATION) & REAR SEAT)
main79977-12090i¥540202203-202411
8202
82666MHOLDER, CONNECTOR
main90980-12373i¥260202203-202411
8421
87501BCONTROL SUB-ASSY, SEAT HEATER, LH
main87501-33010i¥4,330202203-202411
SEAT HEATER-WITH(DRIVER SEAT & PASSENGER SEAT)
main87501-33010i¥4,330202203-202411
SEAT HEATER-WITH(DRIVER & PASSENGER(RADIATION))
87510LHEATER ASSY, FRONT SEAT CUSHION, LH
main87510-42270i¥7,500202203-202411
SEAT HEATER-WITH(DRIVER SEAT & PASSENGER SEAT)
main87510-42270i¥7,500202203-202411
SEAT HEATER-WITH(DRIVER & PASSENGER(RADIATION))
87510NHEATER ASSY, FRONT SEATBACK, LH
main87530-42060i¥7,500202203-202411
SEAT HEATER-WITH(DRIVER SEAT & PASSENGER SEAT)
main87530-42060i¥7,500202203-202411
SEAT HEATER-WITH(DRIVER & PASSENGER(RADIATION))
9011910601
main90119-10601¥90
9014810007
main90148-10007¥60
9356054012
main93560-54012¥60
9418560600
main94185-60600¥70

48 parts on this diagram · 3 diagrams in section

FRONT SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
