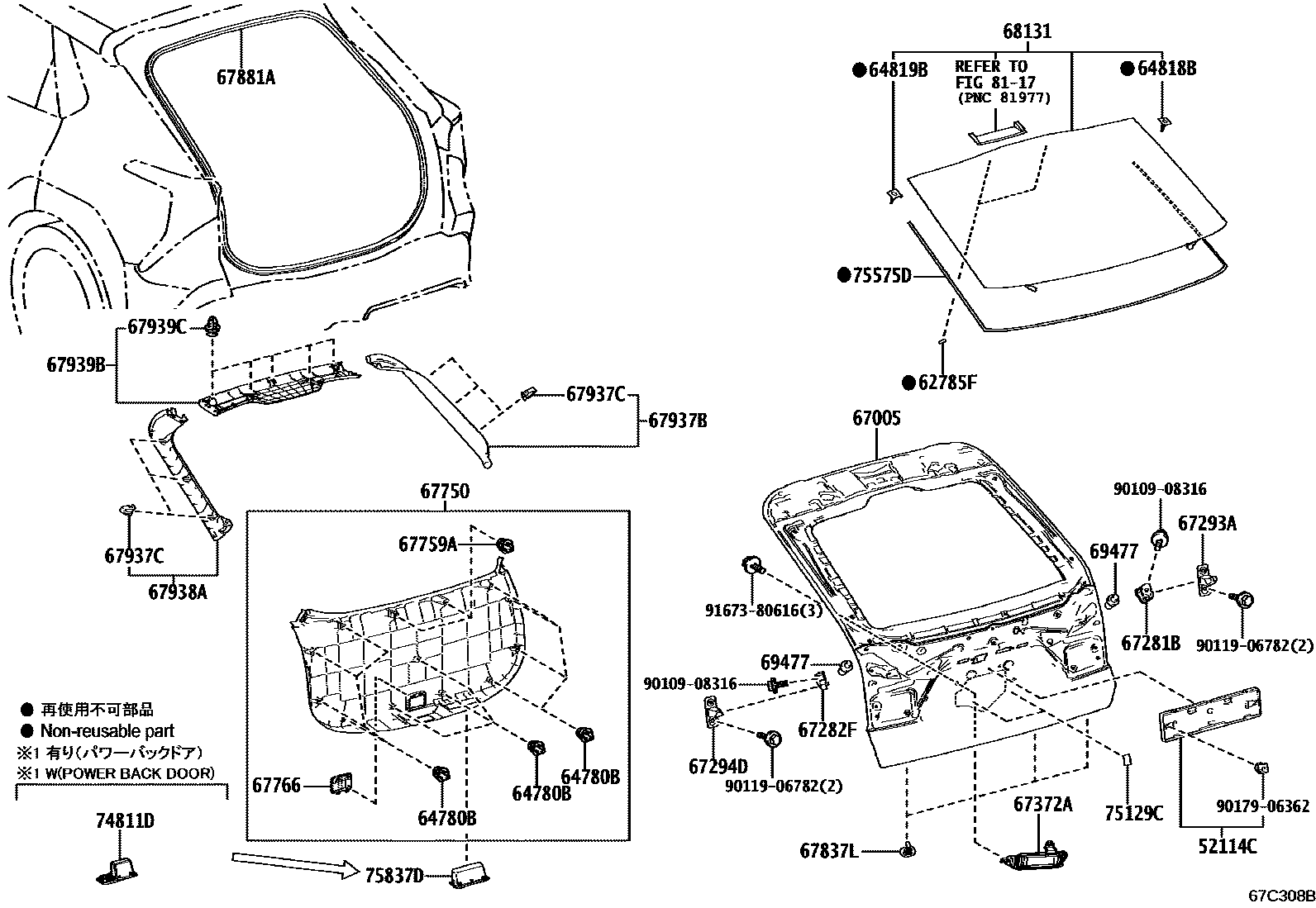

BACK DOOR PANEL & GLASS

52114CBRACKET, FRONT BUMPER EXTENSION MOUNTING

62785FSPACER, BACK DOOR GLASS

main62785-60030iXEAM10,YEAM15202203-202411

64780BCLIP(FOR BACK DOOR TRIM PANEL)

main90467-10161iXEAM10,YEAM15202203-202411

64818BSPACER, BACK DOOR GLASS, NO.1

main64818-42060iXEAM10,YEAM15202203-202411

64819BSPACER, BACK WINDOW GLASS, NO.2

main64819-42060iXEAM10,YEAM15202203-202411

67005PANEL SUB-ASSY, BACK DOOR

main67005-42750iXEAM10,YEAM15..M;XEAM10,YEAM15..L..CND202203-202411

main67005-42760iXEAM10,YEAM15..L..USA202203-202411

67281BSTOPPER, BACK DOOR, LOWER

main67281-42030iXEAM10,YEAM15202203-202411

67282FSTOPPER, BACK DOOR, LWR LH

main67282-42010iXEAM10,YEAM15202203-202411

67293ACUSHION, BACK DOOR STOPPER

main67293-42020iXEAM10,YEAM15202203-202411

67294DCUSHION, BACK DOOR STOPPER, LH

main67294-42020iXEAM10,YEAM15202203-202411

67372AWEIGHT, BACK DOOR

main67372-42040iXEAM10,YEAM15202203-202411

67750BOARD ASSY, BACK DOOR TRIM

main67750-42070-C0iYEAM15..L;XEAM10..E,L,M202203-202411

BLACK,TRIM1#,2#

main67750-42070-C0iYEAM15..L;XEAM10..E,L,M202203-202411

BLACK,TRIM2#

67759ACLIP(FOR BACK DOOR TRIM BOARD)

main90467-09245iXEAM10,YEAM15202203-202411

67766COVER, BACK DOOR SERVICE HOLE, NO.2

main67766-42030-C0iYEAM15..L;XEAM10..E,L,M202203-202411

BLACK,TRIM1#,2#

main67766-42030-C0iXEAM10..H;YEAM15..H,M202203-202411

BLACK,TRIM2#

67837LSEAL, DOOR DUST PROOF

main67837-30120iXEAM10,YEAM15202405-202411

main67837-52040iXEAM10,YEAM15202203-202404

67881AWEATHERSTRIP, BACK DOOR

main67881-42090iXEAM10,YEAM15202203-202411

67937BGARNISH, BACK DOOR SIDE, RH

main67937-42070-C0iYEAM15..L;XEAM10..E,L,M202203-202411

BLACK,TRIM1#,2#

main67937-42070-C0iYEAM15..L;XEAM10..E,L,M202203-202411

BLACK,TRIM2#

67937CCLIP(FOR BACK DOOR SIDE GARNISH)

main90467-09241iXEAM10,YEAM15202203-202411

67938AGARNISH, BACK DOOR SIDE, LH

main67938-42080-C0iYEAM15..L;XEAM10..E,L,M202203-202411

BLACK,TRIM2#

main67938-42080-C0iYEAM15..L;XEAM10..E,L,M202203-202411

BLACK,TRIM1#,2#

67939BGARNISH, BACK DOOR, CENTER

main67939-42070-C0iYEAM15..L;XEAM10..E,L,M202203-202411

BLACK,TRIM2#

main67939-42070-C0iYEAM15..L;XEAM10..E,L,M202203-202411

BLACK,TRIM1#,2#

67939CCLIP(FOR BACK DOOR CENTER GARNISH)

main90467-10161iXEAM10,YEAM15202203-202411

68131GLASS, BACK DOOR

main68105-42900iXEAM10,YEAM15202203-202411

69477CUSHION, BACK DOOR UPPER STOPPER

main68984-78010iXEAM10,YEAM15202203-202208

sub68984-78011

main68984-78011iXEAM10,YEAM15202209-202411

74811DHANDLE, DOOR PULL

main69291-78040-C1iXEAM10..H;YEAM15..H,M202203-202411

BLACK,TRIM1#,2#

sub69291-78040

main69291-78040-C1iXEAM10..H;YEAM15..H,M202203-202411

BLACK,TRIM2#

sub69291-78040

75129CCUSHION, REAR LICENCE PLATE

main75129-30010iXEAM10,YEAM15202203-202411

75575DMOULDING, BACK WINDOW, LOWER

main75575-42050iXEAM10,YEAM15202203-202411

75837DCOVER, BACK DOOR FINISH, RH

main75837-78010-C1iXEAM10..E;XEAM10,YEAM15..L..USA202203-202411

BLACK,TRIM2#

sub75837-78010

main75837-78010-C1iYEAM15..M..USA202203-202311

BLACK,TRIM1#,2#

sub75837-78010

8117

9010908316

main90109-08316

9011906782

main90119-06782

9017906362

main90179-06362

9167380616

main91673-80616

32 parts on this diagram · 1 diagram in section
