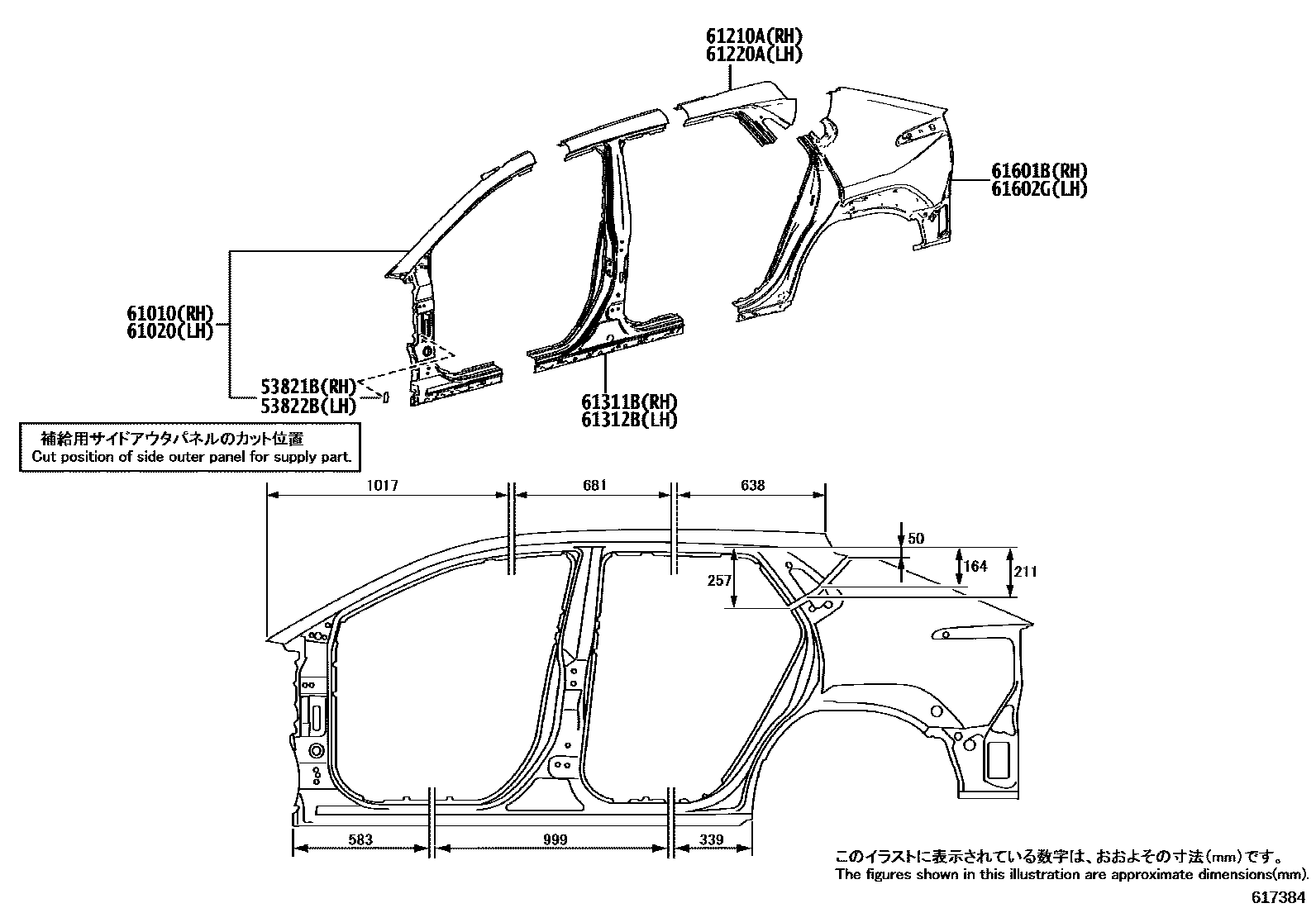

SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL, RH 0003 1INNER PANEL, LH

53821BBRACKET, FRONT FENDER, REAR RH

main53821-42050iXEAM10,YEAM15¥270202203-202411

53822BBRACKET, FRONT FENDER, REAR LH

main53821-42050iXEAM10,YEAM15¥270202203-202411

61010MEMBER ASSY, SIDE, RH

main61010-42030iXEAM10,YEAM15¥13,000202203-202411

61020MEMBER ASSY, SIDE, LH

main61020-42030iXEAM10,YEAM15¥13,000202203-202411

61210ARAIL ASSY, ROOF SIDE, RH

main61210-42030iXEAM10,YEAM15¥4,660202203-202411

61220ARAIL ASSY, ROOF SIDE, LH

main61220-42030iXEAM10,YEAM15¥4,660202203-202411

61311BPILLAR, CENTER BODY, OUTER RH

main61311-42070iXEAM10,YEAM15¥15,000202203-202411

61312BPILLAR, CENTER BODY, OUTER LH

main61312-42070iXEAM10,YEAM15¥15,000202203-202411

61601BPANEL SUB-ASSY, QUARTER, RH

main61601-42170iXEAM10,YEAM15..CND¥43,800202203-202411

main61601-42190iXEAM10,YEAM15..USA¥43,800202203-202411

61602GPANEL SUB-ASSY, QUARTER, LH

main61602-42160iXEAM10,YEAM15..CND¥43,800202203-202411

main61602-42180iXEAM10,YEAM15..USA¥43,800202203-202411

10 parts on this diagram · 3 diagrams in section
